SAILOR 500
Manufacturer: Cobham
Price:
$14,185.00
The selected item is out of stock, please select a different item or combination

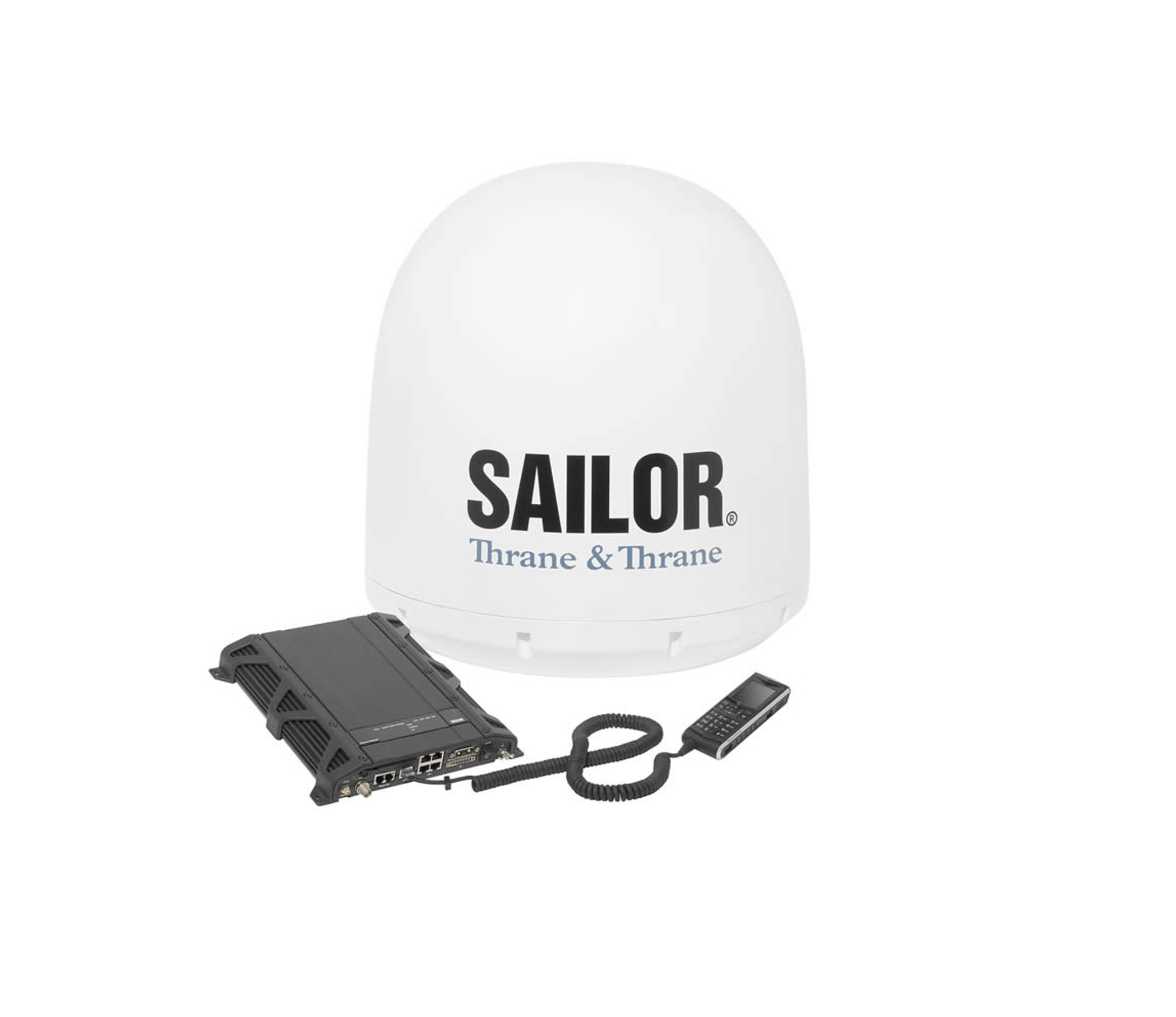

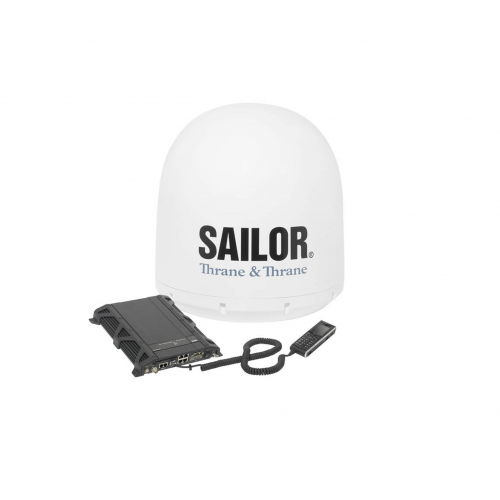

Sailor 500 FleetBroadband Terminal
The ultimate global broadband connectivity and voice solutionThe SAILOR 500 FleetBroadband is designed for vessels and platforms with demanding requirements for connectivity. It meets the critical needs for voice and data communication of maritime and offshore professionals globally but despite its power, is a compact, lightweight solution. It provides extensive functionality including full access to band width-hungry IP applications, broadband internet/intranet, e-mail, secure VPN and nine simultaneous voice lines.
High-end connectivity
With high-speed internet connectivity, running efficiency enhancing custom IP solutions in parallel with email, VPN and voice calling is all in a day’s work for SAILOR 500 FleetBroadband. It enables tracking and telemetry functionality, so colleagues on shore have all the information they need; real-time engine data for maintenance, drilling data for improving production or position data for fleet tracking and management. With SAILOR 500 FleetBroadband, you can also provide communication and internet access for crew, which is vital for ensuring an efficient workforce.
Professional & proven performance
SAILOR 500 FleetBroadband uses a fully stabilized 3-axis antenna with rate sensors for improved performance and fast, intelligent satellite tracking. It’s built to the world-renowned SAILOR standards, so you benefit from reliable, always available connectivity at all times, regardless of location and conditions.
Simple and secure installation
SAILOR 500 FleetBroadband is easy to deploy and getting connected is a straightforward, cost-effective process. The system is delivered with everything you need to get started in the box and because it is based on standard IP services and features a clear user interface, connecting your computer, corporate network, external sensors or phone system is simple and secure.
Multiple voice lines
With up to nine simultaneous voice lines possible using Inmarsat Multi-voice, an important part of the SAILOR 500 FleetBroadband solution is the Thrane IP Handset. This advanced plug-and-play handset provides an intuitive user inter face through a 2.2” TFT colour screen and features cutting-edge technology, such as a state-of-the-art echo cancellation and noise suppression software, for excellent audio clarity.
Communicate with confidence
SAILOR products are highly regarded by maritime professionals for their design and build quality, which results in excellent reliability. To support this, we guarantee fast and dependable service through our established network of On Board Service Centers (OSC). With OSC locations all around the world, service and support is always available, whenever and wherever it is needed.
Specifications
More Specs
Inmarsat FleetBroadband approved. Compliant to RTTE, CE Marked. Testet to FCC part 25
Manufacturer | Cobham SATCOM |
Size | Above-deck unit: Height: 79.75cm Diameter: 68.7cm Weight: 23kg Below-deck unit: Height: 27.3cm Width: 26.45cm Depth: 4.25cm Weight: 2.5kg |
Standard IP: | 432 kbps / 432 kbps |
Streaming IP: |
8, 16, 32, 64, 128, 256 kbps |
ISDN: | 64 kbps UDI / 56 56 kbps RDI |
Voice: | 4 kbps AMBE+2 |
Fax: | Group 3 (via 3.1 kHz audio) |
SMS: | Standard 3G (up to 160 characters) |
Interfaces: | RJ-11 (2) RJ-45 (4) Ethernet (PoE) L-Band connector Digital I/O DC power input |
Operational temp: |
-25 ºC to +55 ºC |
More Specs
Inmarsat FleetBroadband approved. Compliant to RTTE, CE Marked. Testet to FCC part 25
Frequency Band |
|
Rx | 1525.0 - 1559.0 MHz |
Tx | 1626.5 - 1660.5 MHz |
Ch. spacing | 10.5 - 189 kHz, Rx |
21 - 189 kHz, Tx |
Recommended Antenna Cable |
|
Cable loss max/min |
20 dB at 1,62 GHz and 1.0 Ω DC loop resistance |
3 dB at 36 MHz -4 dB at 54 MHz |
Power Supply and Consumption |
|
DC input range (isolated) | 10 to 32V DC |
Power (max), incl. antenna & PoE output |
150 W @ 10 - 32V |
Environmental Conditions |
|
Ambient Temperature | -25 to +55°C |
ADU Storage | -40 to +85°C |
Survival (power on, non functional) | -40 to +80°C |
Automatic thermal surveillance shuts down terminal gradually at | +85˚C PCB temperature |
ADU enclosure | IPX6 |
ADU operating humidity | “Exposed” according to EN60 945 |
BDU enclosure | IP31 |
BDU operating humidity | 95% non-condensing at +40˚C |
Icing (survival) | Max 25 mm |
Vibration (ADU) | |
Vibration, operational | Random spectrum 1.05 g rms x 3 axes: 5 to 20 Hz: 0.02 g2/Hz 20 to 150 Hz: -3 dB/octave |
Vibration, non-operational (survival) |
Random spectrum 1.7 g rms 2 h x 3 axes (6 h total): 5 to 20 Hz: 0.05 g2/Hz, 20 to 150 Hz: -3 dB/octave |
Ship Motion | |
Roll | +/- 30 deg. per. 4 s, max. 0.7 g tan. |
Pitch | +/- 15 deg. per. 3 s, max. 0.6 g tan. |
Yaw | +/- 10 deg. per. 5 s, max. 0.3 g tan. |
Surge | +/- 0.5g |
Sway | +/- 0.5g |
Heave | +/- 0.7g |
Turning rate | +/- 36˚/s; Acc. 12˚/s² |
Headway speed | 22 m/s (42 knots) |
Wind | 100 knots |
Mechanical Shock |
20g/11 half-sine |
Antenna Conector | |
ADU | 50 Ω N, female |
BDU | TNC-socket, female |
