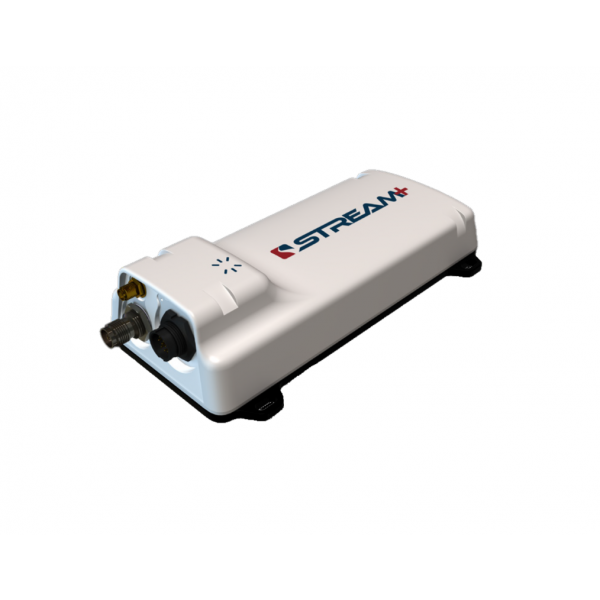

MetOcean STREAM+
Versatile, Reliable, Global.
STREAM+ allows end users to send and receive data via the Iridium® Satellite Constellation anywhere on the planet. It offers a range of industry-standard protocols, features, and inputs enabling end users with flexible integration and installation options. This versatility reduces development costs and overall time to market. Powered by the Iridium Certus® 100 midband service, the STREAM+ allows users to send and receive files and messages reaching a few megabytes securely, removing the need to worry about intermittent connectivity disruptions.
Enhanced Battery Life
- Integrated solutions requiring an IP based connection via satellite
Data Efficiency
- Allows applications to send larger data amounts in shorter periods of time
Better Data Management
- Reduces airtime cost
Thoughtful Design
- Designed for field applications with size, weight, and power constraints.
Iridium Certus® Ready;
- Simplified integration for Iridium Certus®
AWS-Ready
- Simplify data flow by transferring data to an Amazon Web Services (AWS) file management service
API via Supplied Ports
- API provided through serial port, power control & status lines
Industry Standard Interfaces
- Industry standard interfaces lower the overall development cost
STREAM+ Unit Only
Main Hardware
1 x STREAM+ Unit
STREAM+ Bare Board
Main Hardware
1 x STREAM+ Bare Board
STREAM+ Development Kit
Main Hardware
1 x STREAM+ Unit
1 x STREAM+ Dev Board
Antennas
1 x Iridium Antenna
1 x GNSS Antenna
Cables and Adapters
1 x 5m 10-Pin Power & Comms Cable
1 x 2m TNC-M to TNC-M LMR-200 Iridium Antenna Cable
1 x 4m SMA-M to TNC-M LMR-100 GNSS Antenna Cable
1 x 2m DB09 Serial Cable
1 x 1.83m Dev Board Cigarette Lighter Power Cable
1 x 1.83m Dev Board Barrel Power Cable
1 x 10cm Dev Board USB to Serial RS232 DB9 Cable
1 x AC/DC Wall Mount Adapter

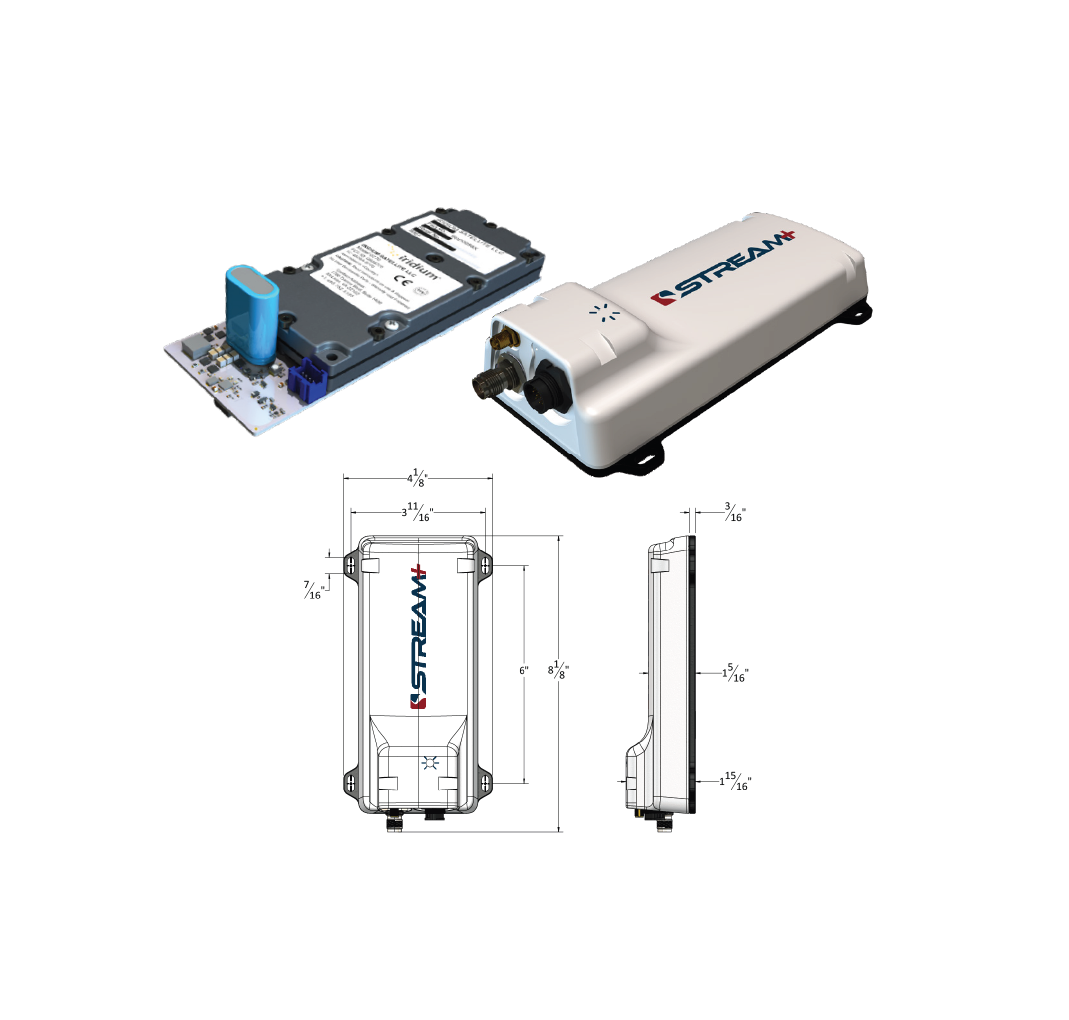

Mechanical
Dimensions (L x W x H)
205mm x 105mm x 48mm
Weight
620 g
Connector
10-Pin Panel Mount, Receptacle, Male Pins. Bayonette Lock Connector
Antennas
GPS (Female SMA Connector)
Iridium (Female TNC Connector)
Thermal
Integrated Aluminum Heat Sink
Pressure
Pressure Equalizing Gore Vent
Electrical Design
Power
10-40 V DC, 30 W Supply
Draining
Protected Open Drain Outputs
Indicator
LED Status Indicator
Pulse
Automotive Pulse Protected
Shutdown
Safe Shutdown (supercapacitor)
Standby Mode Current
20 mA, at 12 V
Shutdown Mode Current
4.5 uA, at 10-40 V
Transmit and Receive Power
10 W Max Avg, 30 W Max Peak
Durability Standard
MIL-STD 810F
Data Speed Uplink (UL)
22 Kbps
Data Speed Downlink (DL)
88 Kbps
Firmware Functionality
Firmware Capabiities
Bootloader
Serial Communication
Logging
GNSS
OTA Communication
IMT Support
Low Power Mode
Physical Product
uController
Controls file and message transfers
Drives the status lines
Provides a simple JSON API thru serial port
Power Contorl Lone
Allows an external controller to switch the device on/off
Status Lines
Message/File Inbox state
Message/File Outbox state
Hardware Interfacing
RS232 interface
RS485 interface (half-duplex)
Flash Memory
Extra storage for large file transfers
GNSS
GNSS - Support stand alone telemetry solutions
External active antenna
Open drain pulse per second
Iridium Antenna
External passive antenna
