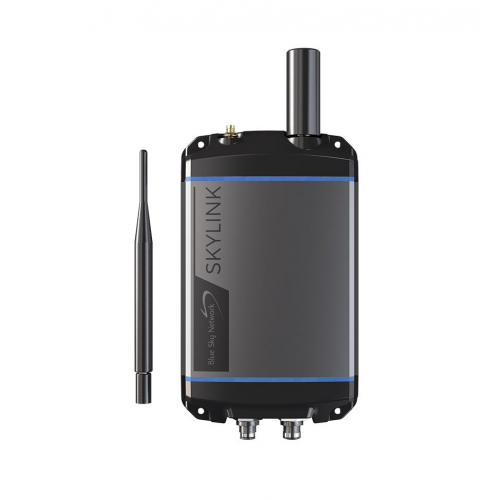

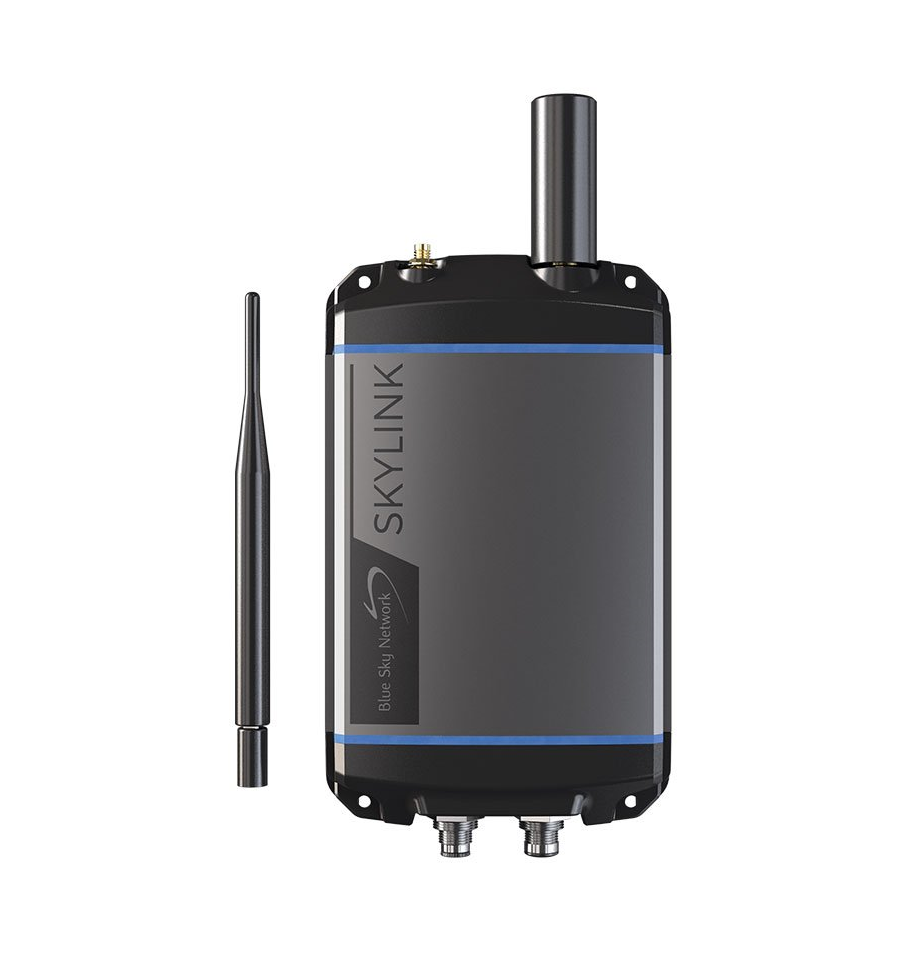

SkyLink

Global Voice and IP Data Solution
SkyLink delivers next-generation satellite connectivity to any location on the planet. This compact and versatile communications terminal is powered by the Iridium® network, providing enterprise-grade voice, remote monitoring, and data connection. SkyLink is designed for complete business efficiency, safety and continuity coverage. Its design allows for easy transfer real-time data from existing sensors, asset utilization and IoT/M2M monitoring tools. With SkyLink, achieve total connectivity for all assets, in every location, globally.
Key Features
Telemetry
- Record and transmit data from remote or inaccessible areas
Remote Monitoring
- Send critical hardware and site data to the command center
Internet/VPN
- Access the web, send email, and share media through secure networks.
Dual-mode Operation
- Automatic satellite and cellular operation with least-cost routing
HD Voice Lines
- Make calls on your smartphone via app
Local Dynamic Firewall
- Configureable, built-in firewall for cyber-secure connections

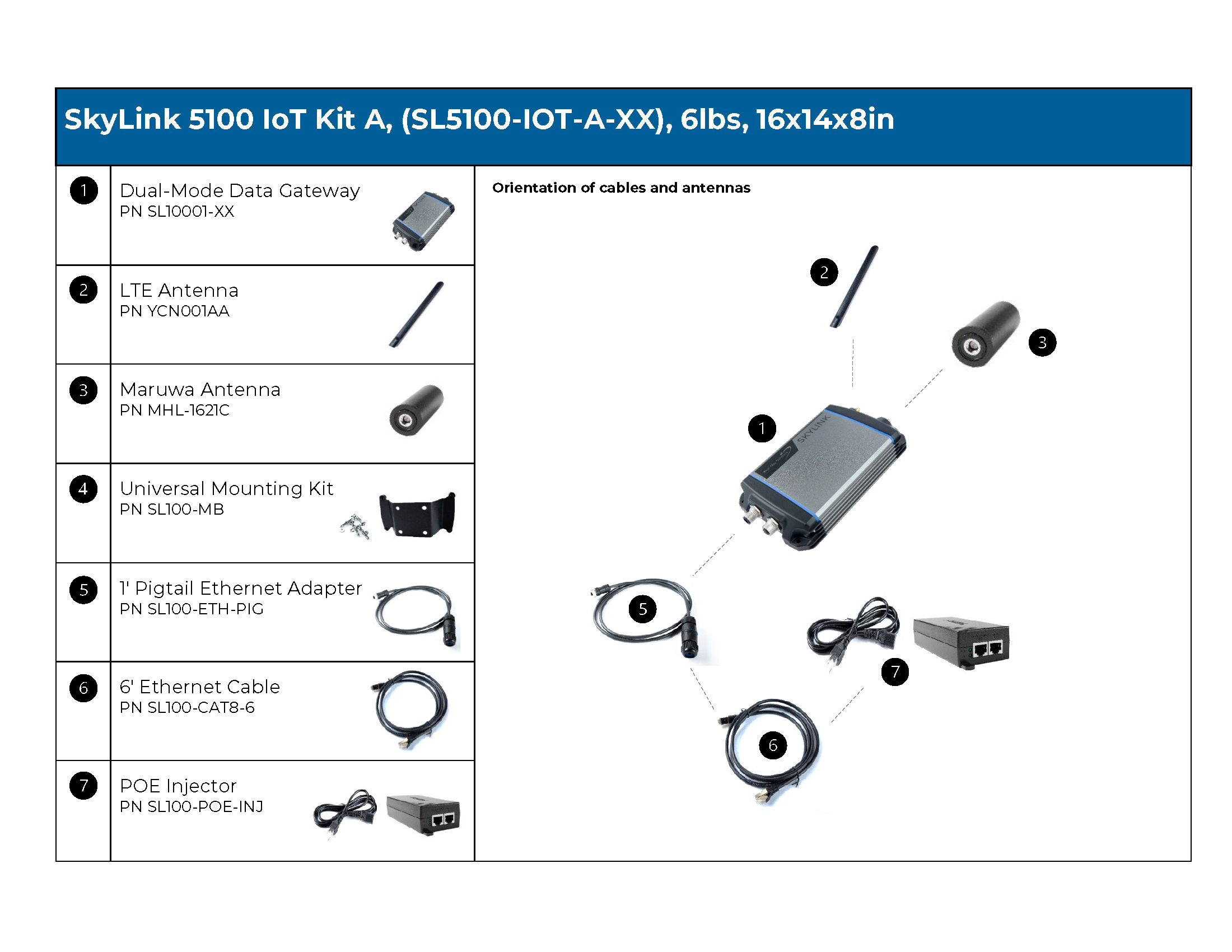

SkyLink 5100 IoT Kit A
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
MHL-1621C
Maruwa Antenna
SL100-MB
Universal Mounting Kit
SL100-ETH-PIG
1 ft Pigtail Ethernet Adapter
SL100-CAT8-6
6 ft Ethernet Cable
SL100-POE-INJ
POE Injector

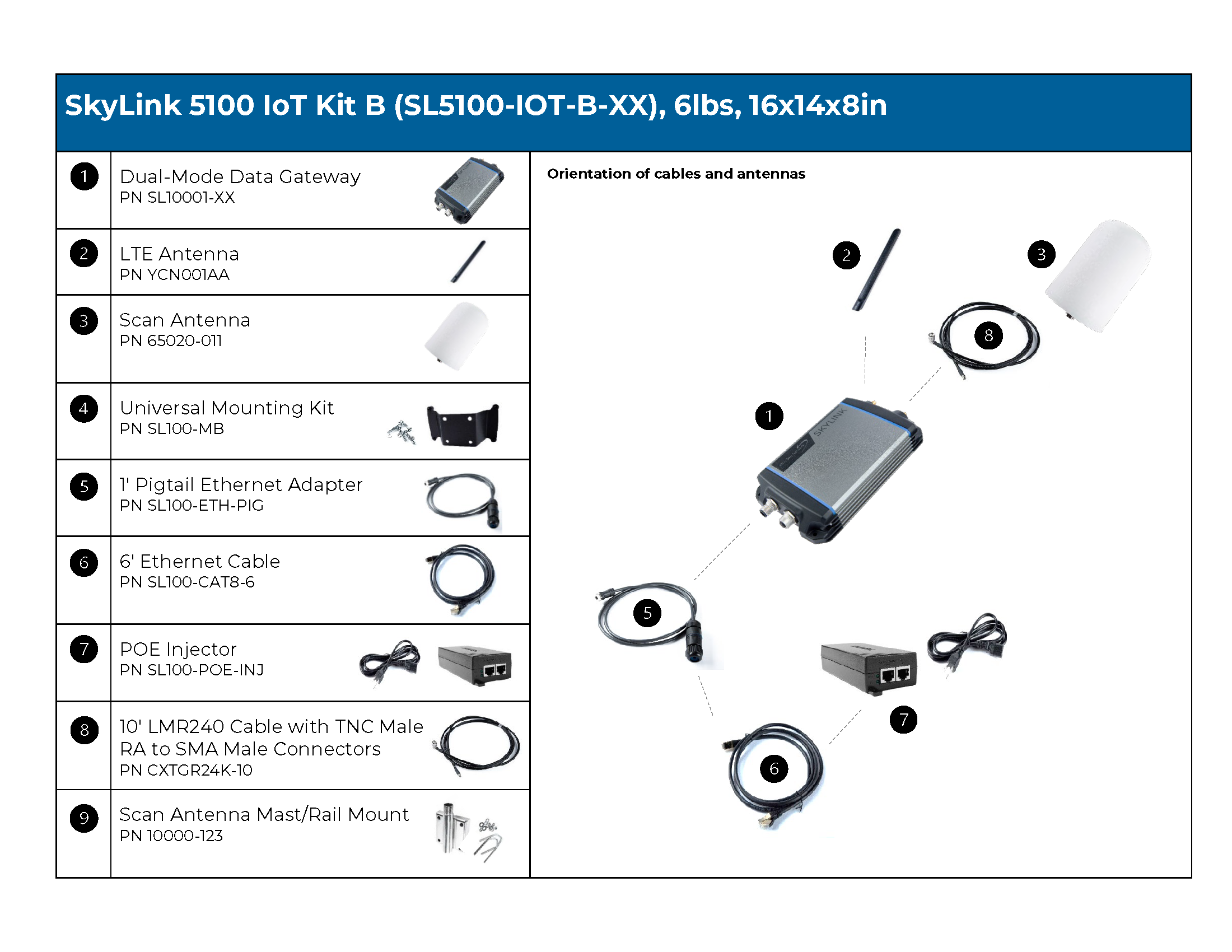

SkyLink 5100 IoT Kit B
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
65020-011
Scan Antenna
SL100-MB
Universal Mounting Kit
SL100-ETH-PIG
1 ft Pigtail Ethernet Adapter
SL100-CAT8-6
6 ft Ethernet Cable
SL100-POE-INJ
POE Injector
CXTGR24K-10
10 ft LMR240 Cable (TNC Male RA to SMA Male Connectors)
10000-123
Scan Antenna Mast/Rail Mount

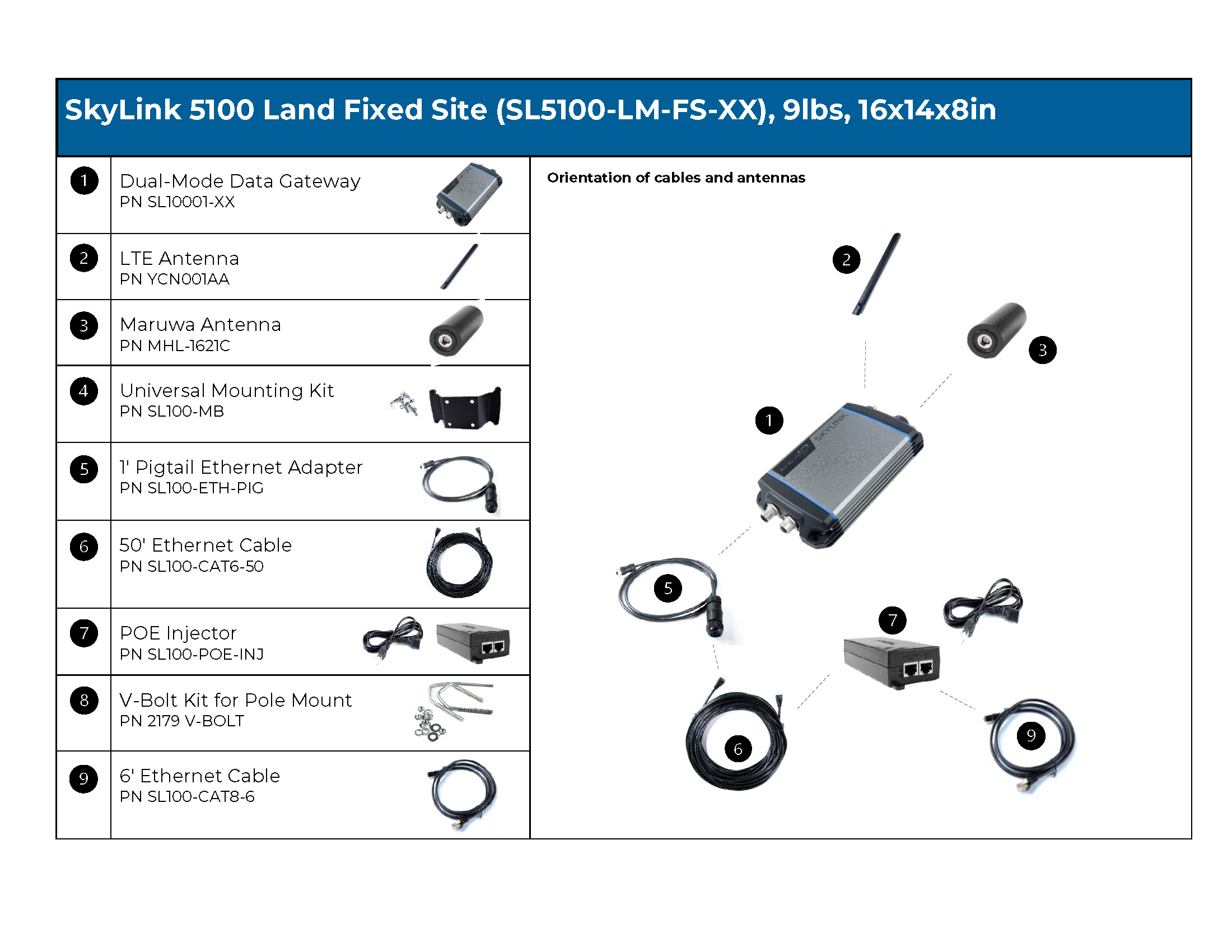

SkyLink 5100 Land Fixed-Site Kit A
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
MHL-1621C
Maruwa Antenna
SL100-MB
Universal Mounting Kit
SL100-ETH-PIG
1 ft Pigtail Ethernet Adapter
1SL100-CAT6-50
50 ft Ethernet Cable
SL100-POE-INJ
POE Injector
2179 V-Bolt
V-Bolt Kit for Pole Mount
SL100-CAT8-6
6 ft Ethernet Cable
SkyLink 5100 Land Fixed-Site Kit B
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
65020-011
Scan Antenna
SL100-MB
Universal Mounting Kit
CXTA24K-10
10 ft LMR240 Cable with N Male to SMA Male Connectors
SL100-IS-E
DC Pigtail Harness with Ethernet
10000-123
Scan Antenna Mast/Rail Mount

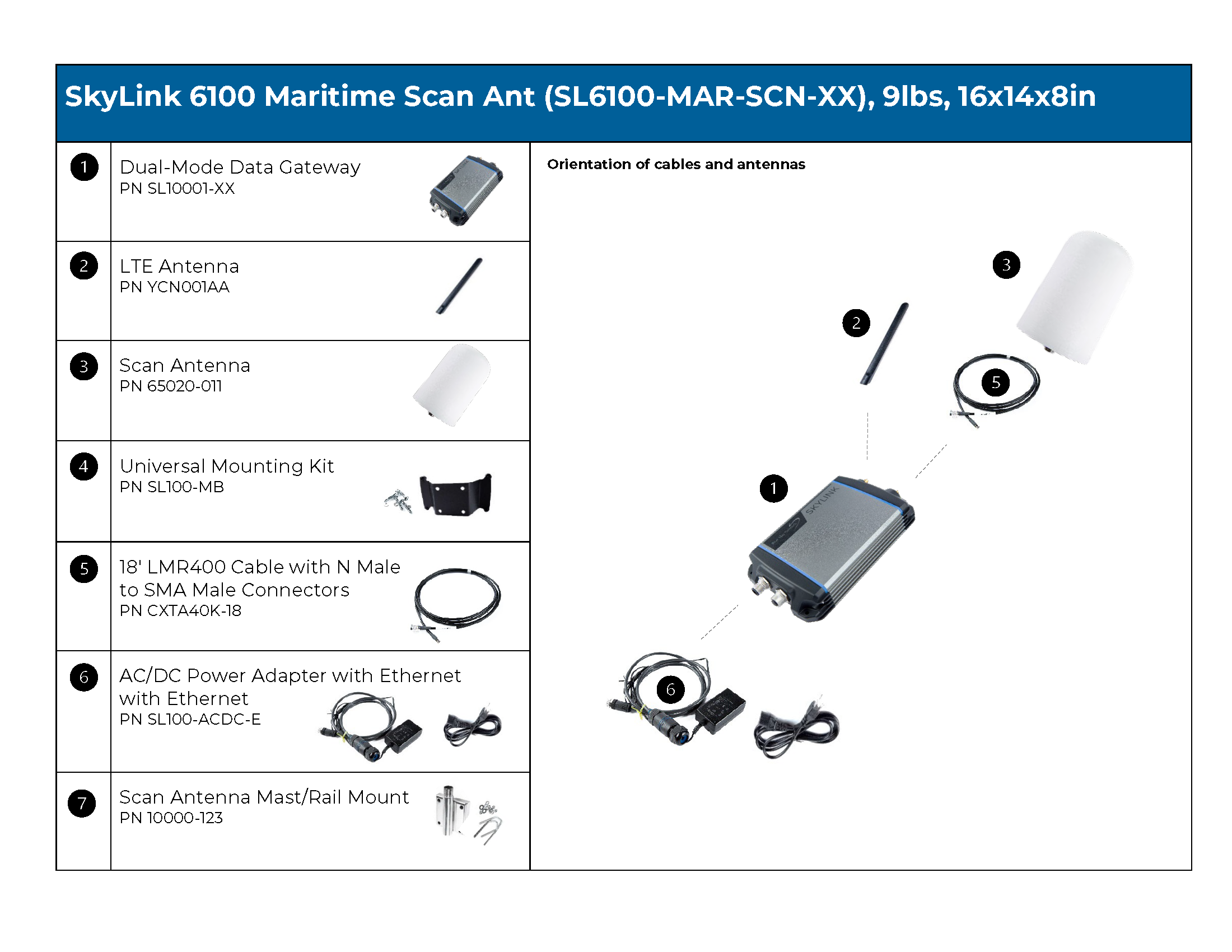

SkyLink 6100 Maritime Kit (Scan Antenna)
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
65020-011
Scan Antenna
SL100-MB
Universal Mounting Kit
CXTA40K-18
18 ft LMR400 Cable with N Male to SMA Male Connectors
SL100-ACDC-E
AC/DC Power Adapter with Ethernet
10000-123
Scan Antenna Mast/Rail Mount

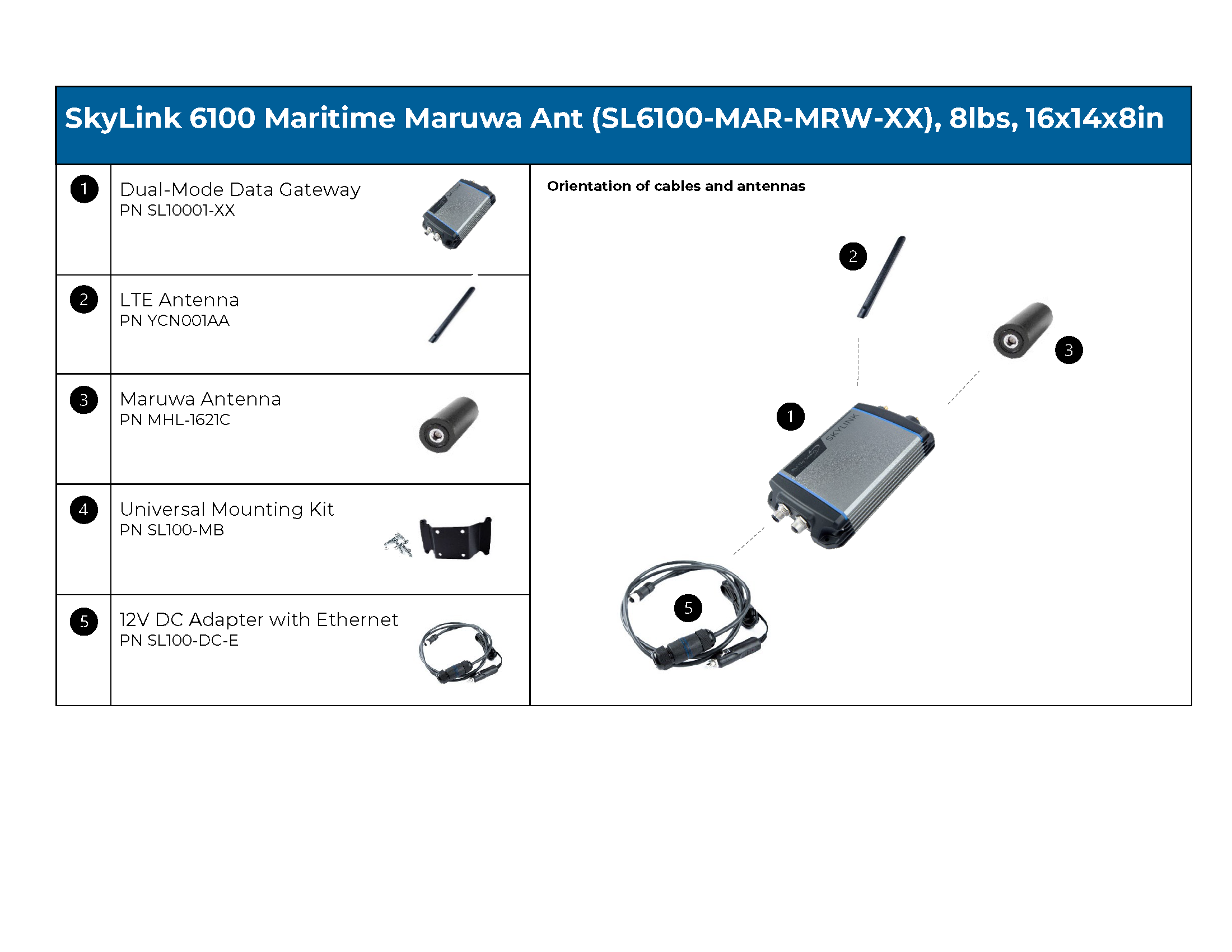

SkyLink 6100 Maritime Kit (Maruwa Antenna)
SL10001-XX
SkyLink 5100 Terminal
YCN001AA
LTE Antenna
MHL-1621C
Maruwa Antenna
SL100-MB
Universal Mounting Kit
SL100-DC-E
12V DC Adpater with Ethernet
Mechanical
Dimensions (H x L x W)
203mm x 127mm x 32mm
Weight
730 g
Iridium Embedded Technology
Iridium Certus 9770 Module
Environmental
Operating Temperature Range
-40 to +70 ℃
Operating Humidity Range
≥ 75% RH
Storage Temperature Range
-40 to +85 ℃
Storage Humidity Range
≥ 93% RH
Ingress Protection
IP65
Antenna
Antenna Design
LTE Antenna, Iridium Maruwa Antenna
Power
Input Voltage Range
10-34 VDC
Network
Additional Networks
3G/4G/Cellular LTE
Location Based Services
GNSS Positioning
Data & Streaming Speeds
Data Uplink (UL)
22 Kbps
Data Downlink (DL)
88 Kbps
Wi-Fi
Wi-Fi Enabled
Yes
User Experience
Mobility
Portable or Installed
