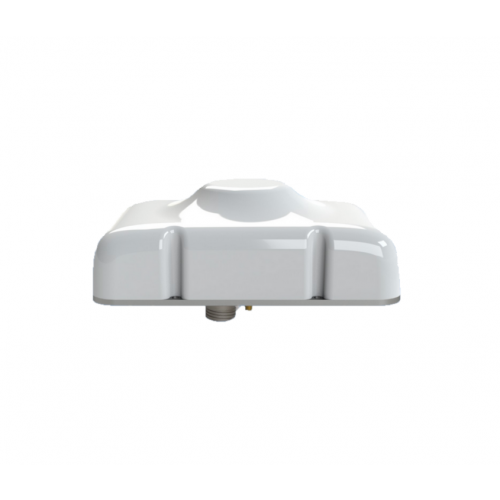

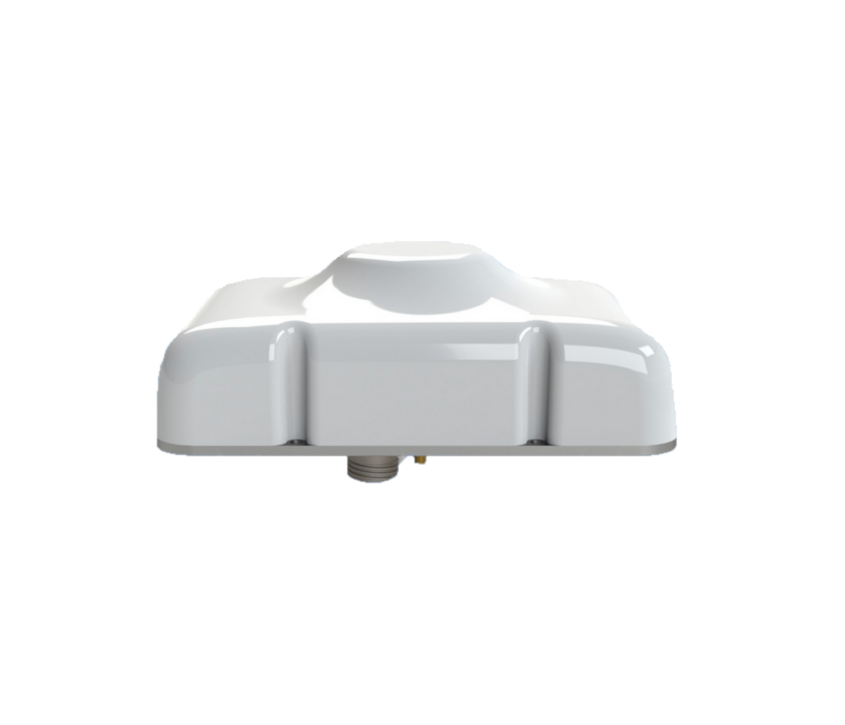

Guardian Mobility G6

Guardian Mobility G6
The G6 terminal utilizes a bi-directional mid-band 88kbps CST Modem for use with the Iridium Certus® Satellite network. It uses IP data protocol and has multiple interfaces, such as Wi-Fi to ensure simple application integration. The DO-160G and MilSpec design have made it the ideal solution for military applications that require critical data communication redundancy. The G6 provides an IP data platform for any aviation asset and guarantees connectivity anywhere in the world.
An all-in-one device with DO-160G Certification.
The G6 terminal utilizes a bi-directional mid-band 88kbps CST Modem for use with the Iridium Certus® Satellite network. It uses IP data protocol and has multiple interfaces, such as Wi-Fi to ensure simple application integration. The DO-160G and MilSpec design have made it the ideal solution for military applications that require critical data communication redundancy.
All-In-One Terminal
- CST Iridium Certus 100 modem with Iridium and GPS antenna incorporated—driven by powerful CPU with memory for custom scripts
Voice, PTT, VOIP, Video & Imagery
- Two HD voice channels are included and Guardian is developing PPT/VOIP/Video/Imagery services
88/88 Kbps IP Satellite Terminal
- This is a bi-directional 88 kbps terminal and 95% BW efficiency
Encryption
- AES192 commercial encryption is standard with the option of AES256 after first release.
Power Backup
- A high capacity capacitor provides limited but critical power backup to ensure power down message is sent
Third-Party Scripting Available
- Third parties can apply their own scripts to the terminal for customization

Mechanical
Dimensions (L x W x H)
226mm x 147mm x 81mm
Weight
2000 g
Iridium Embedded Technology
Iridium Certus 9770 Module
Environmental
Operating Temperature Range
-40 to +71 ℃
Storage Temperature Range
-40 to +85 ℃
Storage Humidity Range
95 @ +55C %RH
Durability Standard
RTCA/DO-160G/MIL-ST-704F
Ingress Protection
IP66
Vibration Standard
Category S & U2
Altitude
Up to 25,000 Feet
Fluid Susceptibility
Continuous spray of de-icing fluid
Salt Fog
48-hour continuous exposure
Sand and Dust Proof
+55 °C and ambient
Hardware
Antenna Design
Built in Iridium Certus and GPS
Sensors
Altimeter
3 Axis Accelerometer
3 Axis Gyro
3 Axis Magnetometer
Temperature
Connectors
D38999
13 Pin or 37 Pin Amphenol mil-spec Circular Connector
Interface
WiFi
RS232
2 x Ethernet
9 digital inputs
2 x digital outputs
5x analog inputs
analog audio I/O
ARNIC429
(Requires 37-pin connector
Power
Input Voltage Range
12-32 DVC Wide Range 2A
Network
Telephony
Satellite Voice, PTT, & VOIP
Streaming Data
56 kbps
Location Based Services
GNSS
Data Speeds
Data Speed Uplink (UL)
88 Kbps
Data Speed Downlink (DL)
88 Kbps
- Iridium Certification
- DO-160G Certified
