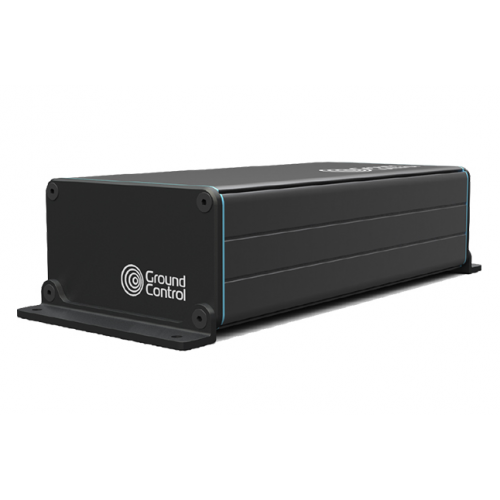

RockREMOTE Rugged
When the Grid Stops
RockREMOTE Rugged is the waterproof, reliable solution to your remote IoT challenges, keeping your data flowing even in the worst weather conditions, and with no reliance on cellular / fiber connectivity.
Securely connecting remote IoT assets using IP or message-based protocols, and providing diverse connectivity through Iridium Satellite or LTE networks, RockREMOTE is ideal for fixed or mobile environments anywhere in the world.
RockREMOTE strengthened for harsh environments.
RockREMOTE Rugged provides a flexible and reliable communications solution for truly remote Industrial and Utilities IoT applications. Easy connection of telemetry devices using a range of serial and digital interfaces, which help bridge the gap between serial and IP based communications.
Robust and Reliable Communications
- Offering a primary connection using the resilient, high quality Iridium Certus® satellite network combined with integrated LTE Cellular connectivity for failover
Beyond Communications
- Going beyond pure communications, RockREMOTE Rugged’s powerful integrated processing, storage and security enables the evolution towards Edge Computing
IP-67 Rated
- Designed for permanent outdoor installation in harsh environments
Remote Management
- Manage and monitor your device and delivery network with Cloudloop, providing real-time, data-driven insight
Easy Setup
- Combining small form factor, DIN rail mounting and omni directional antenna, with sleek and robust industrial design, RockREMOTE is specifically designed for ease of installation
Highly Secure
- Data security for critical infrastructure communication is paramount, RockREMOTE Rugged’s inbuilt hardware security module ensures that your data is safely secured whilst being transmitted over the network
Omni-Directional
- No antenna pointing required; ideal for fixed deployment in hilly or woody locations, or for on-the-move applications
Package Contents
RockREMOTE Rugged Unit
Omnidirectional Certus 100 Antenna
9m Antenna Cable Assembly
2m DC Power Cable Assembly w/ IP67 Connector
Mechanical
Dimensions (L x W x H)
250mm x 97mm x 61mm
Weight
1.2 kg
Form Factor
Aluminum Casing
Iridium Embedded Technology
Iridium Certus 9770 Module
Environmental
Ingress Protection
IP67
Operating Temperature
-40 ℃ to +70 ℃
Power
Voltage Required
10 to 30V DC
Power Consumption
0W (Sleep)
5W (Idle)
9W (Average Transmit)
Network
Additional Networks
LTE
Antenna
Dimensions (H x Ø)
191mm x 94mm
Mounting
Pole-mounted, Omnidirectional Antenna
9m Antenna Cable (including connectors)
Interfaces
Cellular, GNSS, Wi-Fi (TNC cable assmembly to suppied Certus® antenna
1 x SMA to External Antennas
Serial
1 x M12 Connector
DC Power & LAN (hybrid cable supplied)
1 x M12 Connector
SIM Card Slot
2 x Standard (2FF ,Satellite & Cellular)
Compute Module
Processor
1.5 Ghz Quad-Core
Memory
2GB RAM, 8GB Flash
Operating System
Linux-based
Protocol Facades
For MQTT and FTP
Communications
Iridium Certus 100
TCP/IP: 22 Kbps Up / 88 Kbps Down
LTE Failover
IMT (Iridium Messaging Transfer)
Packet Size: 1-100,000 bytes
IP Connections: Certus 100 Auto-switch
Cellular
LTE CAT1 and CAT4, Automatic WAN Failover
GNSS
GPS, Glonass, Bei-dou, Galileo, QZSS
Wi-Fi
2.4 Ghz, 5.0 Ghz IEEE 802.11 b/g/n/ac
Controls and Monitoring
RockREMOTE Dashboard
Local, Web-based, Real-Time
Cloudloop
Cloud-based, Real-time
- CE
- FCC
- IC
