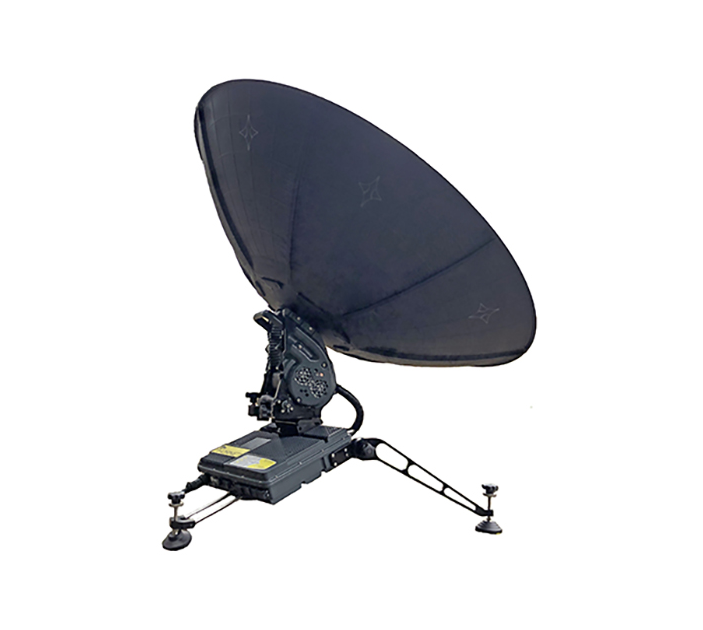

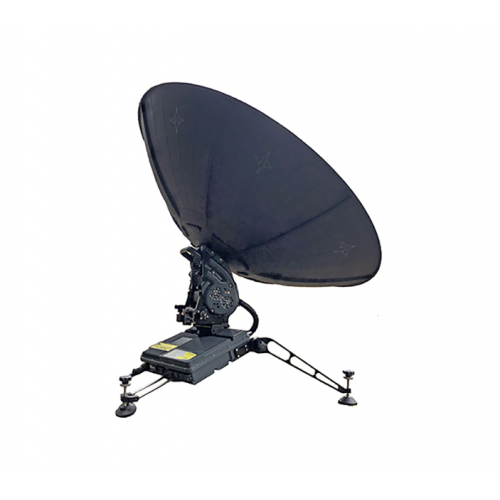

Paradigm's HORNET flyaway terminal is a compact-sized mobile multiband solution supplied with the PIM® (Paradigm Interface Module). Combining both optimal performance and functionality, the lightweight modular satellite terminal is enabled to provide access to the most advanced IP satellite services on high speed networks over X, Ku or Ka-Band.

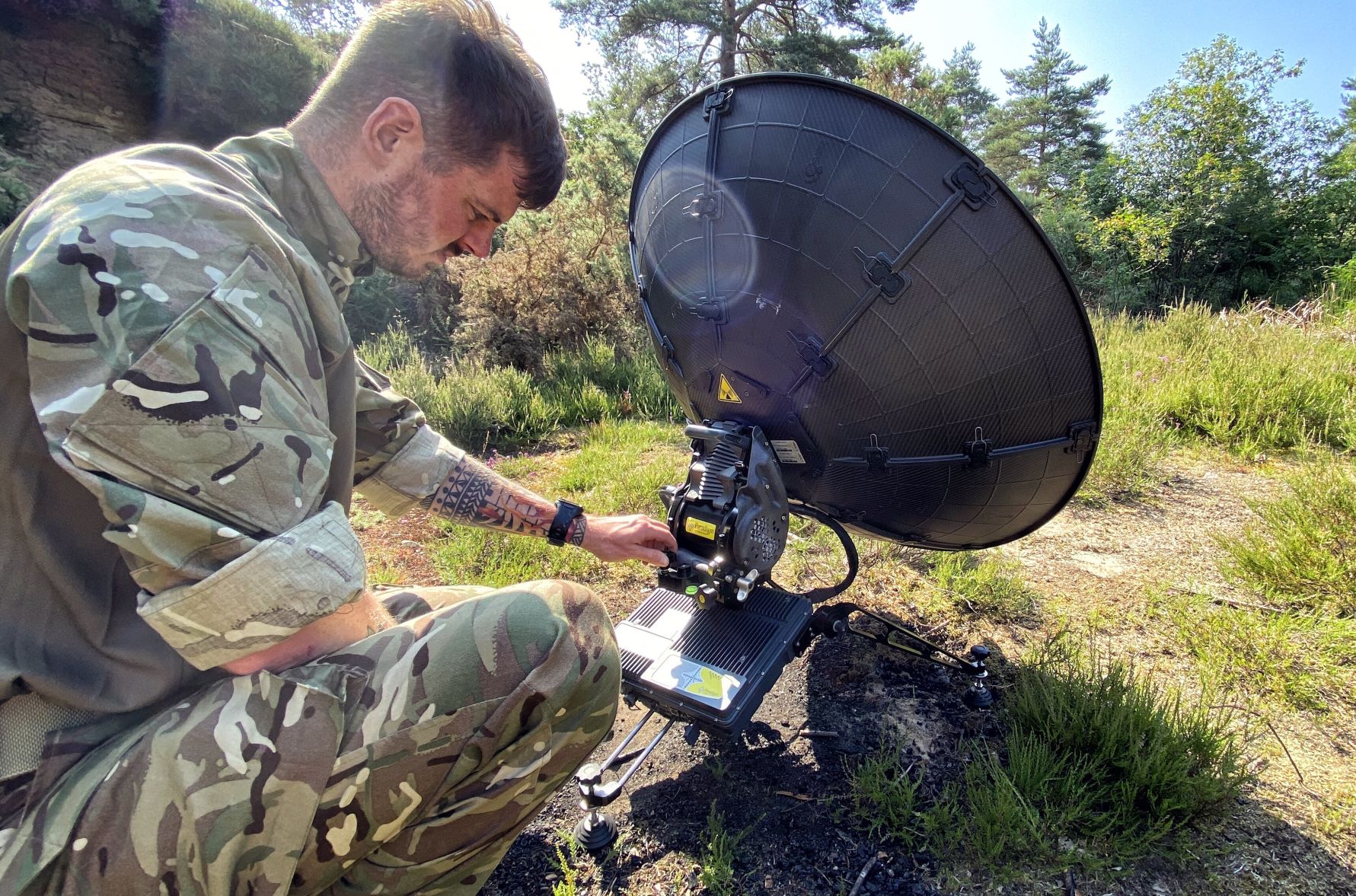

The modular HORNET multiband terminal is lightweight, rugged and quick to deploy and stow. The interchangeable design is simple and robust for fast operation in demanding environments. The segmented carbon-fibre antenna provides maximum efficiency and optimum radiation characteristics for improved data throughput and availability. It deploys quickly and accurately without the need for tools.

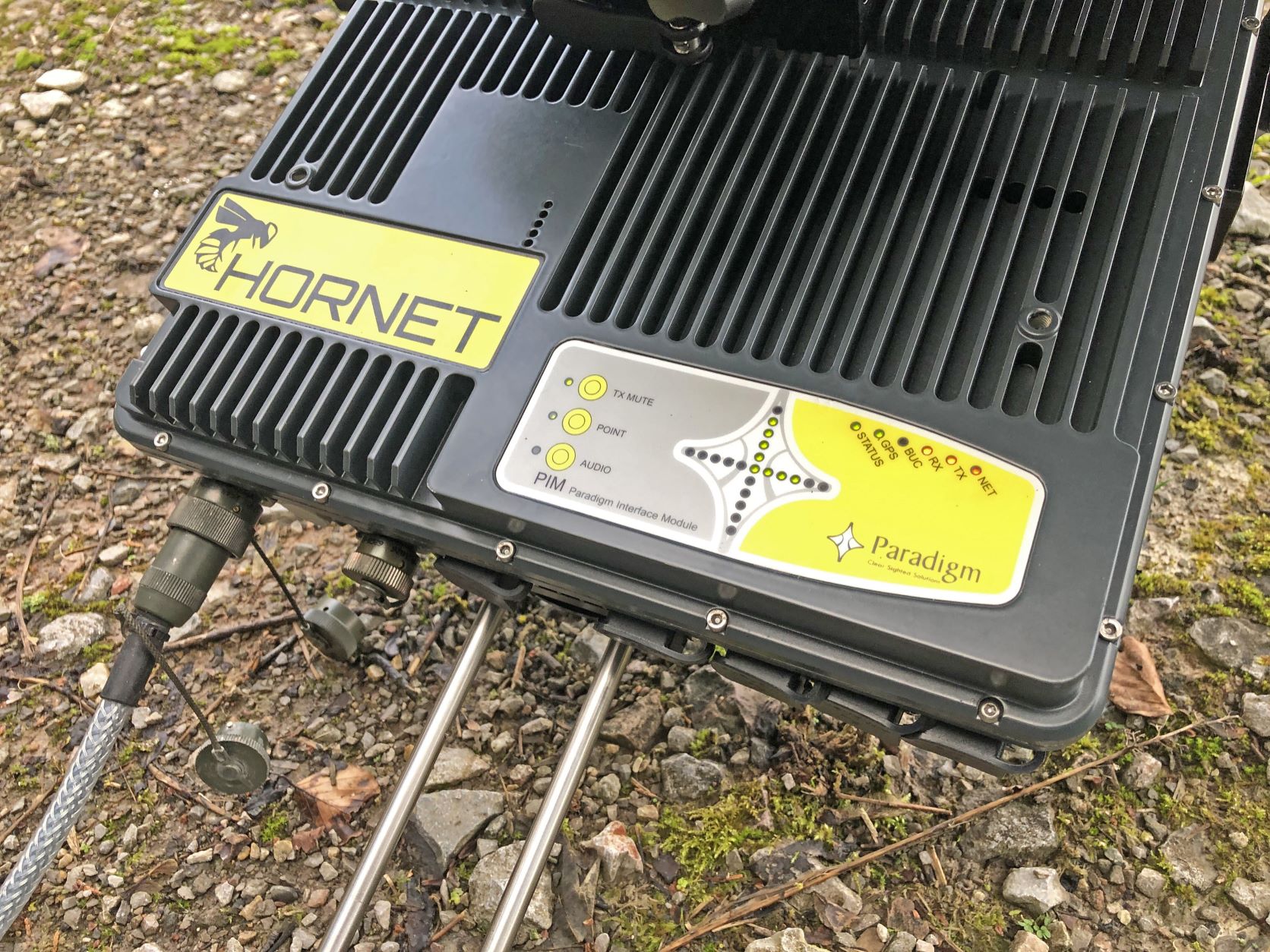

– Quick and Simple Pointing with the PIM technology
– Modem Agnostic, All high performance modems supported

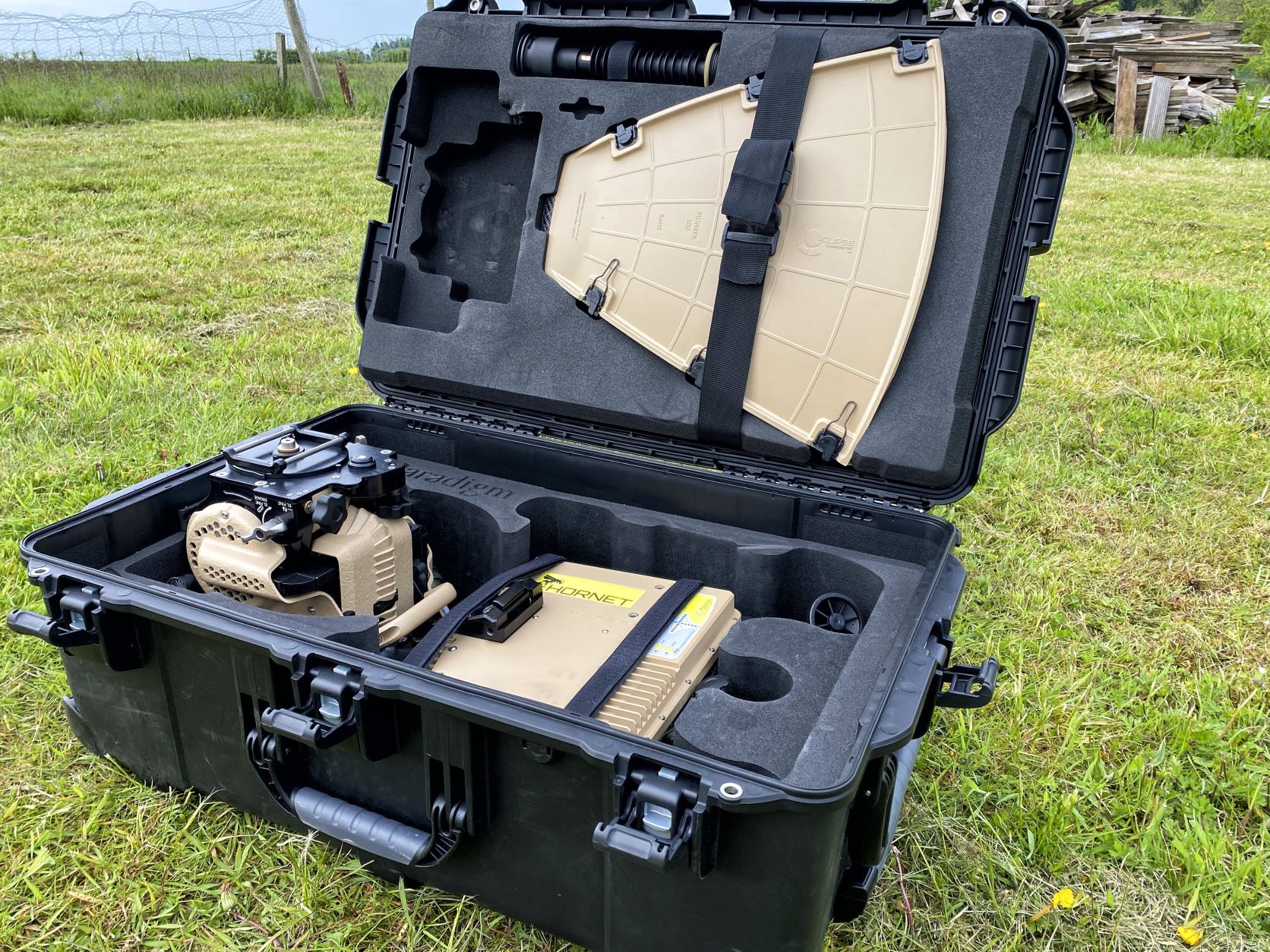

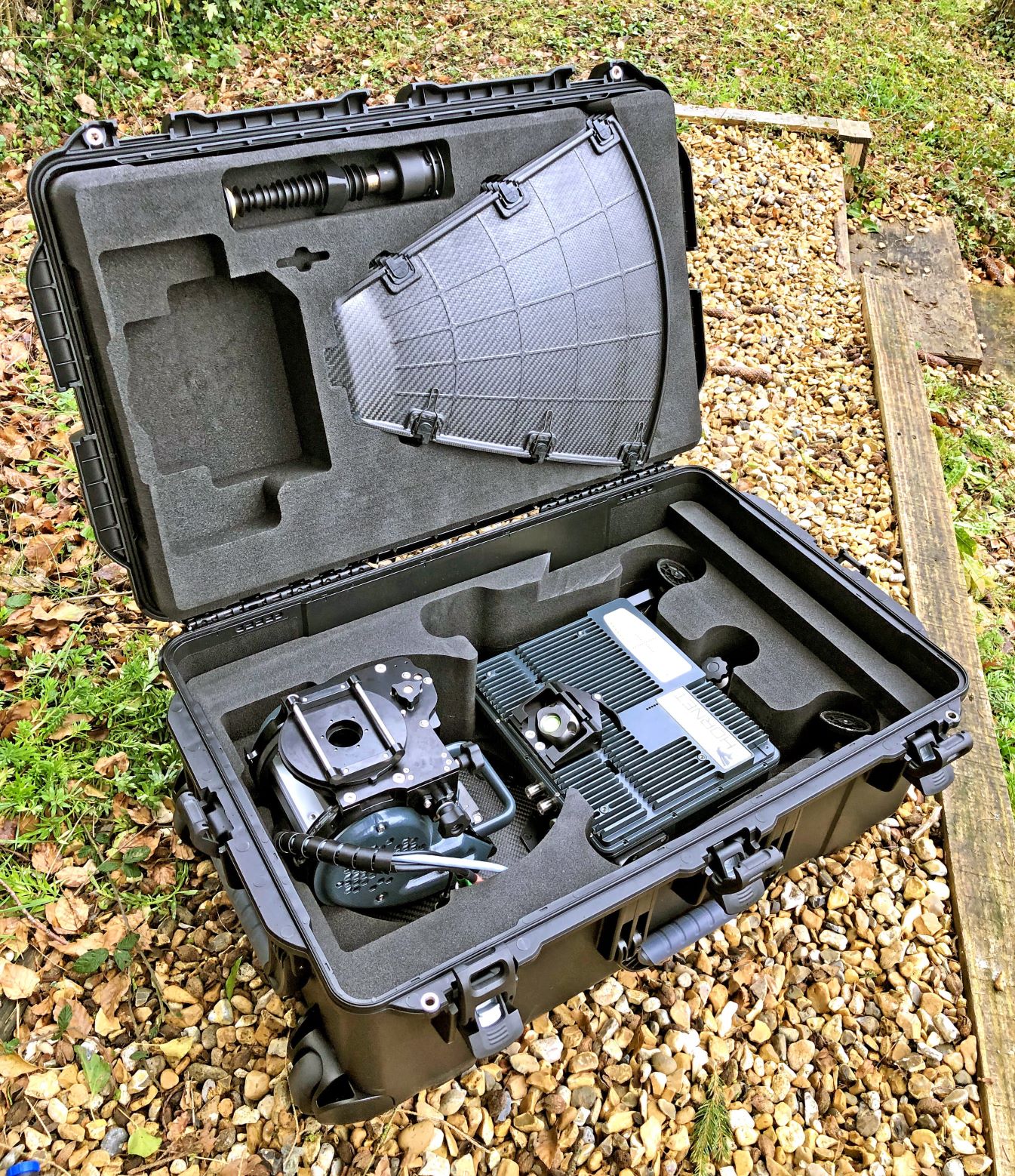

– Single Case / Backpack (IATA compliant)
– Tool-Free SetupLow Power Consumption
– Small, lightweight High Throughput Terminal

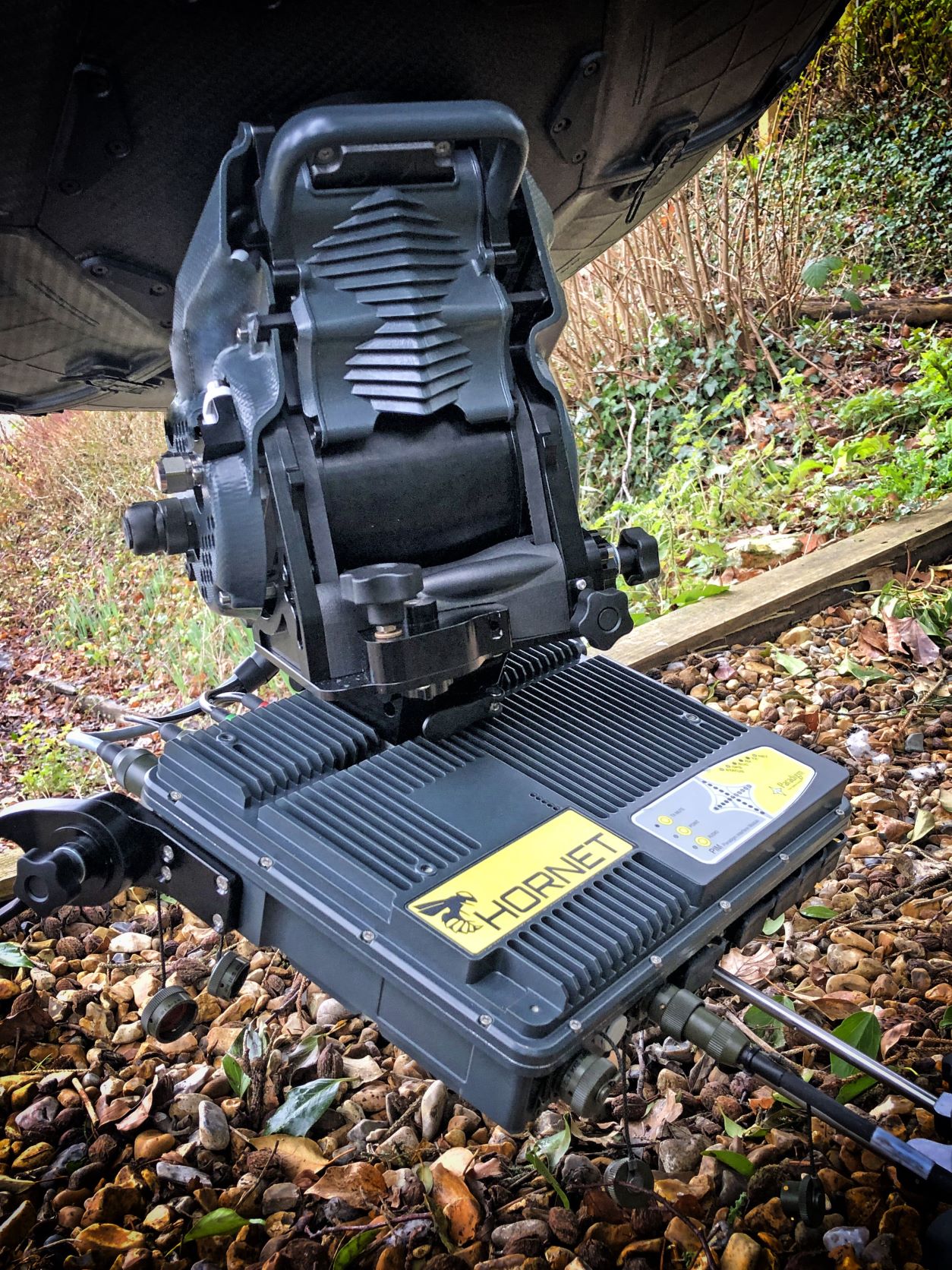

– Interchangeable Module Design
– Field Changeable Modules
– Antenna (60/80/100 cm)
– RF (5 to 80W)
– Mil/Commercial & Extended Bands (Ka, Ku, X)
– Low Power Consumption
– For fast operation in demanding environments
– Lightweight modular satellite terminal
– Compact and rugged

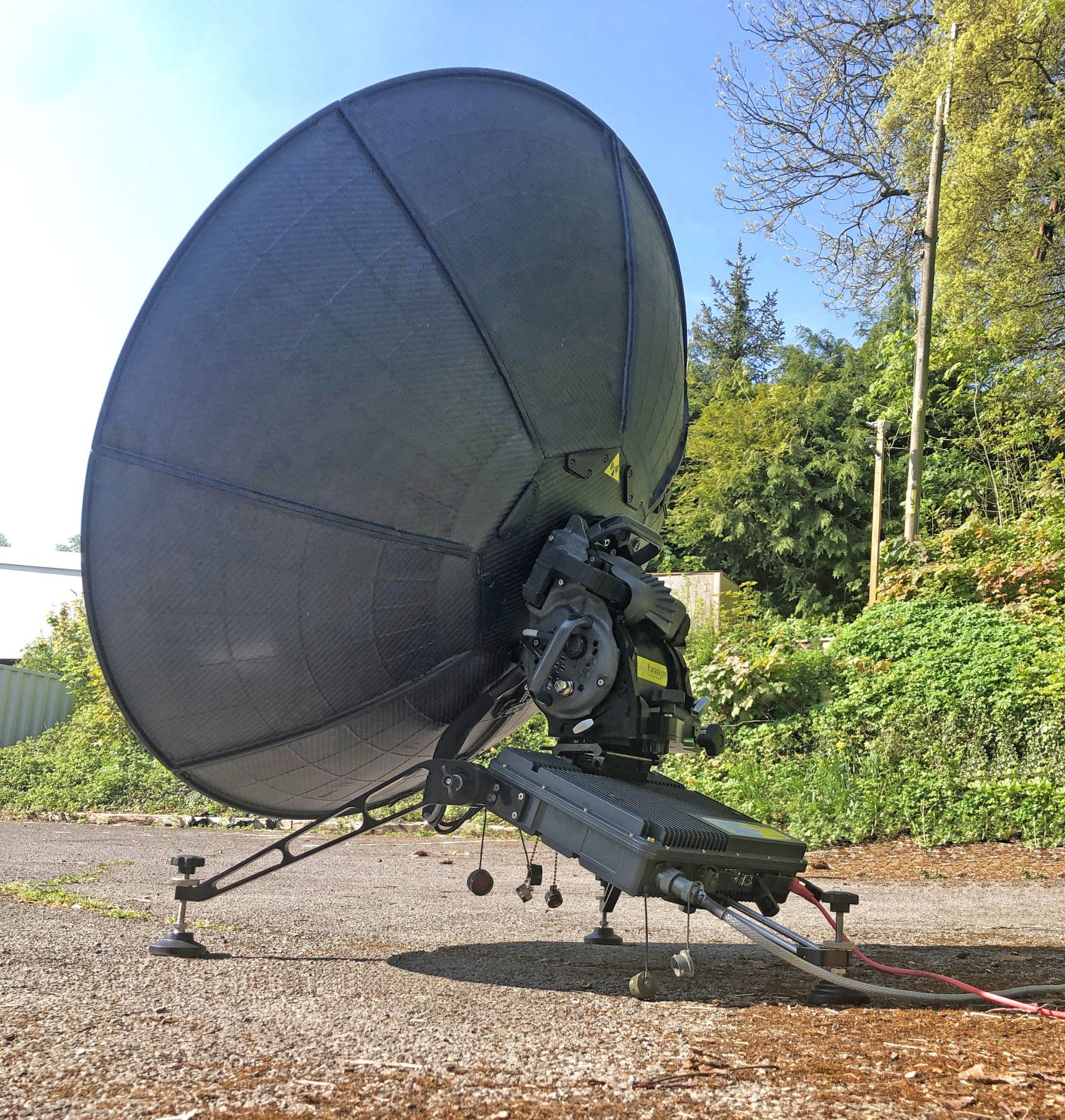

– Carbon fibre, segmented antennas
– Operational on all major satellite networks
– Ideally suited for first responders, NGOs, media and government markets
|
HORNETGX |
|
|
Reflector size (cm) 100 (7 piece carbon fibre) |
|
|
EIRP (dBW) 53.5 - 57.3* |
|
|
G/T (dB/K) 21.1 |
|
|
Positioner type Lightweight manual adjust assisted pointing |
|
|
Inmarsat Land Group 2 |
|
|
Performance |
|
|
Freq. range (GHz) Rx 19.2 – 21.2* |
|
|
BUC power (W) 5, 10* |
|
|
Polarisation Circular, RH or LH |
|
|
External power 90-264 VAC, 47-63Hz, 18-36 VDC (24V nom.)**, 10-60 VDC (Ext. DC-DC Module)** |
|
|
Interfaces
10/100MBps Full Duplex, IEEE 802.3u, 802.3x, IEEE 802.1q, 802.1p/q, M&C RJ45, 10/100MBps Full Duplex Ethernet, and Serial (RS232) |
|
|
Modem options Inmarsat GX |
|
|
Regulatory compliance FCC 25.138, FCC 25.209, FCC 25.218, ITU-R.S.524, CFR47, 164C, Inmarsat GX
* Mil-Ka optional ** DC option required |
|
Mechanical |
|
Azimuth adjustment 140° Continuous |
|
Fine ±70° |
|
Elevation adjustment 0° to 90° Continuous |
|
Fine 0° to 90° |
|
Environmental |
|
Ambient operating temp. -32° to +55°C (-25.6° to 131°F) |
|
Operating humidity 0 to 95% (Condensing) |
|
Ingress protection IP65 |
|
MIL-STD-810G for vibration, shock, salt fog, sand and dust, humidity and driving rain |
|
Available On Request |
|
• BUC options • BUC M&C |
|
• PoE on dataports • DC external power |
|
• PIM modem options • Mil-Ka • 60cm and 80cm reflector sizes • Ku and X-band modular head units • High power modular head units • Customised fibre & wireless solutions • Backpack, soft case or pelicase packaging |
