Thales MissionLINK® 200

Robust Satcoms on Every Continent
Thales MissionLINK 200 provides reliable, global terrestrial coverage, unaffected by weather or landscape. MissionLINK 200 is designed to be depended on, meeting your unique challenges with a simple, adaptable and robust design. It uses Iridium Certus® broadband services over Iridium's global, 66-satellite network to provide highly reliable, mobile & essential voice, text & web communications for fixed sites and mobile users.
Key Features
MissionLINK provides truly global communications on any continent. It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets. It also includes built-in upgradeability to extend your investment and ensure peak speed and performance.
Extendable Network via Radio Gateway
- Satellite to Land Mobile Radio (LMR) extendable network through a unique radio gateway
Simultaneous Functionality
- Voice and data enabled delivering up to three (3) dedicated voice channels
Range of Communications Applications
- Safety services, tracking and location services, out-of-band management, operational reporting, telemedicine, and data transfers
Easy Integration
- Easily integrates with terrestrial cellular with built-in preferred routing switch
User-Friendly Interface
- With application-enabled functionality for Android and iOS devices
Emergency Alerts
- Real-time emergency alert and distress notifications
Wi-Fi Enabled
- Embedded 802.11b/g Wi-Fi Access Point

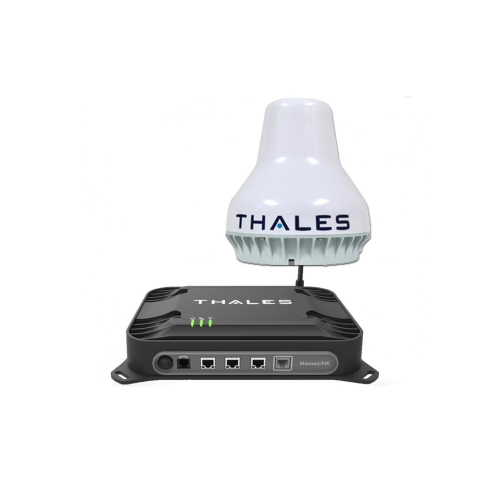

Thales MissionLINK 200 Base Kit
4102947-522
MissionLINK 200 Terminal
85728-001
Wi-Fi Antenna, 2.4 Ghz Dipole 2 dBi
3402174-1
MissionLINK Quick Start Guide
Mechanical
Dimensions (L x W x H, Device)
30.5 cm x 22.9 cm x 5.8 cm
Dimensions (H x Ø, Antenna)
12.5 cm x 14 cm
Weight (Device)
3.4 kg
Weight (Antenna)
680 g
Iridium Embedded Technology
Iridium Certus 9810 Module
Environmental
Operating Temperature Range (Antenna)
-40 to +55 ℃
Durability & Vibration (Terminal Unit)
MIL-STD 810G w/ Change 1, Test Method 514.7, Category 4
Durability & Vibration (Antenna)
MIL-STD-810G w/ Change 1, Test Method 514.7, Category 4
Ingress Protection (Terminal Unit)
IP31
Ingress Protection (Antenna)
IP67

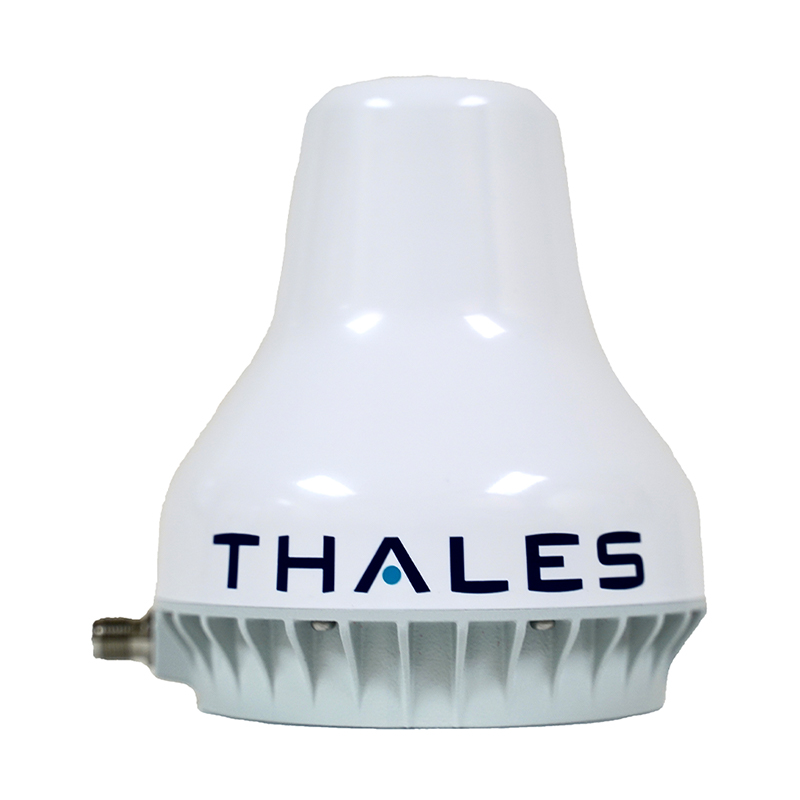

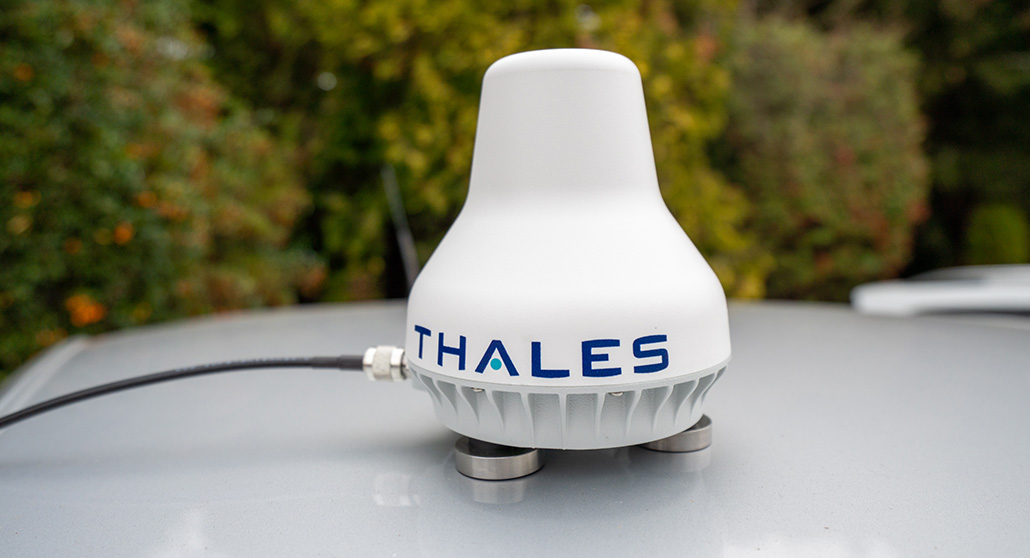

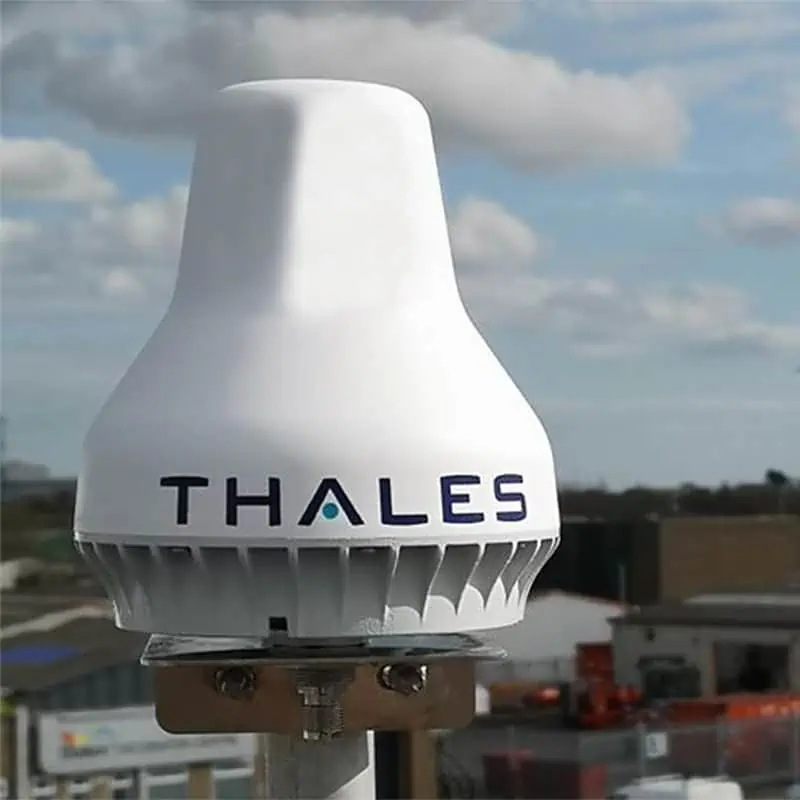

Antenna
Antenna Design
Low Gain Omni-Directional, No Moving Parts
Battery
Battery Life, Talk Time
200 hr
Charge Time
2 hr

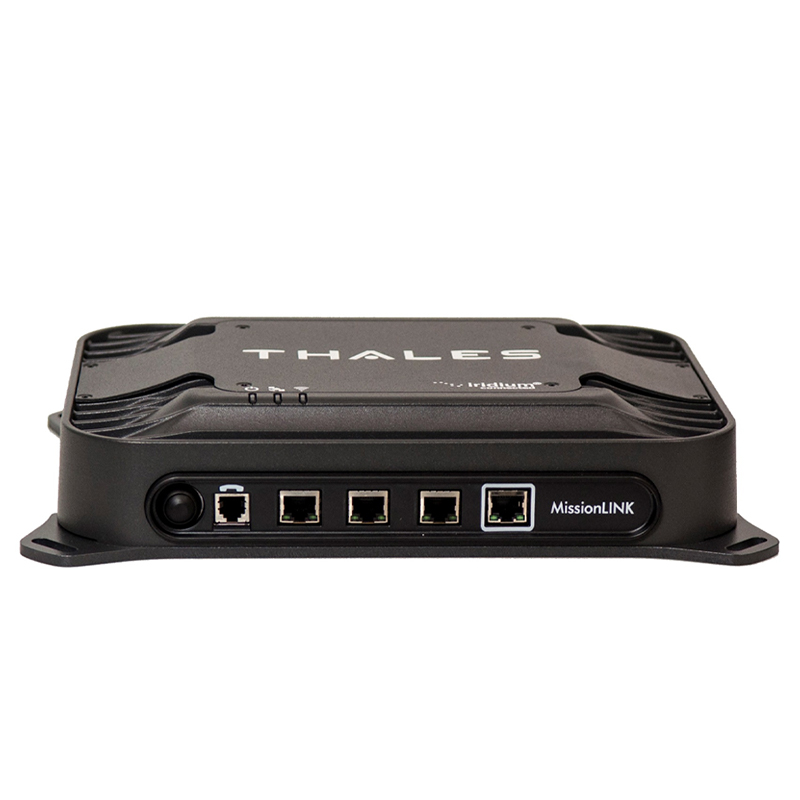

Interfaces
Front Connectors
3 x RJ-45 (LAN)
1 x RJ-45 (WAN, Class 2 PoE (Cellular, VSAT, other IP))
2 x RJ-14 POTS (independent)
Rear Connectors
DC Power Input (10-32V, MIL-STD-1275D)
DC Power Input (+12V Regulated)
GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O),
TNC - RF Connection to Antenna
Wi-Fi - Reverse SMA
SIM Card Slot
Power
Device (Option 1)
10-32 VDC
Device (Option 2)
AC/DC Supply with 12 VDC
(65 W Nominal, 120 W Maximum)
Antenna
Directly Powered by Device, 24 VDC
Network
Satellite Service
Iridium Certus 200
Additional Networks
Cellular ot VSAT via Built-In Preferred Routing Switch
GNSS:GPS, GLONASS
Telephony
Up to 3 Concurrent Voice Lines
Location Based Services (LBS)
Yes
Data & Streaming Speeds
Data Uplink (UL)
176 Kbps
Data Downlink (DL)
176 Kbps
Wi-Fi
Wi-Fi Enabled
Yes
Wi-Fi Protocol
802.11b/g
Connectivity Range
50 m
Interface
App via Bluetooth LE, 1 Concurrent User
User Experience
Screen
LEDs: Messages, SOS, Check-in, Power
- FCC
- CE
- ISED
- ITU
- RCM
- GITECKI
- REACH
- ROHS
- Iridium Approved
- EC60945 (IEC 60945)
