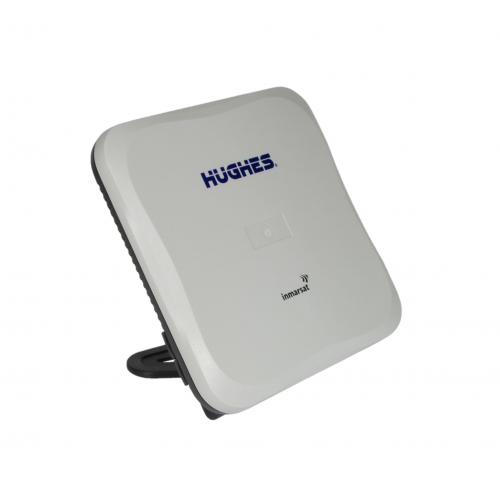

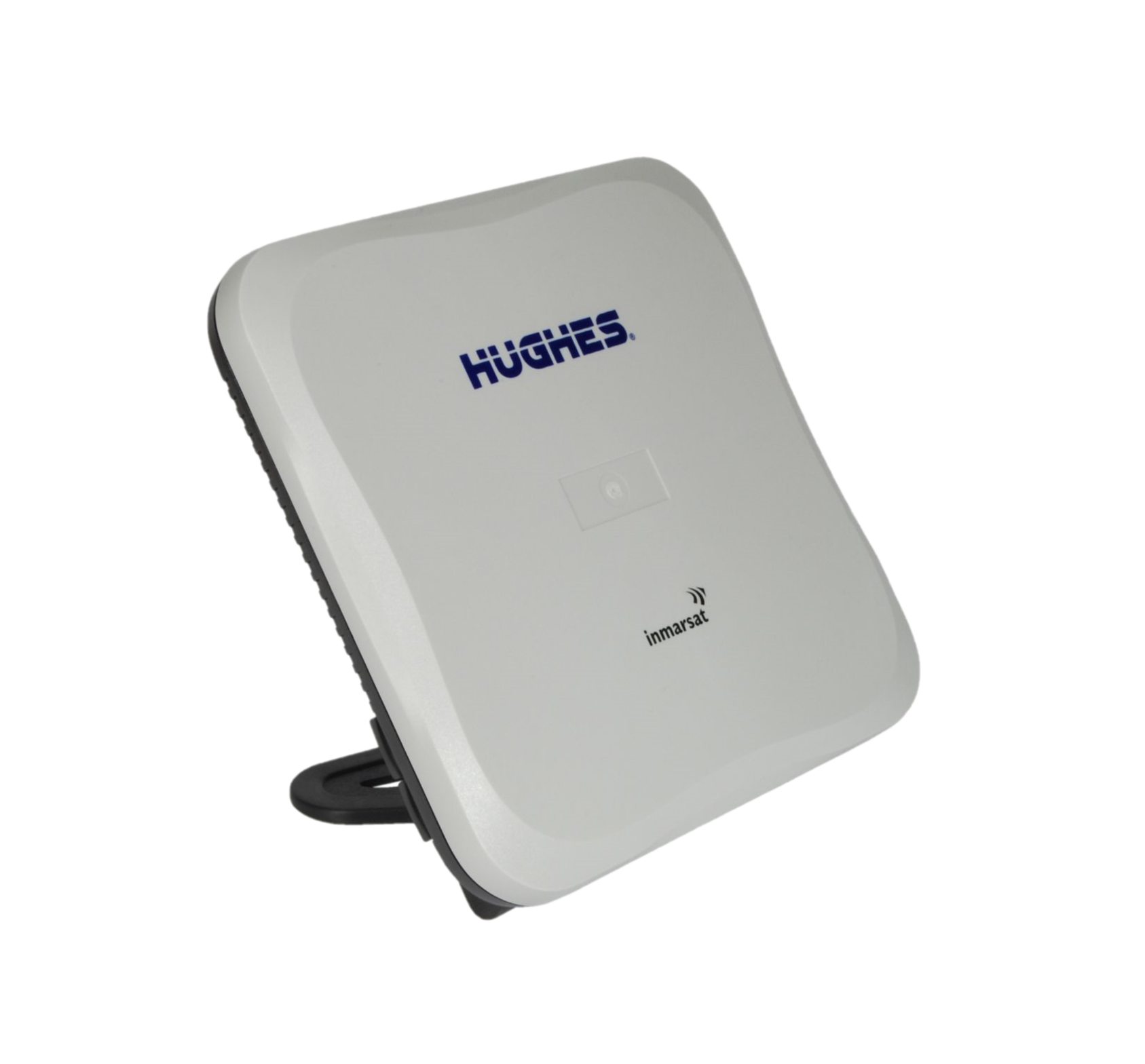

Hughes BGAN 9202 Class 2 Land Portable Satellite Terminal

Features

• Main Features
• Rugged and durable IP55 rating
• Backlit LCD user display including four-button control
• Wi-Fi inside supporting multi-user access
• Two-line RJ11 for voice and fax
• Full ISDN support including Unrestricted Digital Information (UDI)
• Advanced integrated user interface (IUI)
• Automatic Context Activation (ACA)
• XL-band ready
• Interfaces
• Ethernet connection (RJ45)
• ISDN connection (RJ45)
• Two-line RJ11 for voice and fax
• Compass and audio tone to assist in antenna pointing
• Package Contents
• Hughes 9202 Land Portable Terminal
• Rechargeable lithium ion battery pack
• 6 ft. Ethernet cable
• AC/DC adaptor with UK, EU, and US power cables
• Optional Accessories
• DC-DC adapter

Technical Specifications

• Satellite TX Frequency: 1626.5–1660.5 MHz
• Satellite RX Frequency: 1525–1559 MHz
• GPS Frequency: 1574.42–1576.42 MHz
• SAT Continuous TX Time: Up to 3.25 hours at 128 kbps
• SAT Continuous RX Time: Up to 5.5 hours at 128 kbps
• SAT Standby Time: Up to 36 hours
• Weight: 1.4 Kg (3.1 lbs)
• Dimensions: 216mm x 216mm x 45mm (8.5” x 8.5” x1.8”)
• Operating Temperature:
• -5˚C to +55˚C (23°F to 131°F) with battery
• -25˚C to +60˚C (-13°F to 140°F) with DC supply
• Battery Charging Temperature: 0˚C to +40˚C (32°F to 104°F)
• Storage Temperature:
• -20˚C to +60˚C (-4°F to 140°F)with battery
• -25˚C to +80˚C (-13°F to 176°F) excluding battery
• Humidity: 95% RH at +40˚C (104°F)
• Wind: Operational wind loading (with stand secured to ground) 40 km/h (25 mph)
• Water and Dust: IP-55 Compliant
• Non-operational Mechanical Vibration: 200–2000 Hz, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1
• Data Connectivity:
• RJ45 connector
• Two-line RJ11 for voice and fax
• 802.11 WLAN
• RJ45 connector (ISDN)
• Other Features:
• Rechargeable lithium ion battery
• SIM/USIM Slot (behind battery)
• 1/4 inch UNC threaded hole for tripod

* Actual performance will vary based upon a wide range of factors and actual usage.
