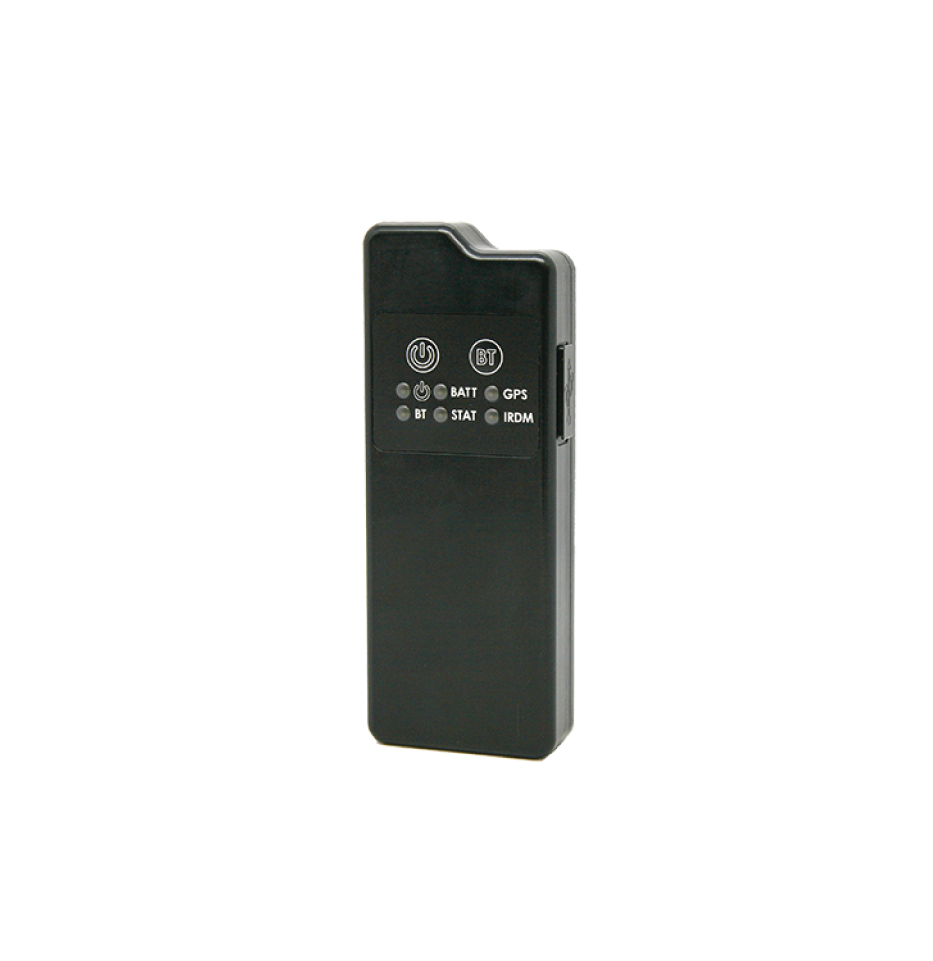

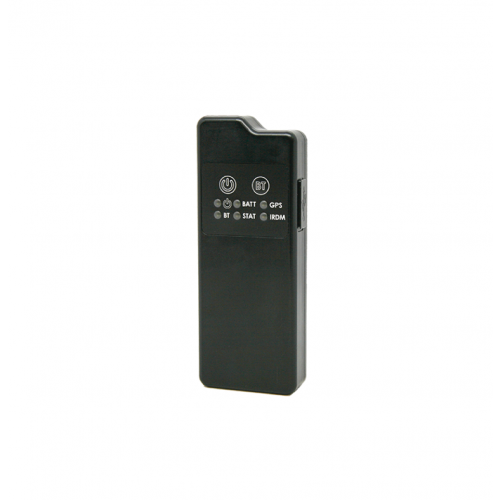

NAL SHOUT NSX

The SHOUT nsx is the “no screen” version of the SHOUT ts. It is a body-worn tracker/messaging device weighing less than 5oz and is 60% smaller than the SHOUT ts in volume. Both the Iridium® and GPS antennas are embedded inside the enclosure. The SHOUT nsx’s operating parameters are set with a computer via a USB port. The SHOUT nsx can also be connected to a smart phone via Bluetooth for two-way messaging and parameter settings. With an internal Lithium-Ion rechargeable battery, the SHOUT nsx can send a position report every hour for up to 20 days (about 480 reports). The nsx supports transmission of free-text, canned messages and a combination of free-text and canned messages via a smart phone. The device can periodically wake up from sleep to send its position report to a command center. A dual button 911 feature is used for immediate emergency/alert notifications. Data is packaged in either standard or 256-bit AES encrypted format. Data can also be sent in encrypted PECOS formats to include Brevity codes.

The SHOUT nsx uses Iridium's SBD service.

• Low-cost, body-worn tracker and messaging device
• Programmed for either DoD or commercial Iridium gateway
• Ultra-low power consumption
• Automatic location reports (>600 reports)
• 911 alert capability
• Bluetooth
• Free-text, canned messages or combined free-text and canned messages via smart phone
• Data logging
• Optional 256-bit AES encryption
• Real-time, pole-to-pole coverage
• Internal rechargeable battery using AC adapter, computer USB port or solar charger
• Integrated motion sensor
• USB interface
• 72-channel GPS receiver with -160 dBm sensitivity
• IP67 Rated
