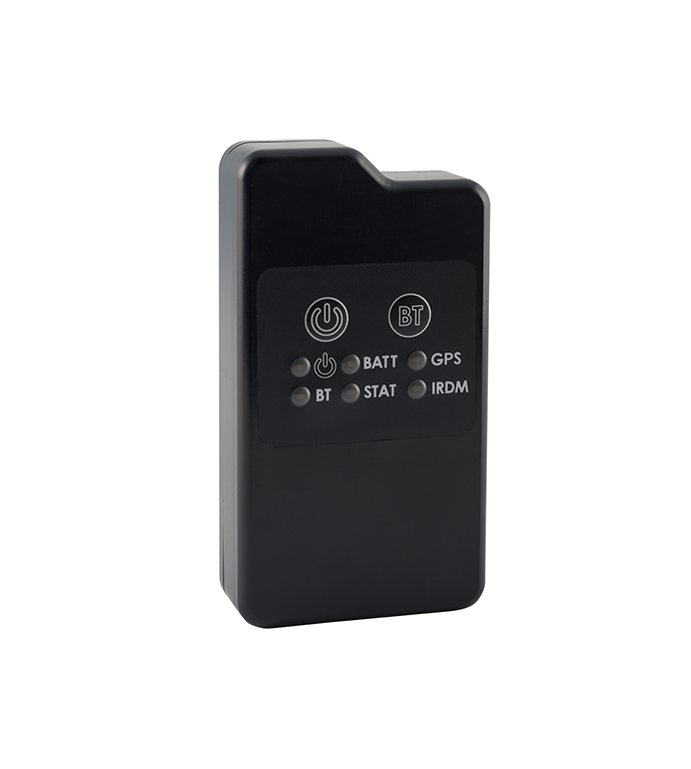

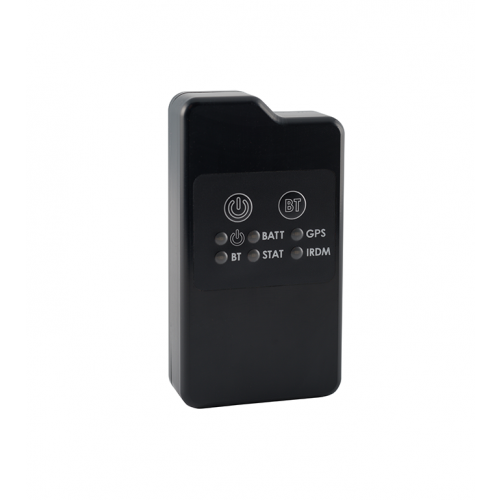

NAL SHOUT ns
; "NAL SHOUT ns")
Price: $702.00
Purchase
Description
The SHOUT ns is a body-worn tracking and messaging device. It is a SHOUT nano without the display. Its tracking parameters are set with a computer via a USB port. The SHOUT ns can also be connected to a smart phone via Bluetooth for two-way messaging and parameter settings. It can send 480 reports on a single charge.
Key Features
Key Features
- Commercial or DoD SBD
- Tracking (480 reports) via: PECOS, K05.1, NAL 10-byte / 30-byte, AES-256 / FIPS 140-2
- Free text messaging
- Canned messaging
- IP67 rated
- Bluetooth low energy
- Motion sensor
- Data logging
- USB interface
Specifications
Specifications
Mechanical
Dimensions: 3.0” x 1.8” x 0.7” (76 mm x 46 mm x 18 mm)
Weight: ~3 ounces (85 g)
Data/Power Interface: Micro USB
Emergency Switch: Alternating Power and Bluetooth buttons
Enclosure: Plastic
Electrical
Input Voltage Range: 2.7VDC to 5.5VDC
Battery: 650 mA-Hr rechargeable CR123
Sleep Mode: < 35µA between reports
Transmission Mode: 1.35mA-Hr per report
RF Components
Iridium Transceiver: Iridium 9603
GPS Receiver: u-blox
Bluetooth: Class 2 (5-10m range)
Environmental
Operating Temperature: -40oF to +185oF (-40oC to +85oC)
Operating Humidity: < 75% RH
IP Rating: IP67
