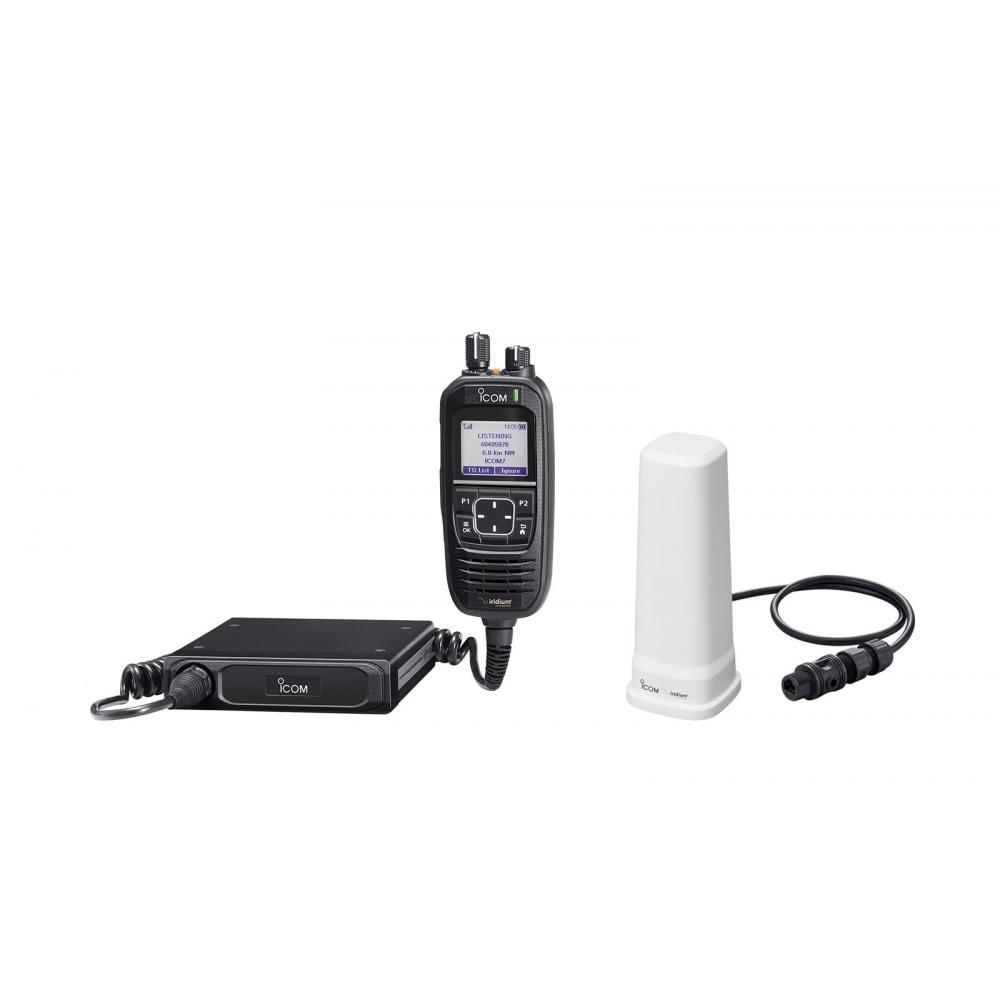

IC-SAT100M

PTT Satellite Radio for Fixed Mount Operations
Icom’s IC-SAT100M is a PTT satellite radio designed for fixed mount operations. Unlike handheld satellite radios, users with the IC-SAT100M do not need to stay outside for a clear view of the sky for a stable communication connection. This global satellite mobile radio’s design easily provides coverage from vehicle to in-building use. The IC-SAT100M is backed by the Iridium satellite network, covering the earth including both poles for a true wide area global communication solution.
Real-time Communications
The Icom IC-SAT100M is a dedicated satellite push-to-talk (PTT) radio designed to be used from a vehicle, indoors, or even from the basement. It is the only PTT radio offering real-time communications at the push of a button — anywhere on the planet.
Mobile Use
- Attach the antenna to your vehicle’s room to connect. The supplied antenna can also be stored inside the vehicle to avoid clearance issues. Add optional AH-40 antenna, to mount on top of the car
PTT Group Communications
- Truly global group communications, with access to configure up to 15 talkgroups through Iridium PTT Command Center
Seamless Interaction with IC-SAT100
- The speaker mic uses a similar display and button layout as the handheld IC-SAT100. Switch between both units with ease
Durable
- MIL-STD-810; Antenna w/RF Unit: IP67, Speaker Mic: IP55, Main Unit: IP54
High-Quality Audio
- 1500 mW Powerful Audio
In-Building Use
- Use a Power over Ethernet (PoE) switch as the power supply for the main unit and antenna. A LAN cable maximum length of 100m or 328 ft can provide a longer, cost-efficient in-building solution
Interoperable with Conventional Radios

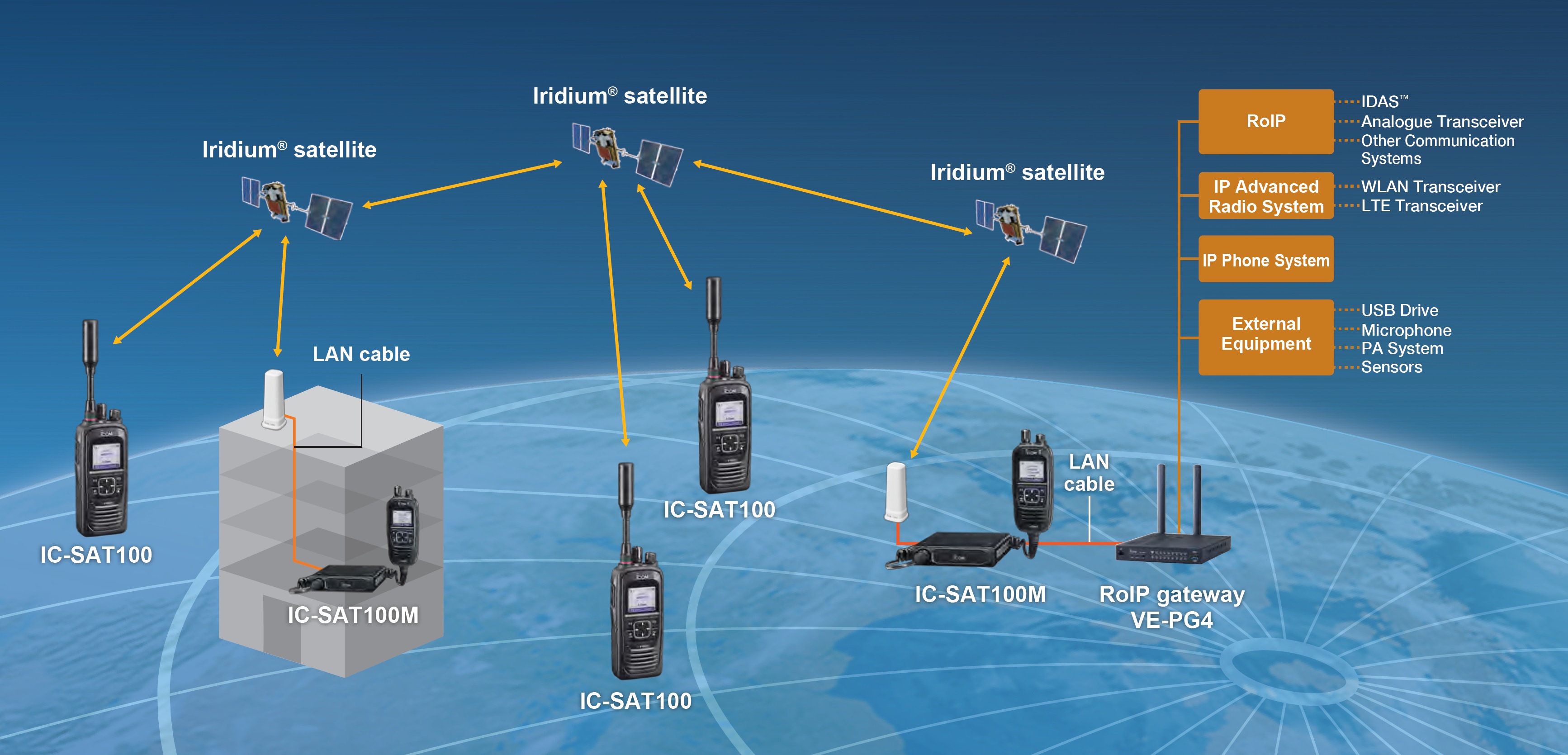

- With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, WLAN, LTE, and other communication systems
Other Features
- Voice recording function, short data messaging, built-in Bluetooth®, integrated GPS receiver shows received signal position
Encryption
- AES 256-bit Encryption for Security
Multiple Languages
- English, French, Japanese and Spanish

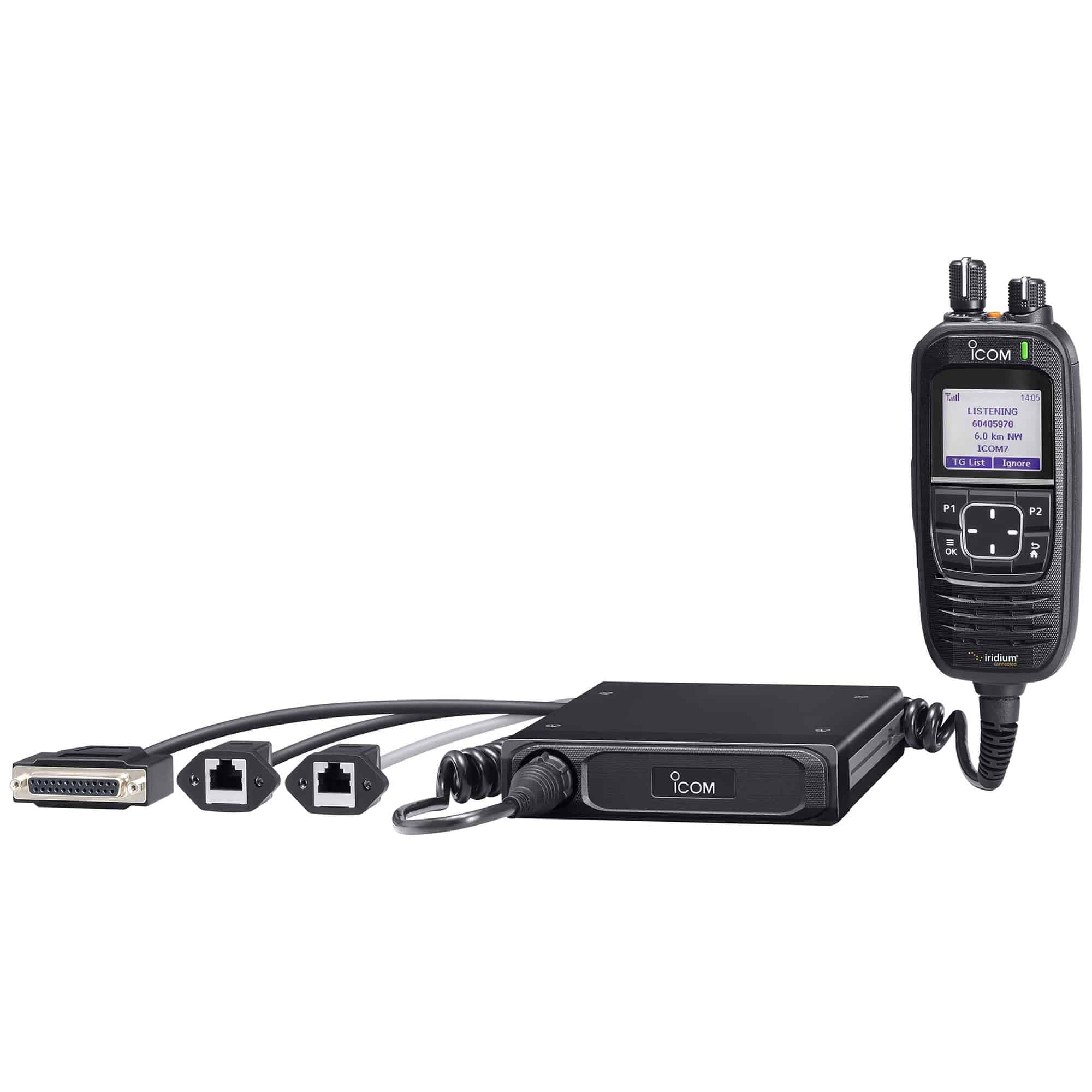

- Main Unit
- Antenna Unit with RF unit
- Multi-functional speaker microphone
- OPC-2435 DC Power Cable
- OPC-2102 LAN Cable (20 m, 65.6 ft)
- Mobile bracket for main unit
- Antenna angle and mounting kits
Mechanical
Dimensions (L x W x H)
Antenna Unit: 200mm x 76.8mm x 76.8mm
Dimensions (L x W x D)
Microphone: 29mm x 125mm x 156.5mm
Weight
Antenna Unit: 500 g
Weight
Main Unit + Microphone: 1200 g
Iridium Embedded Technology
Antenna Unit: Iridium Core 9523 Module
Antenna Connector
SMA (for external antenna)
Environmental
Operating Temperature Range
IC-SAT100M: -30 to +60 °C
Durability Standard
IC-SAT100M: MIL-810 G
Ingress Protection
Antenna Unit with RF Unit: IP67
IC-SAT100M: IP54
Microphone: IP55
RF Interface
Frequency Range
1616 to 1625.5 MHz
Power
Input Voltage Range
IC-SAT100M: 10.5 V to 32 V DC
Idle Current Peak
IC-SAT100M: 500 peak mA
Transmit Current Average
IC-SAT100M: 700 average mA
Transmit Current Peak
IC-SAT100M: 2.5 peak A
Receive Current Average
IC-SAT100M: 800 average mA
Receive Current Peak
IC-SAT100M: 1100 peak mA
Audio Output Power (Internal Speaker)
1500 mW typical (8 Ω load)
Audio Output Power (External Speaker)
4 W typical (4 Ω load)
Network
Additional Networks
VE-PG4 Gateway Unit Enables Interconnectivity with Satellite PTT Radios, PMR Radios, LTE Radios, WLAN Radios, IP Phone Systems, and External Devices
Telephony
No, IC-SAT100M is for Push-To-Talk (PTT) Use Only
Location Based Services
Integrated GPS Receiver
User Experience
Mobility
Install the Antenna Unit (with RF Unit) to the Rooftop for Vehicular or In-building Use
Talkgroups
15 groups maximum
