Explorer 727
Manufacturer: Cobham
Price:
$15,770.00
The selected item is out of stock, please select a different item or combination
The Cobham Explorer 727 In-Motion BGAN Terminal
A high speed on-the-move BGAN terminal

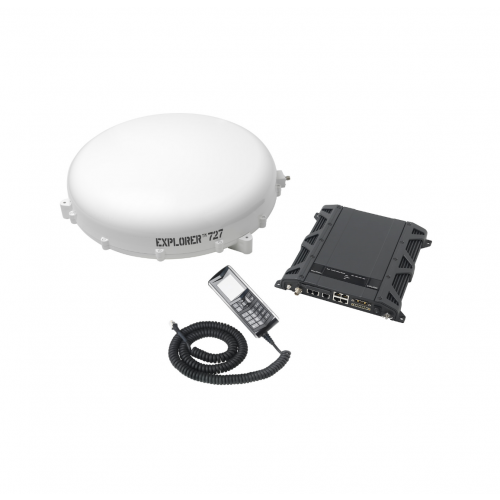

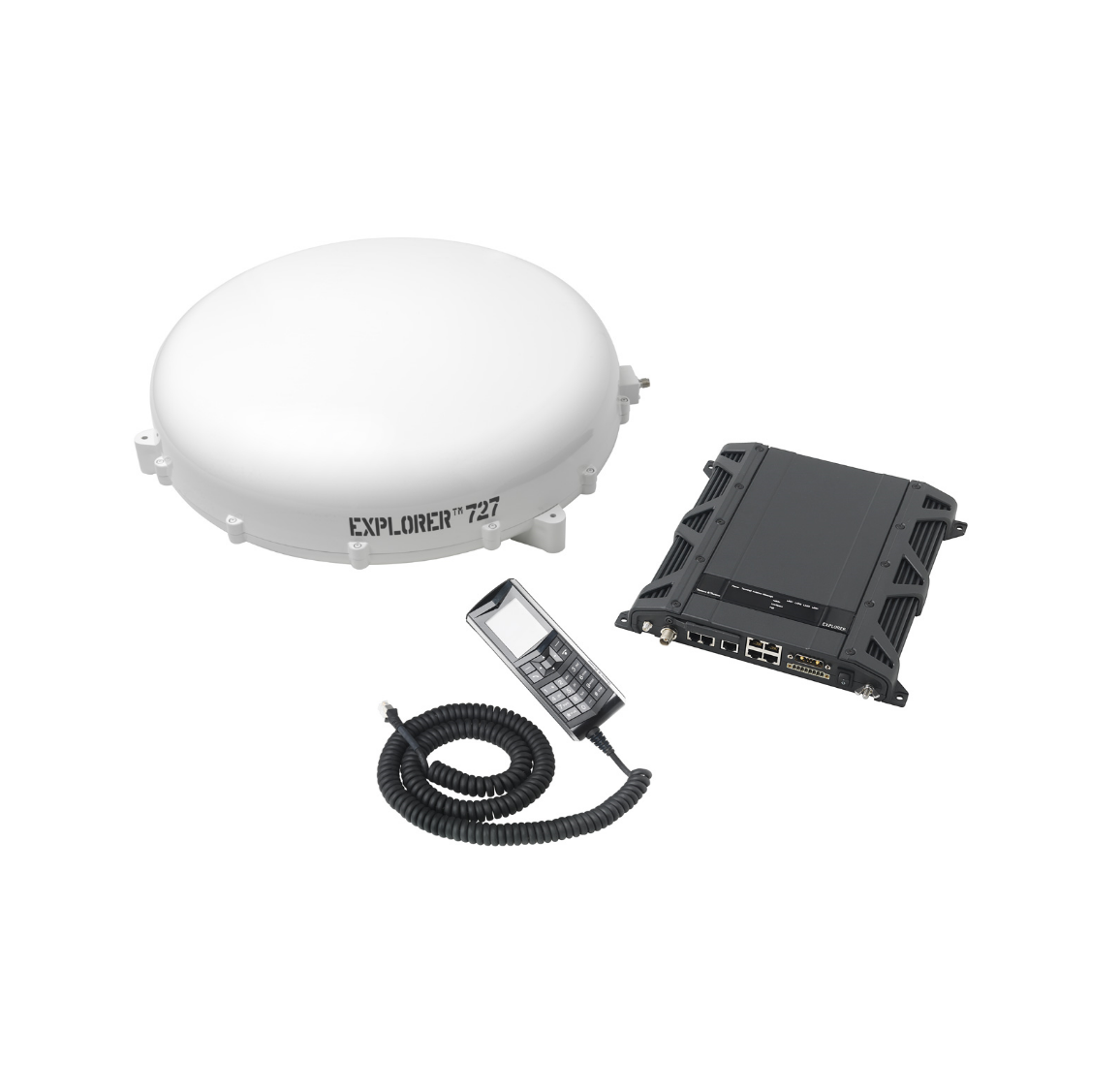

The EXPLORER 727 is a high-speed, vehicular broadband system. It consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna.
Live media broadcast, defense or humanitarian operations requires communication equipment that you can always rely on. With the EXPLORER 727 you get the most comprehensive and best in class Mobile Communication Hub.
Comprehensive communcation hub for vehicles
The antenna automatically tracks satellite positions enabling high-speed connectivity while on-the-move. Simultaneous 432 kbps data and phone calls – even at speeds in excess of 200 km/h.
Mobile Communications
lace the antenna on the roof of your vehicle to turn it into a complete mobile communication hub. Provides access to the internet and phone networks instantly.
Live streaming - or store-and-forward
Facilitates both live streaming and store-and- forward and enables direct transmissions from the hot spots of the world. Utilize the highest streaming rates available on BGAN with BGAN X-Stream when the terminal is standing still (on-the-pause).
Features:
A high speed on-the-move BGAN terminal
The EXPLORER 727 is a high-speed, vehicular broadband system. It consists of three fully integrated units – a transceiver, an IP handset and a roof mountable antenna.
Live media broadcast, defense or humanitarian operations requires communication equipment that you can always rely on. With the EXPLORER 727 you get the most comprehensive and best in class Mobile Communication Hub.
Comprehensive communcation hub for vehicles
The antenna automatically tracks satellite positions enabling high-speed connectivity while on-the-move. Simultaneous 432 kbps data and phone calls – even at speeds in excess of 200 km/h.
Mobile Communications
lace the antenna on the roof of your vehicle to turn it into a complete mobile communication hub. Provides access to the internet and phone networks instantly.
Live streaming - or store-and-forward
Facilitates both live streaming and store-and- forward and enables direct transmissions from the hot spots of the world. Utilize the highest streaming rates available on BGAN with BGAN X-Stream when the terminal is standing still (on-the-pause).
Features:
- Standard IP speeds up to 432kbps
- Streaming rates up to 256kbps
- Streaming rates up to 450kbps with BGAN X-Stream™
- Fully integrated transceiver, IP handset and roof mountable antenna
- Simultaneous voice and broadband data
- SMS, email, web browsing, corporate networks and file transfer
- Meets military and government requirements for security
- Lightweight, compact and durable terminal
- Easy to use and install
- Discrete, lightweight and roof-mountable antenna
- Global coverage except extreme Polar Regions
Specifications
Dimensions
- Transceiver H / W / D: 42.5 / 231 / 273 mm
- 1.67 / 9.72 / 10.63 inches
- Antenna H / W: 152 / Ø477 mm
- 6.3 / Ø18.76 inches
Durability
- Ambient temperature: -25 to +55°C (-13 to 131°F) (Operational)
- Survival temperature: -40 to +80°C (-40 to 176°F) (Power on, non-functional)
- Storage temperature: -40 to +85°C (-40 to 185°F)
- Operating humidity: 95% non-condensing (at +40°C/104°F)
- EXPLORER Terminal: IP-31
- EXPLORER Antenna: IP-56
Included
- Power Consumption
- Maximum incl. antenna & PoE @ 10-32 V: 150 W
- Status LEDs for:
- Power, Terminal, Antenna, Messages, LAN Activity, Link, PoE
- Recommended Antenna Cable
- Cable loss max:
- At 1525.0 - 1660.5 MHz 20 dB
- At 36 - 54 MHz 4 dB
- Maximum DC loop resistance 0.6 ohm
- Max. cable length pr. Type
- RG-223_U-01 14 m/46 ft
- RG-214_U-01 50 m/164 ft
- S-07262-BD 92 m/302 ft
Data Network
- Voice:
- Standard 4 kbps
- Premium 3.1 kHz audio (*1)
- Fax:
- ISDN, 3.1 kHz audio (*1) 64 kbps
- Data:
- ISDN UDI/RDI (*1) 64/56 kbps
- ISDN 3.1 kHz audio (*1) 64 kbps
- Standard data up to 432 kbps
- Streaming data (QoS) Up to 256 kbps
- Text messaging:
- SMS 160 char.
- Frequency Band
- RX: 1525.0 - 1559.0 MHz
- TX: 1626.5 - 1660.5 MHz
- Ch. Spacing: 1.25 kHz ? RX.
Interfaces
- 4 x 10/100 Mbps Ethernet LAN user ports w/PoE
- Max power at 12 V, 30 W
- Max power at 24 V, 60 W
- 1 x ISDN (Euro ? RJ-45)
- 2 x 2-wire (Analog ? RJ-11)
- 5 x I/O connector with General Purpose I/Os:
- Pin 1: Ringer
- Pin 2: Warning
- Pin 3: Mute
- Pin 4: Radio Silence
- Pin 5: Ignition Control
- 1 x SIM card slot.
- 1 x Heavy duty power input plug (10-32 VDC). - w/ remote on/off and locking mechanism
- 1 x Factory default reset button
- 1 x Power on/off switch
- Antenna Connectors
- EXPLORER Terminal TNC-socket, female
- EXPLORER Antenna, TNC-socket, female
