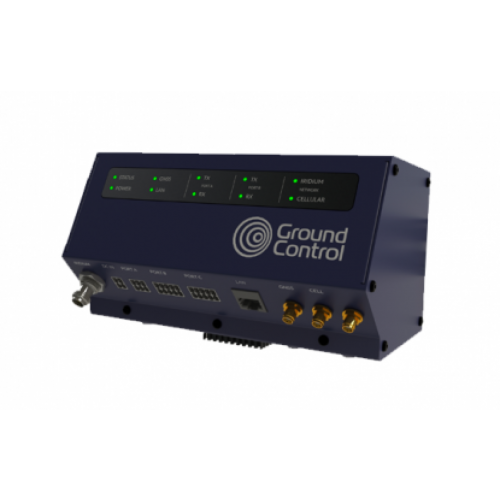

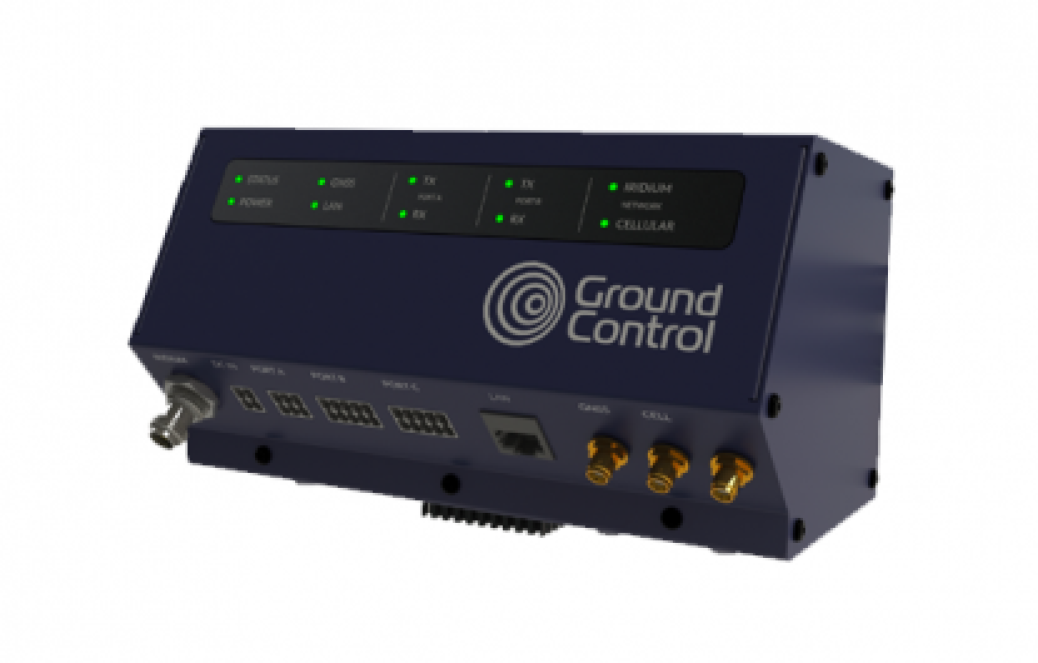

RockREMOTE
Industrial Design
RockREMOTE is designed and built for Utilities, Oil and Gas, and Mining. It is a brand new, bespoke, Iridium enabled M2M connectivity device for industrial use cases where the grid stops. It provides central control and visibility of many assets and operations over wide geographical areas, and extends the reach of telemetry applications. Its support for legacy interfaces ensure that it can be integrated with existing systems, and its edge computing capabilities future-proof connectivity requirements.
When the Grid Stops
RockREMOTE provides a flexible and reliable communications solution for truly remote Industrial and Utilities IoT applications. Easy connection of telemetry devices using a range of serial and digital interfaces, which help bridge the gap between serial and IP based communications.
Robust and Reliable Communications
- Offering a primary connection using the resilient, high quality Iridium Certus® satellite network combined with integrated LTE Cellular connectivity for failover
Beyond Communications
- Going beyond pure communications, RockREMOTE’s powerful integrated processing, storage and security enables the evolution towards Edge Computing
Remote Industrial Deployment

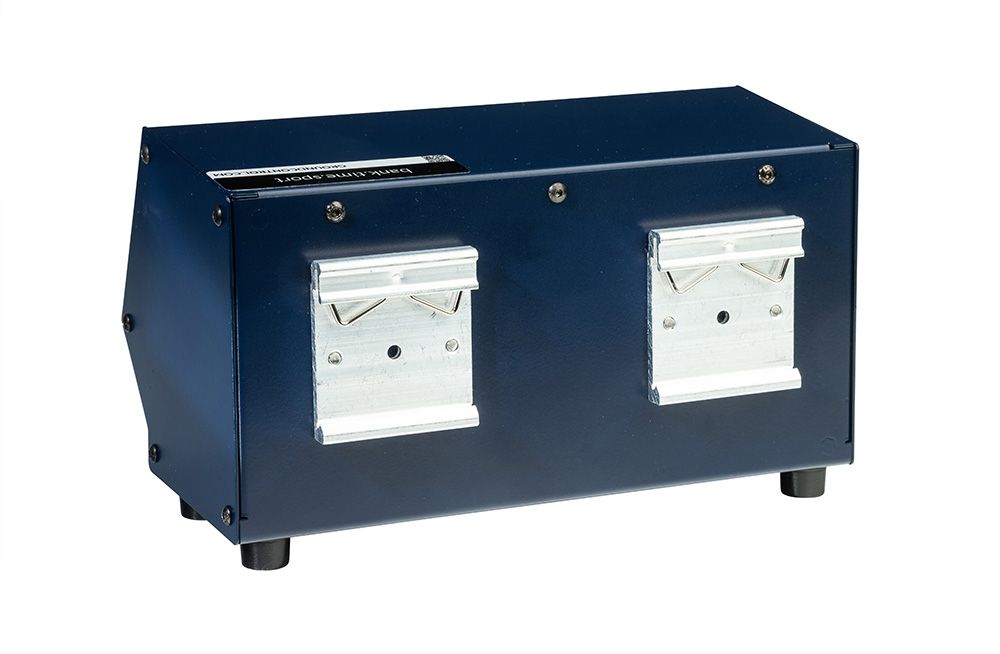

- Combining small form factor, DIN rail mounting and omni directional antenna, with sleek and robust industrial design, RockREMOTE is specifically designed for ease of installation
Highly Secure
- Data security for critical infrastructure communication is paramount, RockREMOTE’s inbuilt hardware security module ensures that your data is safely secured whilst being transmitted over the network
Package Contents
RockREMOTE Unit
Omnidirectional Certus 100 Antenna
9m Antenna Cable Assembly
1m DC Power Cable Assembly
Mechanical
Dimensions (L x W x H)
193.3mm x 120.3mm x 111.7mm
Weight
1263 g
Form Factor
Aluminum Casing
Iridium Embedded Technology
Iridium Certus 9770 Module
Environmental
Ingress Protection
IP5X
Operating Temperature
-40 ℃ to +70 ℃
Power
Voltage Required
10 to 30V DC
Power Consumption
0W (Sleep)
5W (Idle)
9W (Average Transmit)
Network
Additional Networks
LTE

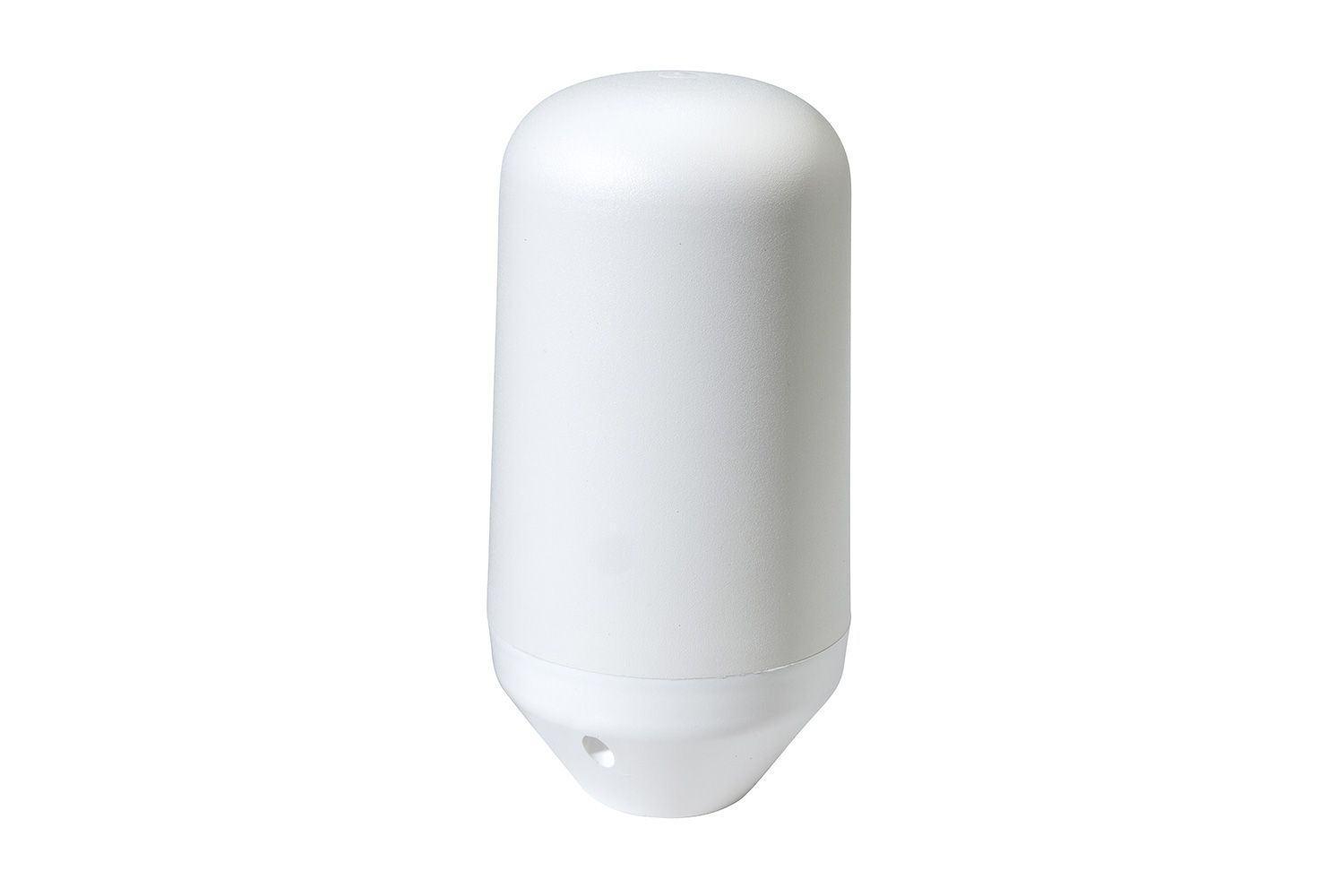

Antenna
Dimensions (H x Ø)
191mm x 95mm
Mounting
Pole-mounted, Omnidirectional Antenna
9m Antenna Cable

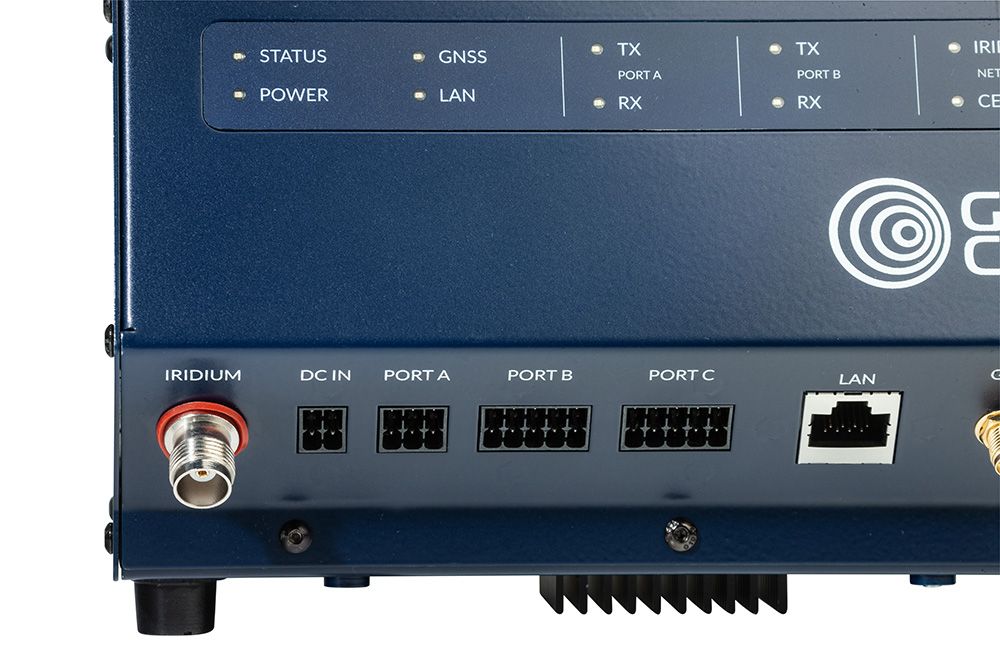

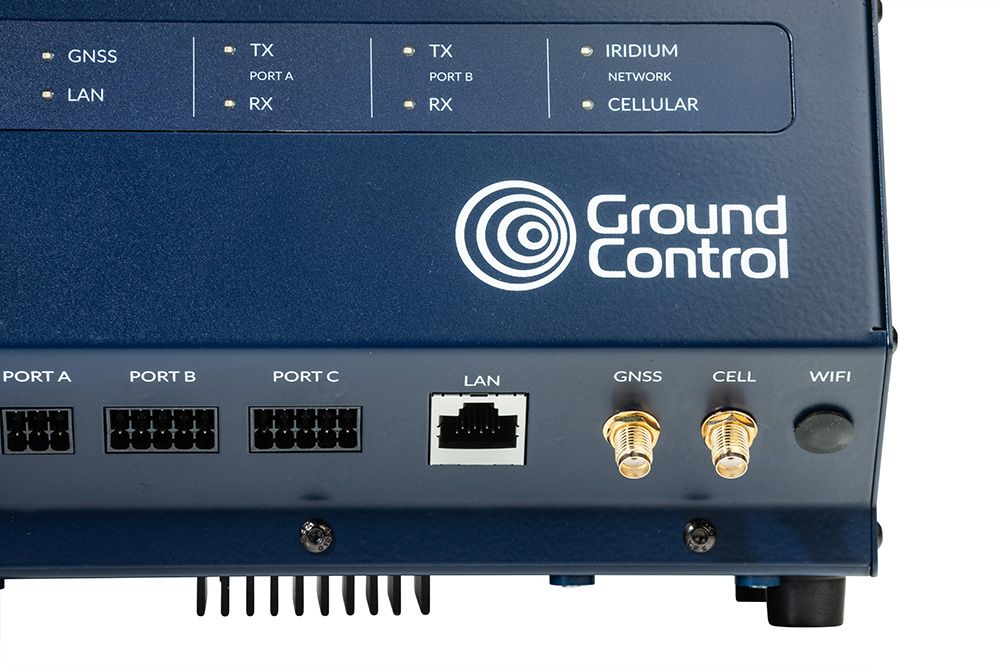

Interfaces
Ethernet
1 x RJ45
Serial
1 x RS232
1 x RS485/RS422
Digital - General Purpose In/Out
1 x GPIO Port (with 8 isolated GPIOs)
SIM Card Slot
2 x Standard (Satellite & Cellular)
Compute Module
Processor
1.5 Ghz Quad-Core
Memory
2GB RAM, 8GB Flash
Operating System
Linux-based
Communications
Iridium Certus 100
TCP/IP: 22 Kbps Up / 88 Kbps Down
LTE Failover
IMT (Iridium Messaging Transfer)
Packet Size: 1-100,000 bytes
IP Connections: Certus 100 Auto-switch
Controls and Monitoring
RockREMOTE Dashboard
Local, Web-based
Cloudloop
Cloud-based, Real-time
- CE
- FCC
