BEAM Oceana 400 Maritime FleetPhone
Manufacturer: BEAM
Price:
$2,302.00
The selected item is out of stock, please select a different item or combination

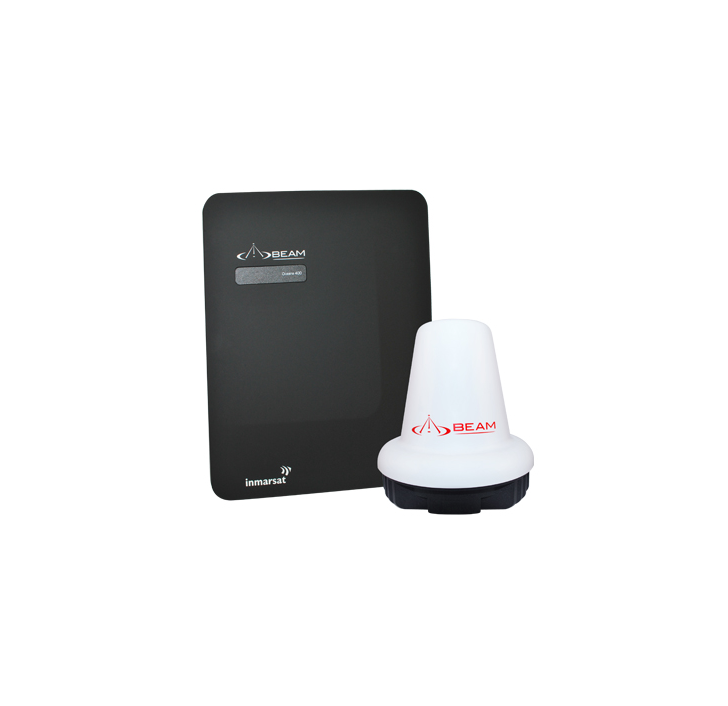

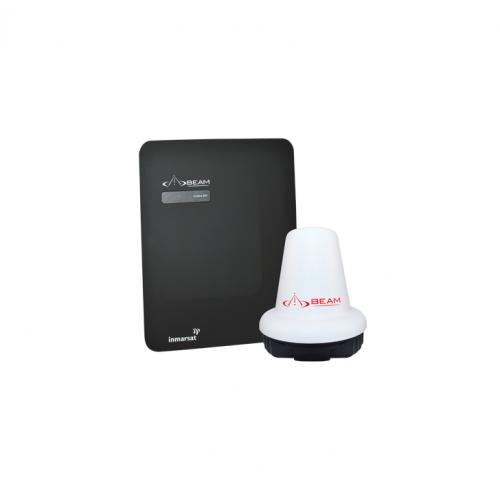

The BEAM Oceana 400 Maritime FleetPhone
The compact and trim Oceana 400 terminal from BEAM Communications is perfect for maritime applications to provide simple access to reliable Inmarsat Fleet voice and data communication services. Up to five analog corded or cordless phones may be connected at once via the RJ11/POTS interface, which also allows integration to a PABX system.
Oceana 400 provides data through the USB interface, and is protected inside a high quality IP53 rated enclosure which is rainproof when wall-mounted, and may also be mounted to a desk. Designed to operate with the Inmarsat Fleet service, the Oceana 400 includes an active marine grade antenna system making it a complete communications ecosystem that is ready when you are.
Oceana 400 is a slimline terminal where the simplest access to reliable voice and
data communications services is required. The Oceana 800 is an all-in-one maritime communications terminal designed with a IP54 rating enclosure.
data communications services is required. The Oceana 800 is an all-in-one maritime communications terminal designed with a IP54 rating enclosure.
FleetPhone Features
Multi-user capability
- The RJ-11/POTS interface enables connection of up to five standard corded/cordless phones or integration with a PABX system.
505 Emergency Calling
- Our 505 Emergency Calling facility puts vessels directly in contact with a maritime rescue co-ordination centre (MRCC) free of charge.*
Language support terminal
- FleetPhone supports English, Arabic, Spanish, French, Japanese, Portuguese, Russian and Chinese.*
GPS tracking terminal
- FleetPhone has an built-in GPS receiver for instant tracking functionality.*
Data capability
- Send simple text emails with small attachments using the 2.4kbps circuit-switched data service.
SMS
- Text-to-text, text-to-email, plus free web messages to a FleetPhone service.
Satellite telephony
- Make crystal clear phone calls to terrestrial and mobile networks, as well as other satellite terminals, anytime.
- FleetPhone has a voicemail facility that allows messages to be left if calls cannot be taken
General applications
- Telephony and SMS
- GPS location data look-up-and-send
- Crew Welfare – chat
- Crew welfare prepay / post-paid
- Internet and intranet access
- Notice To Mariners
- Anti-piracy / citadel deployment
- Government / regulatory / control
- Optimised social solutions
- Weather forecasts
Power Specifications:
Average Power Consumption (Active Ant. Connected) Current @ 15V Average Power
Standby 0.22A 3.2W
Transmit (RJ11/POTS) 0.58A 8.7W
Transmit (Speakerphone) 0.53A 7.9W
Sleep Mode 5mA 75mW
Peak Current 1.7A 26W
Standby 0.22A 3.2W
Transmit (RJ11/POTS) 0.58A 8.7W
Transmit (Speakerphone) 0.53A 7.9W
Sleep Mode 5mA 75mW
Peak Current 1.7A 26W
GPS Module (internal)
Channels 14 tracking, 51 Channel Acquiring
Update Rate 1Hz
Accuracy Position 2.5mCEP, Velocity 0.1m/s,
Acquisition TTFF Timing 300ns
Sensitivity Cold 29sec, Hot 1sec
Operational Limits -161 dBm
Update Rate 1Hz
Accuracy Position 2.5mCEP, Velocity 0.1m/s,
Acquisition TTFF Timing 300ns
Sensitivity Cold 29sec, Hot 1sec
Operational Limits -161 dBm
Physical Specifications
Dimensions 241 x 185 x 93 (mm) 9.49 x 7.28 x 3.66 (inches)
Weight OC800 only 1.27 kg 2.80 lbs
Operating Range -20°C to +55°C -4°F to +131°F
Storage -30°C to +80°C -22°F to +176°F
Humidity 95%
Transceiver
Inmarsat-4 Satellite
GMR-2+ Frequency Bands
Tx Operating Frequency 1626.5 - 1660.5 MHz
Rx Operating Frequency 1518 – 1565 MHz (Inmarsat) 1565.19 – 1585.65 MHz (GPS)
RF Output Impedance 50 Ohms
Carrier frequencies Channel 0 = 1626.525 MHz Channel 169 = 1660.475 MHz
TX Modulation GMSK
RX Modulation OQPSK
Inmarsat Antenna frequency and adaptive impedance
GPS Antenna TNC-Female SMA-Female
10-32V DC 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port USB Mini B
Speakerphone In-built speaker/microphone
Certifications
Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions - limited ingress permitted.
Kit Contents
Oceana 800 Terminal
ISD710 Maritime Antenna (Active)
Privacy Handset
1 x spring cup (attached to terminal)
1 x Springless Cup
110-240V AC Plug Pack, 15V DC Out
10-32V DC Power Cable
USB Cable
2m Alert wiring loop
Wall mounting plate
User Manual
Quick Start Guide
Installation Guide
Dimensions 241 x 185 x 93 (mm) 9.49 x 7.28 x 3.66 (inches)
Weight OC800 only 1.27 kg 2.80 lbs
Environmental Specifications Degrees °C Degrees °F
Operating Range -20°C to +55°C -4°F to +131°F
Storage -30°C to +80°C -22°F to +176°F
Humidity 95%
Transceiver
Inmarsat-4 Satellite
GMR-2+ Frequency Bands
Tx Operating Frequency 1626.5 - 1660.5 MHz
Rx Operating Frequency 1518 – 1565 MHz (Inmarsat) 1565.19 – 1585.65 MHz (GPS)
RF Output Impedance 50 Ohms
Carrier frequencies Channel 0 = 1626.525 MHz Channel 169 = 1660.475 MHz
TX Modulation GMSK
RX Modulation OQPSK
Instant Message
POTS/RJ11 RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configureInstant Message Single button press
1 x Alarm Loop Bare wire – "Normally Closed" Loop IN to OUT
Track Inbuilt - single key press
Connectors / Interfaces
1 x Alarm Loop Bare wire – "Normally Closed" Loop IN to OUT
Track Inbuilt - single key press
Connectors / Interfaces
Inmarsat Antenna frequency and adaptive impedance
GPS Antenna TNC-Female SMA-Female
10-32V DC 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port USB Mini B
Speakerphone In-built speaker/microphone
Certifications
Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions - limited ingress permitted.
Kit Contents
Oceana 800 Terminal
ISD710 Maritime Antenna (Active)
Privacy Handset
1 x spring cup (attached to terminal)
1 x Springless Cup
110-240V AC Plug Pack, 15V DC Out
10-32V DC Power Cable
USB Cable
2m Alert wiring loop
Wall mounting plate
User Manual
Quick Start Guide
Installation Guide
