9602-LP
Ultra-low power, pocket-sized, self-contained satellite tracker

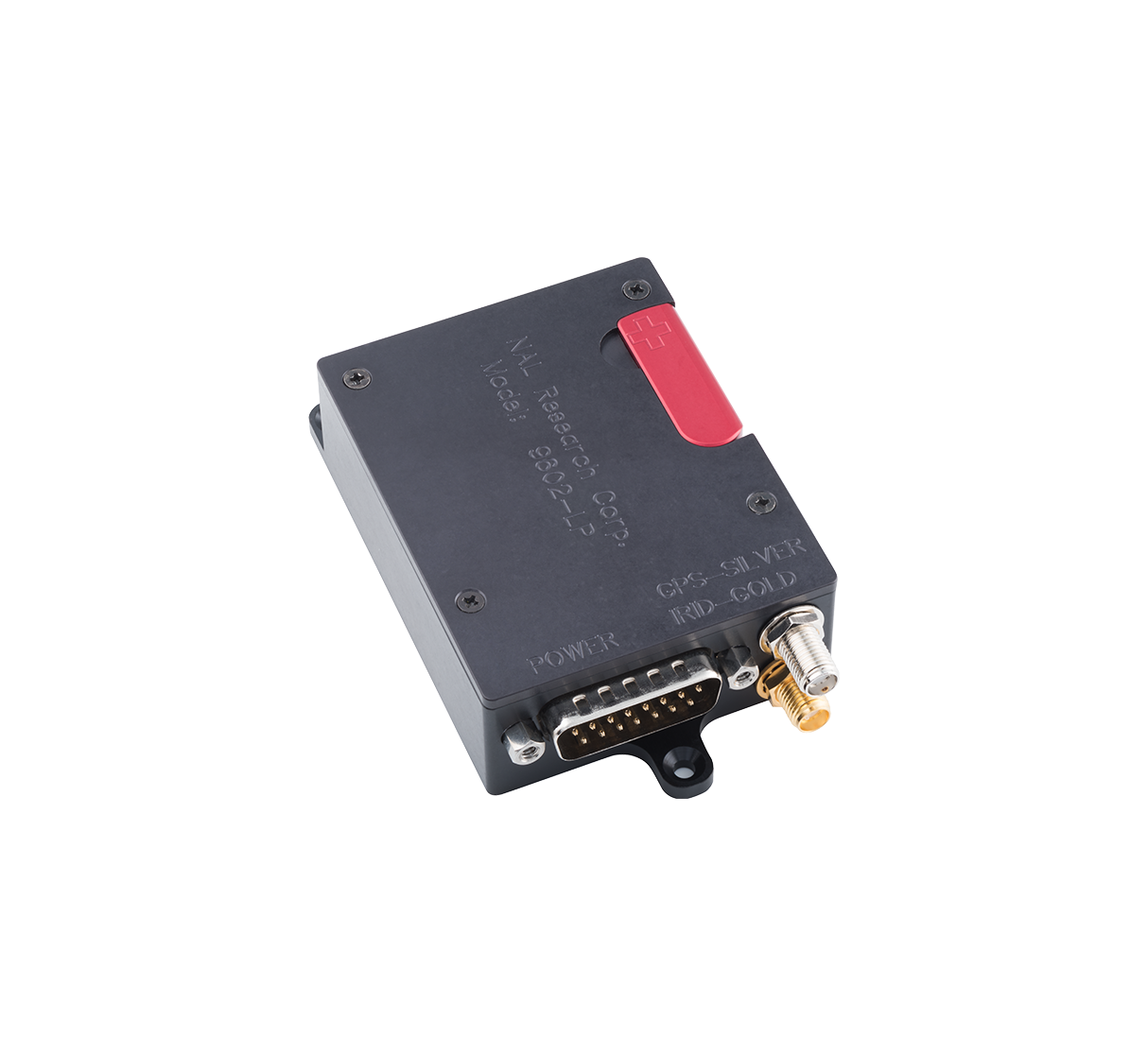

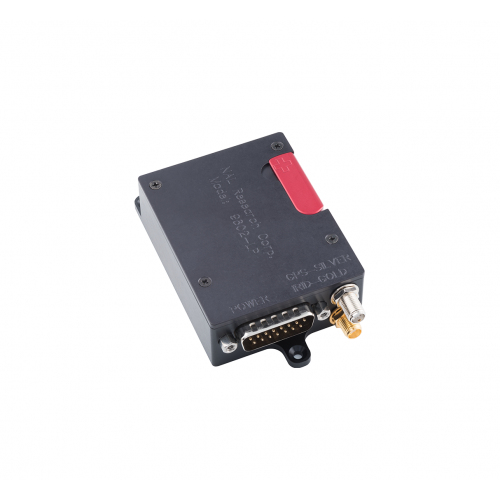

NAL’s Model 9602-LP Tracker is an ultra-low power consumption tracker designed for SBD data communication using the Iridium® satellite network. Model 9602-LP can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed interval ranging from once every four seconds to once every seven days. The interval can be changed remotely while the unit is in the field.
The 9602-LP measures 2.7” x 2.2” x 0.9”, weighs less than 5 ounces and can be attached to high value, un-tethered or non-powered assets such as shipping containers, barges, railcars, trailers, buoys or even to a person. It is also being used by the militaries to track environmentally demanding platforms including helicopters, fixed wing aircraft, unmanned aerial vehicles, rockets, high altitude balloons, ships, speedboats, ground vehicles and hand-emplaced and air-deployed remote sensors.
Features:
- Programmed for either DoD or commercial gateway
- Ultra-low power consumption
- 256-bit AES encryption
- Real-time two-way communications allowing remote configuration from a command center workstation
- Real-time GPS reporting
- Pole-to-pole global coverage
- Weighs less than 5 ounces
- Volume of 2.7” x 2.2” x 0.9”
- Easy to install and can be used as personnel tracking device
- Emergency alert switch
- LEDs displaying satellite status, and successful transmissions
- Integrated motion sensor
- Seven I/Os for sensor interfaces
- One serial for sensor interface
- 50-channel GPS receiver with -160 dBm sensitivity
