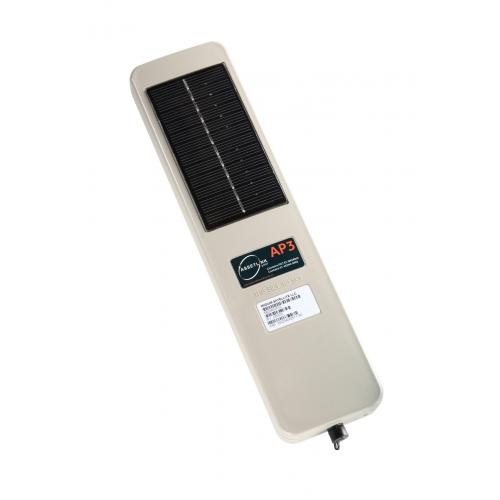

AssetPack Iridium Satellite IoT Tracker
Manufacturer: AssetLink
Price:
$499.00
The selected item is out of stock, please select a different item or combination
AssetLink’s AssetPack Satellite IoT Gateway Tracker
A solar-powered, low cost, low profile, untethered, rugged two-way global GPS satellite tracker and multi-sensor gateway
The AssetPack Satellite Gateway global satellite tracker is one of the most versatile, two-way asset tracking, GPS and sensor monitoring solutions ever built, especially designed for unpowered assets.
The AssetPack Satellite Gateway is a low profile, battery-powered, solar-recharging, rapidly reporting, fully self-contained, ruggedized, Over-The-Air (OTA) command capable, intrinsically safe, encrypted, geofence-enabled, memory-rich, GPS tracking and (optionally) cabled-sensor interface solution, that enables the reliable tracking and monitoring of any fixed or mobile asset anywhere in the world - ground, sea or air.
The AssetPack Satellite Gateway's solar+battery power configuration lasts the lifetime of most industrial equipment (10+ years), and is designed to survive long low sun conditions. The AssetPack Satellite Gateway leverages the 100% global coverage of the Iridium satellite constellation's reliable duplex connectivity.
The AssetPack Satellite Gateway is controlled OTA to change reporting schedules and behavior, control sensor endpoints, geofences, alarm thresholds, and deliver firmware upgrades. AssetLink offers zero-to-low-cost, rapid HW integration support to partners adding sensors. Data is delivered in many methods, most often directly into partners’ display portals, along with integrated APIs for OTA device configuration. All customers get access to AssetLink's AssetVisionTM web-based asset and device management portal with simple display/ mapping solution. Payload parsing and API documentation is available to integrators.
The AssetPack Satellite Gateway is a ready-to-deploy, global tracking solution that can be active and installed in 30 seconds. Contact us to start using the AssetPack Satellite Gateway today.
Features:
A solar-powered, low cost, low profile, untethered, rugged two-way global GPS satellite tracker and multi-sensor gateway
The AssetPack Satellite Gateway global satellite tracker is one of the most versatile, two-way asset tracking, GPS and sensor monitoring solutions ever built, especially designed for unpowered assets.
The AssetPack Satellite Gateway is a low profile, battery-powered, solar-recharging, rapidly reporting, fully self-contained, ruggedized, Over-The-Air (OTA) command capable, intrinsically safe, encrypted, geofence-enabled, memory-rich, GPS tracking and (optionally) cabled-sensor interface solution, that enables the reliable tracking and monitoring of any fixed or mobile asset anywhere in the world - ground, sea or air.
The AssetPack Satellite Gateway's solar+battery power configuration lasts the lifetime of most industrial equipment (10+ years), and is designed to survive long low sun conditions. The AssetPack Satellite Gateway leverages the 100% global coverage of the Iridium satellite constellation's reliable duplex connectivity.
The AssetPack Satellite Gateway is controlled OTA to change reporting schedules and behavior, control sensor endpoints, geofences, alarm thresholds, and deliver firmware upgrades. AssetLink offers zero-to-low-cost, rapid HW integration support to partners adding sensors. Data is delivered in many methods, most often directly into partners’ display portals, along with integrated APIs for OTA device configuration. All customers get access to AssetLink's AssetVisionTM web-based asset and device management portal with simple display/ mapping solution. Payload parsing and API documentation is available to integrators.
The AssetPack Satellite Gateway is a ready-to-deploy, global tracking solution that can be active and installed in 30 seconds. Contact us to start using the AssetPack Satellite Gateway today.
Features:
- 10 year service life with zero maintenance
- Solar-rechargeable battery with power save modes
- Easy installation – installs in minutes
- IP67 Rugged enclosure
- Intrinsically Safe for HAZLOC and HAZMAT
- True two-way, 100% global connectivity
- On-board geofencing for immediate arrival and departure alerts
- On-board memory for advanced sensor-based applications
- Over-the-air and local programming
- Configurable IOs – interface cable
- Published API for VAR Integrations – device and data integrations
- Built-in motion sensor
- Built-in temperature sensor
- Optional AES 256 Encryption
GSA pricing available at GSA Advantage
| Form Factor | |
| Enclosure | 12.4" x 3.2" x 1.15" |
| (31.50 x 8.1 x 2.9 cm) | |
| Weight | 18.9 oz (535 g) |
| GPS | |
| Location Accuracy | <5m 50="" cep="" td=""> |
| Acquisition & Tracking Sensitivity | -161.5dBM |
| Cold start (open sky) | 33s |
| Hot start (open sky) | <2s typical="" td=""> |
| Interfaces | |
| Harness Connector | 8 pin circular |
| Inputs/Outputs | Analog or Digital In/Out (2) |
| Serial | RS485 (1), MODBUS, CANBUS/J1939 |
| On/Off | Multi-function switch |
| Sensor Power Capability | 7-8VDC or higher depending on sensor |
| Communications | |
| Satellite Only | Iridium Short Burst Data 1616-1626.5 MHz |
| Time Domain Duplex TDMA/FDA | |
| Cellular Only | 4G LTE Cat-4/3G (North America) |
| 3G HPSA/2G (Global baseline) | |
| Hybrid | Cellular/ Satellite lowest cost routing |
| Power | |
| Battery | Solar Rechargeable Battery: |
| 5300 mAh, 7.2VDC | |
| Cycles | 100% DOD>1000 cycles |
| Shelf life (Charged) | >3 years (inventory mode) |
| Solar Panel | mono-crystalline silicon 6V, 1W |
| External Power | 10-18, up to 500 mA |
| Environmental | |
| Temperature (operating) | -40° C (-40° F) to +70° C (+158° F) |
| Humidity | 100% at 50° C, salt, fog per MIL STD 810 |
| Shock/Vibration | MIL STD 810 and SAE J145 |
| Water/Dust | IP67/NEMA6, waterproof, full immersion at 1m depth |
| Mounting options | Magnet Mount |
| VHB Tape | |
| Flat Plate Mount with Self-tapping Screws | |
| Rugged cage | |
| ATEX protective cage | |
| Accessories | Engine run time harness |
| Tamper alert trigger switch | |
| Temperature sensor | |
| Panic Button | |
| Magnetic door sensor | |
| Container security cable | |
| Multi-functional interface cable | |
| Protective cage | |
| ATEX cage |
