Detecting Activity Anywhere, Anytime

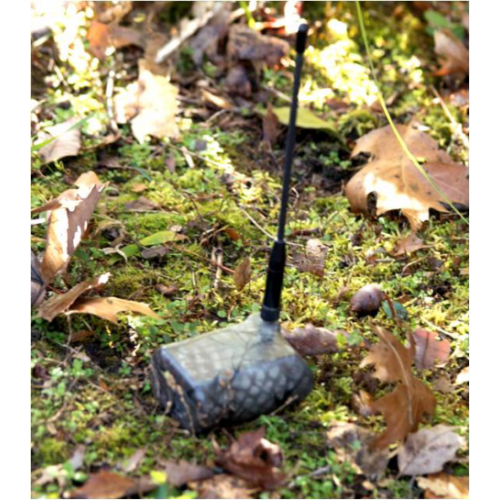

McQ RANGER® is a low cost, very small unattended ground cueing sensor. Detecting people, vehicles, aircraft, and watercraft in rural and urban areas to protect assets. The MCQ RANGER can be hand emplaced or air-dropped from any altitude to provide security and situation awareness. Ideal for border monitoring, VIP and critical infrastructure protection, law enforcement, and military use.
Industrial Monitoring and Surveillance
McQ RANGER® is an advanced ground surveillance sensor that detects and classifies personnel, vehicles, boats, and aircraft. Using state-of-the-art seismic, acoustic, and magnetic processing, it provides accurate, timely data and can cue cameras, radar, and other high-fidelity monitoring devices to create a multi-layered virtual fence. Ideal for border monitoring, VIP and critical infrastructure protection, law enforcement, and military use.
Built-in Sensors
- Seismic, Acoustic, Magnetic, and Tamper Sensors
Encryption
- AES-128 or AES-256 Encryption Available
Rugged Design
- IP67 Rugged Sealed Waterproof Enclosure
Battery Life
- Internal Lithium Battery wth 30 Days Life, Inductively Charged
Network
- Available in Terrestrial (900 MHz Spread Spectrum) and Satellite (Iridium Short Burst Data (SBD). DoD configuration (Iridium EMSS) avaialble.
Detection Modes
- Seismic People (Urban and Rural), Seismic Vehicle, Acoustic Human Speech and Aircraft (with Magnetic Target Direction of Travel)
GNSS Receiver
- GPS, Galileo, GLONASS

Mechanical
Dimensions (L x W x H)
80.8mm x 90.7mm x 34.3mm
Weight
285g
Environmental
Operating Temperature Range
-20 to 65 ℃
Ingress Protection
IP67
Battery
Battery Type
Internal Lithium Battery with 30+ days Life, Inductively Charged
Network
Satellite Network
Iridium Short Burst Data (SBD)
GNSS
GPS, Galileo, GLONASS
- Iridium Certification
