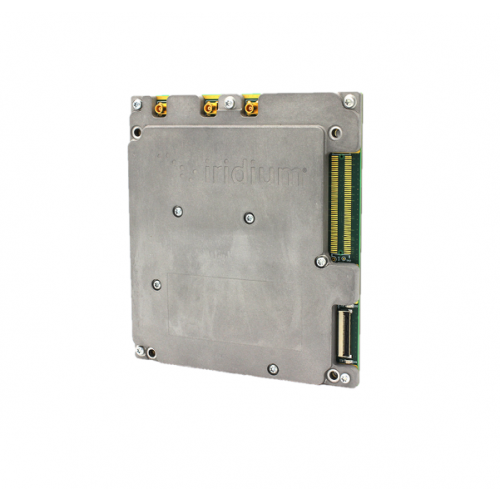

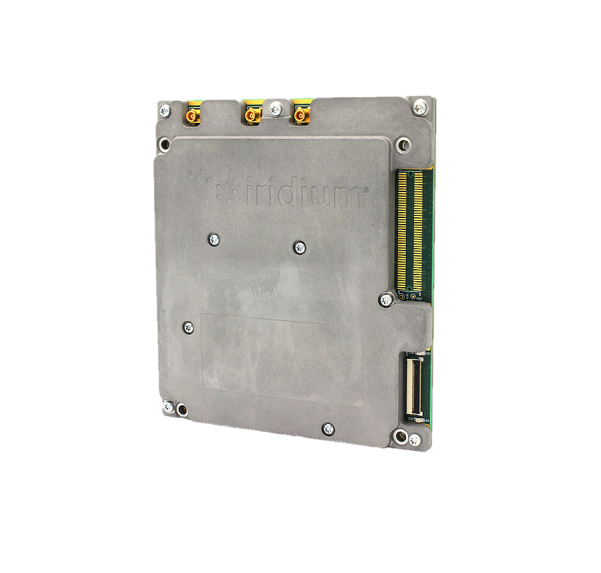

Optimized for the fastest L-Band speeds available, the Iridium Certus™ 9810 is the core digital and radio frequency (RF) module of the Iridium Certus satellite communications service for a variety of specialty broadband service classes. Integrated with Broadband Application Electronics (BAE), antenna (BAA), and appropriate amplifiers, the Iridium Certus™ 9810 provides multiple data speed rates, three simultaneous high-quality voice calls, and much more. Uniquely designed to support Iridium Certus® L-Band services and backed by unmatched network quality, this transceiver delivers cost-effective satellite voice and data communications for single or multi-channel communication platforms for maritime, land, and aviation markets.
Features
- Specialty Broadband Speeds up to 350 Kbps Transmit, 700 Kbps Receive
- Three (3) Simultaneous High-quality Iridium Certus® Voice Lines
- High-speed Streaming (up to 256 Kbps)
- Secondary Data Flows
- IP Data
- Iridium Certus® Messaging
Benefits
- Highly Mobile and Scalable
- Multi-Service Connectivity
- Truly Global Coverage
- Low Latency
- Uncompromising Reliability
- Optimal Signal Delivery
Technical Specifications
Mechanical
- Length: 150.6 mm / 5.93 in
- Width: 133.6 mm / 5.26 in
- Depth: 18.2 mm / 0.72 in
- Weight: 0.5 Kg / Less than 1 Lb
Environmental
- Temperature: -40ºC to +75ºC (Operating), -40ºC to +85ºC (Storage)
- Humidity: ≤ 93% RH
- Shock (withstand): 3 half sine pulse shocks in each axis with a peak amplitude of 10 g and pulse duration of 11 ms
RF Parameters
- Frequency range: 1616 to 1626 MHz
Power
- Input Voltage: 12 VDC +/- 10%
- DC Power Consumption: 12.6 W (monitor mode), 14.7 W (low data rate), 17.4 W (high data rate)
