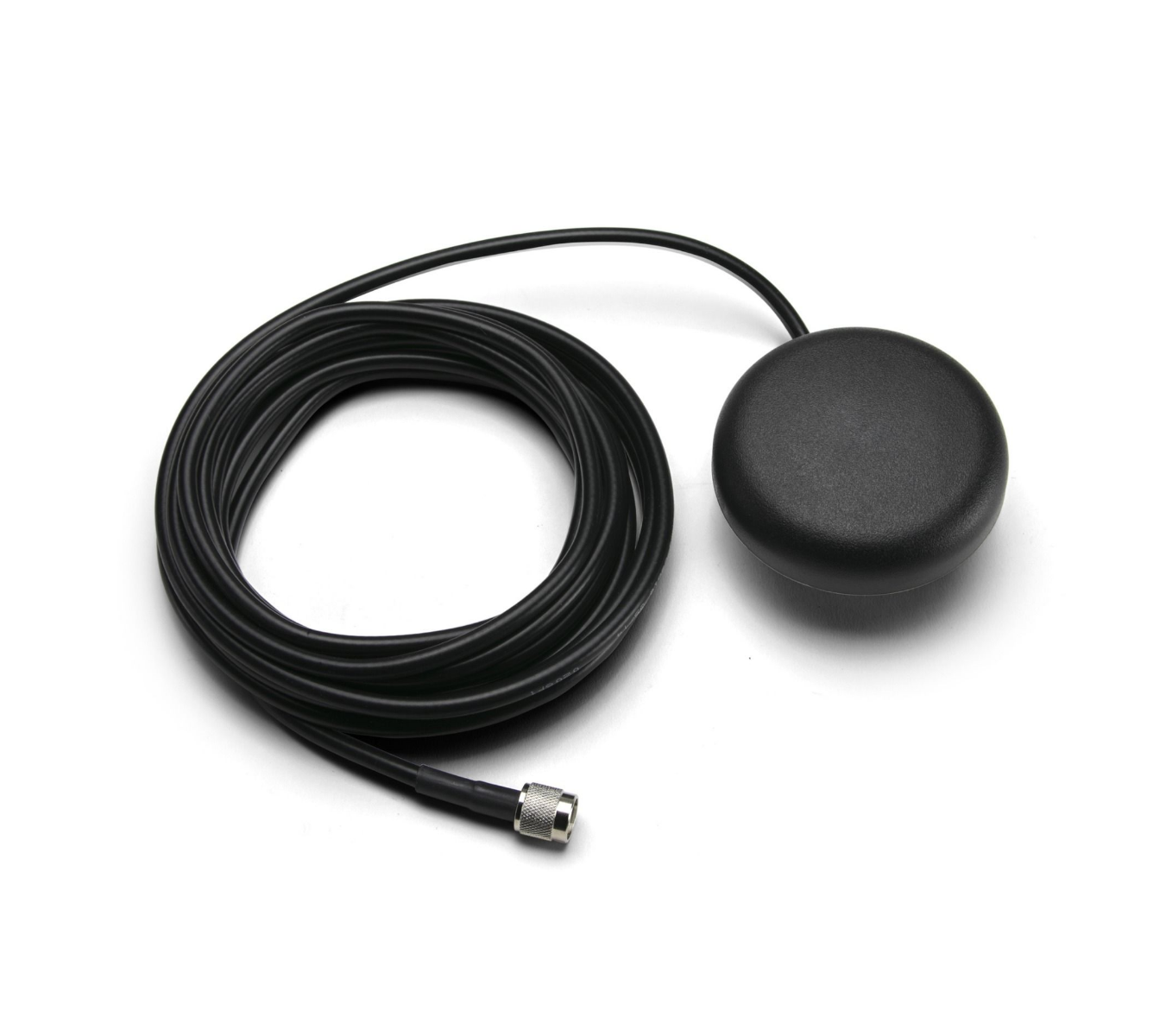

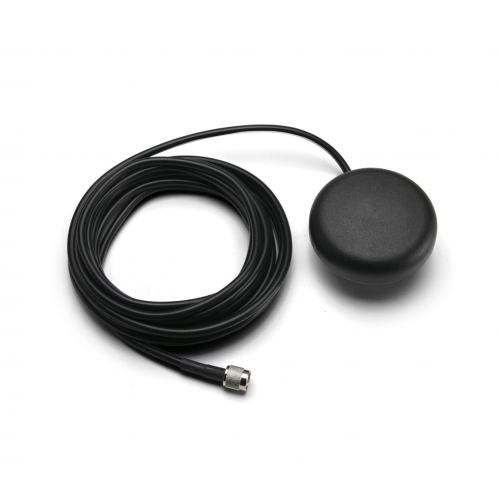

Iridium Fixed Mount Antenna

Price: $187.50

Purchase

Description

Fully compatible with all Motorola and Iridium satellite phones. Versatile, larger antenna that delivers improved reception over the Motorola Portable Auxiliary Antenna for Iridium satellite phones. The Fixed Mount requires a 1.6 cm (0.625 inch) diameter hole in the vehicle rooftop to secure the bolt antenna. (Requires 40 inches square metallic surface).

Specifications

Iridium Fixed Mount Antenna Specifications

  • Diameter: 8.9 cm (3.5 inches)
  • Height: 2.2 cm (.85 inches)
  • Weight: 405 grms (14.3 ounces)
  • Operating Temperature: -40°C to +70°C (-40°F to 158°F)
  • Connector: TNC Male
  • Impedance: 50 OHMS
  • VSWR: less than 2:1
  • Frequency: 1616 - 1625.5 MHz
  • Polarization: Right hand circular
  • Axial Ratio: 15 dB Max
  • 1.0 dB: Zenith to 40°
  • 0.5 dB: 40° to 70°
  • -0.5 dB: 70° to 80°
