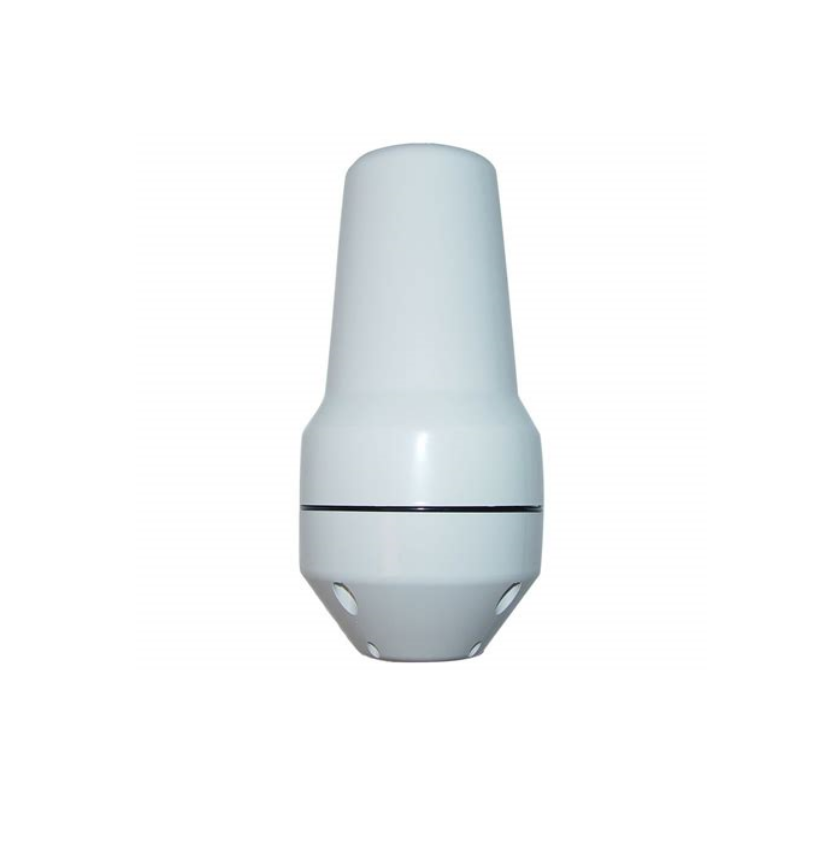

Iridium® Fixed Mast Antenna

Manufacturer: Iridium®

For use with Iridium®-based voice and data service.

Fully compatible with all Iridium satellite phones, the Iridium® Fixed Mast Antenna is a versatile, larger antenna that delivers improved reception over the Iridium® Portable Auxiliary Antenna. The Iridium fixed mast antenna delivers exceptional reception performance for permanent in-building or marine applications. Designed for free air operation (no ground plane).

Technical Specifications

Part Number

AT1621-142

Diameter

8.3 cm (3.3 in)

Height

18.7 cm (7.4 in)

Weight

181 g (6.3 oz)

Operating Temperature

-58°C to +85°C (-72.4°F to 185°F)

Connector

TNC-Female

Impedance

50 Ohms

VSWR

Less than 2:1

Frequency

1616 MHz to 1625.5 MHz

Polarization

Right hand circular

Axial Ratio

4 dB Max

Radiation Pattern

0.5 dB: Zenith to 40°
1.5dB: 40° to 70°
0.5dB: 70° to 80°
0.0 dB: 80° to 90°
-2.0 dB: 90° to 110°

Specifications

Diameter: 8.3 cm (3.3 inches)
Height: 18.7 cm (7.4 inches)
Weight: 181 grams (6.3 ounces)
Operating Temperature: -58°C to +85°C (-72.4°F to 185°F)
Connector: TNC Female
Impedance: 50 OHMS
VSWR: less than 2:1
Frequency: 1616 - 1625.5 MHz
Polarization: Right hand circular
Axial Ratio: 4 dB Max

Radiation Pattern

0.5 dB: Zenith to 40°
1.5 dB: 40° to 70°
0.5 dB: 70° to 80°
0.0 dB: 80° to 90°
-2.0 dB: 90° to 110°

Products You May Like

View Cart

Your Cart

Your Shopping Cart is Empty

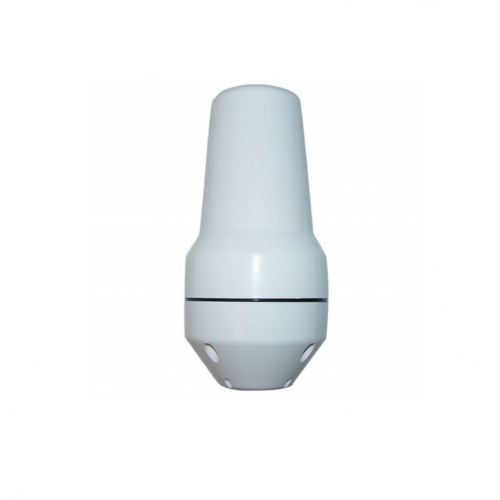

Iridium® Fixed Mast Antenna
