For use with Iridium Extreme®

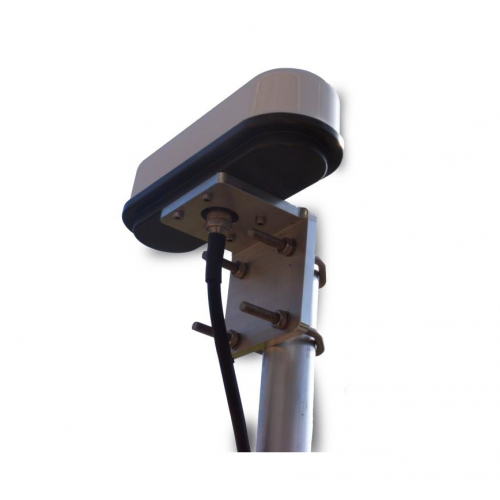

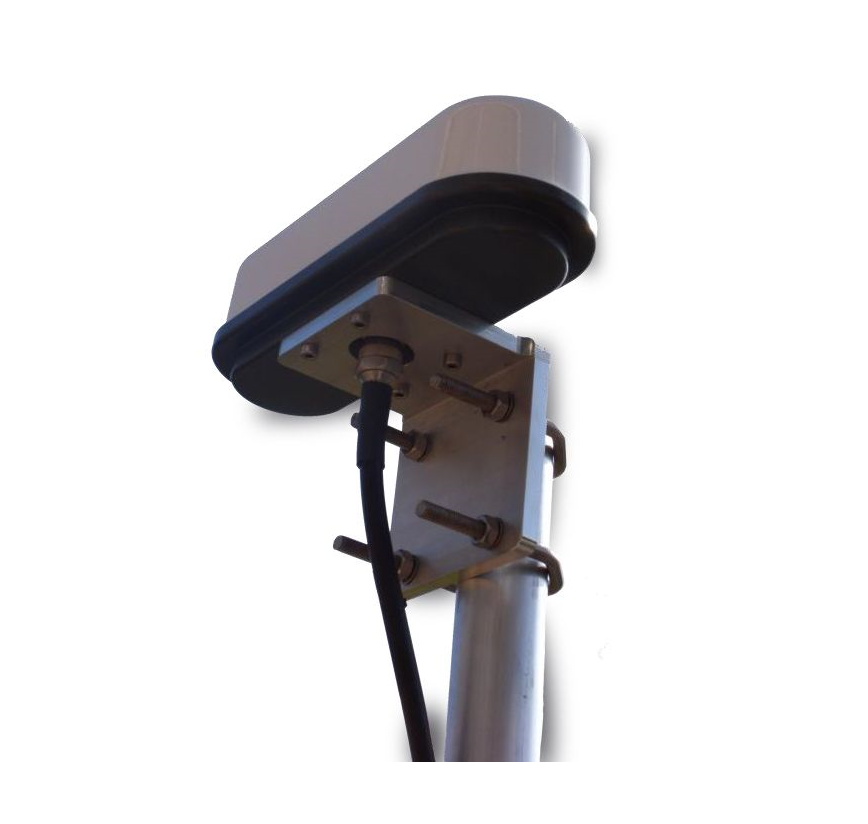

The Iridium AD511-2 Antenna is engineered to allow Iridium installations with up to 160 meters of coaxial RF cable, without any degradation of performance, compared to only 30 meters maximum for a standard passive antenna device.
These extended cable lengths offer the ability to provide Iridium installations on ships and land where previously an Iridium solution could not operate.
The AD511-2 antenna is supplied without coaxial cable as standard, but allows pre-set lengths between 27 and 160 meters subject to use of the correct, identified coaxial cable.
Technical Specifications
In the Box
Active Antenna head
Heavy Duty Alloy Mounting Bracket
Power Breakout Box
DC Connector Leads
0.5M Coaxial Lead
Power Supply included
Dimensions (L x W x H)
(Excl. Mounting Bracket)
240 mm x 85 mm x 70 mm
Weight
(Excl. Mounting Bracket)
0.8 kg
Operating Temperature
-40°C to +85°C (-40°F to 185°F)
Frequency
1610 MHz to 1630 MHz
Polarization
Right hand circular
Ceramic Filter Bandwidth
25 MHz (Rx)
Operating Voltage
+18 to 36 VDC (nominal 24 VDC)
