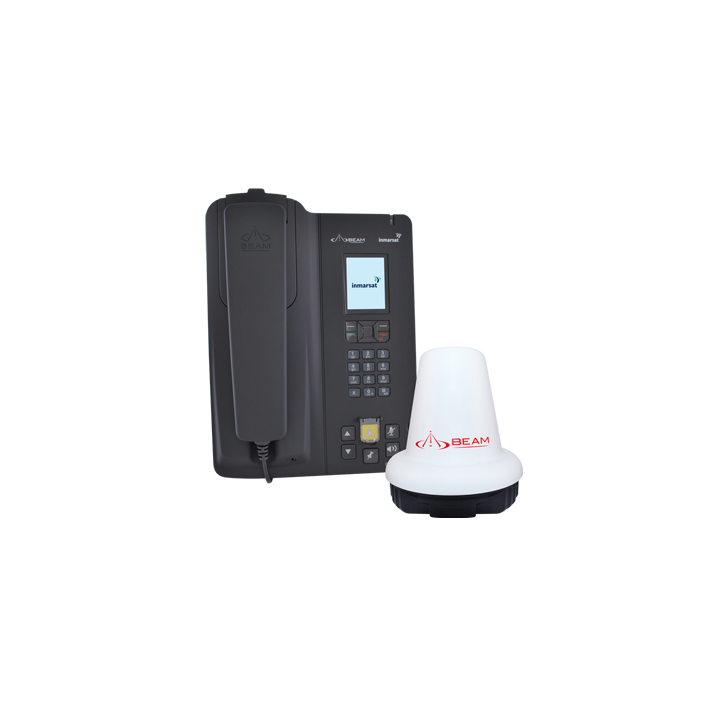

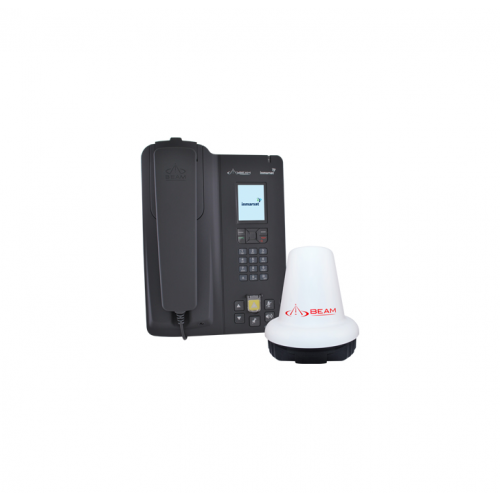

BEAM Oceana 800 Maritime FleetPhone
The compact and trim Oceana 800 terminal from BEAM Communications is perfect for maritime applications to provide simple access to reliable Inmarsat Fleet voice and data communication services. Up to five analog corded or cordless phones may be connected at once via the RJ11/POTS interface, which also allows integration to a PABX system.
Oceana 800 provides data through the USB interface and is protected inside a high quality IP53 rated enclosure which is rainproof when wall-mounted, and may also be mounted to a desk. This unit allows intelligent tracking and instant message reporting via SMS with its integrated GPS engine as well as integrated Bluetooth capability for voice communications as well as intuitive LCD color display. In addition, there is a secondary SIM socket to override the internal SIM, an active privacy handset as well as an in-built hands-free speakerphone.
Designed to operate with the Inmarsat Fleet service, the Oceana 800 includes an active marine grade antenna system making it a complete communications ecosystem that is ready when you are.
Standby 0.22A 3.2W
Transmit (RJ11/POTS) 0.58A 8.7W
Transmit (Speakerphone) 0.53A 7.9W
Sleep Mode 5mA 75mW
Peak Current 1.7A 26W
GPS Module (internal)
Update Rate 1Hz
Accuracy Position 2.5mCEP, Velocity 0.1m/s,
Acquisition TTFF Timing 300ns
Sensitivity Cold 29sec, Hot 1sec
Operational Limits -161 dBm
Physical Specifications
Dimensions 241 x 185 x 93 (mm) 9.49 x 7.28 x 3.66 (inches)
Weight OC800 only 1.27 kg 2.80 lbs
Operating Range -20°C to +55°C -4°F to +131°F
Storage -30°C to +80°C -22°F to +176°F
Humidity 95%
Transceiver
Inmarsat-4 Satellite
GMR-2+ Frequency Bands
Tx Operating Frequency 1626.5 - 1660.5 MHz
Rx Operating Frequency 1518 – 1565 MHz (Inmarsat) 1565.19 – 1585.65 MHz (GPS)
RF Output Impedance 50 Ohms
Carrier frequencies Channel 0 = 1626.525 MHz Channel 169 = 1660.475 MHz
TX Modulation GMSK
RX Modulation OQPSK
1 x Alarm Loop Bare wire – "Normally Closed" Loop IN to OUT
Track Inbuilt - single key press
Connectors / Interfaces
POTS/RJ11 RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configure
Inmarsat Antenna frequency and adaptive impedance
GPS Antenna TNC-Female SMA-Female
10-32V DC 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port USB Mini B
Speakerphone In-built speaker/microphone
Certifications
Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions - limited ingress permitted.
Kit Contents
Oceana 800 Terminal
ISD710 Maritime Antenna (Active)
Privacy Handset
1 x spring cup (attached to terminal)
1 x Springless Cup
110-240V AC Plug Pack, 15V DC Out
10-32V DC Power Cable
USB Cable
2m Alert wiring loop
Wall mounting plate
User Manual
Quick Start Guide
Installation Guide
