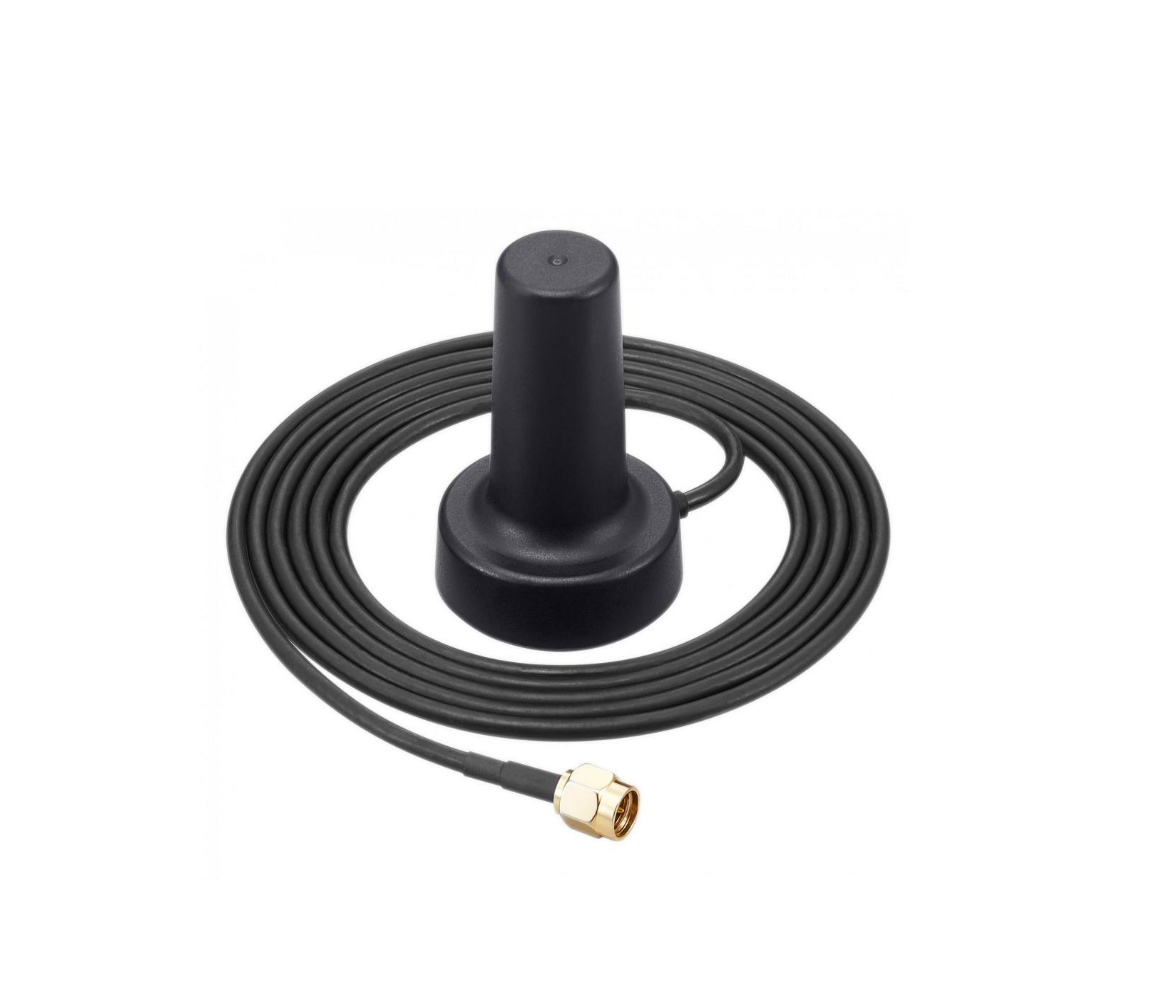

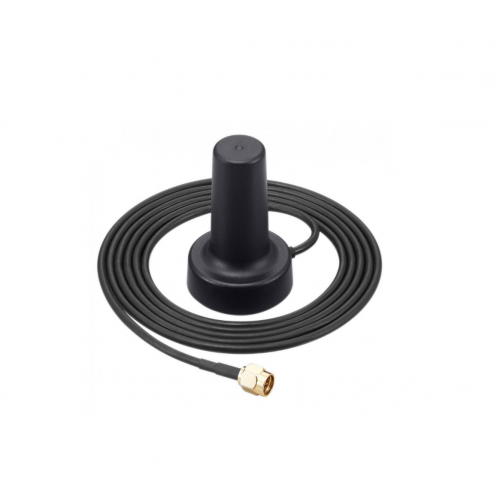

Iridium Portable Auxiliary Antenna

Price: $110.00

Purchase

Description

The Iridium Portable Auxiliary Antenna is fully compatible with all Motorola and Iridium satellite phones.

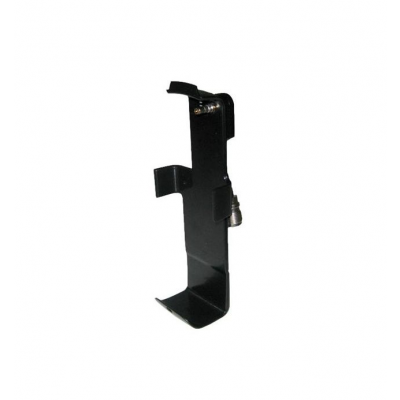

The Iridium Portable Auxiliary Antenna has a convenient magnetic mount, this compact, pocket-sized antenna travels with you from car to car, providing improved reception. Attach the Iridium Portable Auxiliary Antenna to the any of the Iridium satellite phones using the Antenna Adapter, or to the Portable Dock or other Iridium solution. The ceramic patch antenna offers reliable coverage in a magnetic mount package. Must have large metallic surface to mount antenna (40 inches square).

Specifications

Specifications

  • Diameter: 5.5 cm (2.2 inches)
  • Height: 1.4 cm (0.6 inches)
  • Weight: 83.6 grams (6.4 ounces)
  • Operating Temperature: -40�C to +70�C (-40�F to 158�F)
  • Connector: TNC Male
  • Impedance: 50 OHMS
  • VSWR: less than 2:1
  • Frequency: 1616 - 1625.5 MHz
  • Polarization: Right hand circular
  • Axial Ratio: 4 dB Max

Radiation Pattern

  • 0.5 dB: Zenith to 20�
  • 0.0 dB: 20� to 40�
  • -0.5 dB: 40� to 60�
  • -3.0 dB: 60� to 80�
