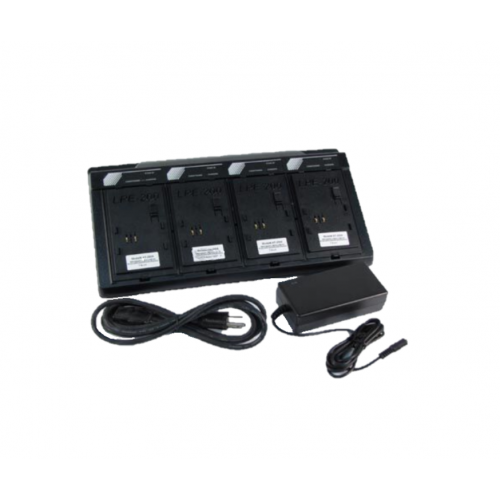

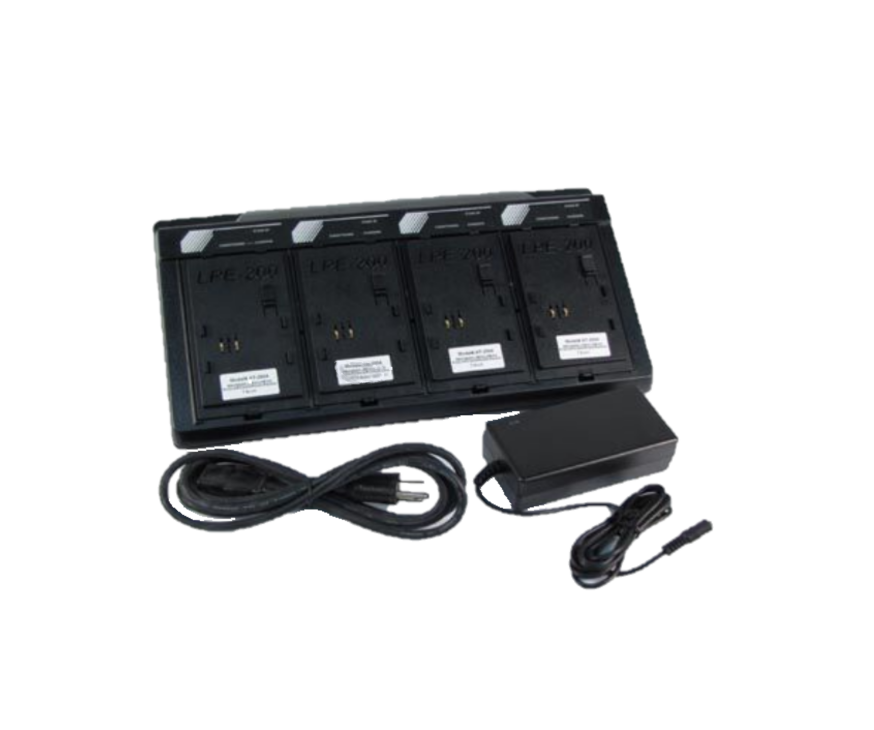

For use with Iridium® 9555 and Iridium Extreme®
The SatStation Four Bay Charger provides the convenience of charging multiple batteries at once, all while cutting down on the number of cables and outlets used. A must-have accessory for any individual with multiple Iridium® phones in use.
SatStation Four Bay Charger Features:
- Capable of conditioning and rapid-charging Iridium® batteries in the same unit, all in a single process without ever draining the battery.
- Suitable to operate at the office (AC), as well as in a vehicle (DC).
- Ability to switch to maintenance mode once the battery is fully charged. In maintenance mode, the battery is kept at peak condition for as long as it's left in the unit, all without overcharging or overheating.
- Available as base-only, with Iridium Extreme® charging plates or Iridium® 9555 charging plates.
- Includes Power Supply.
- Batteries not included.
Technical Specifications
Part Number
SAT-AT4000A-LI-4.2V
SAT-CHG4-9555
SAT-CHG4-9575
For use with:
Iridium Extreme® and Iridium® 9555
Dimensions
14 in. x 7.5 in. x 2 in.
Operating Temperature
-20° C to +50° C
Storage Temperature
-10° C to +70° C
Relative Humidity
95% maximum non-condensing
Input Plug
2.5mm center positive socket
Input Electrical (To Charger)
12V DC ±20%, 800 mAh ±10%
Switching Power Circuit
On board to minimize heat generation
Charging System (Battery Alone)
High-current charge with regularly-spaced negative pulses
Dual Power Source AC/DC
Operate indistinctively from AC and/or DC
Transformer Power
Input: 120V AC, 60 Hz 15W
Output: 12V DC, 800 mAh
Cord
6ft 22 AWG x 2C, 90C
