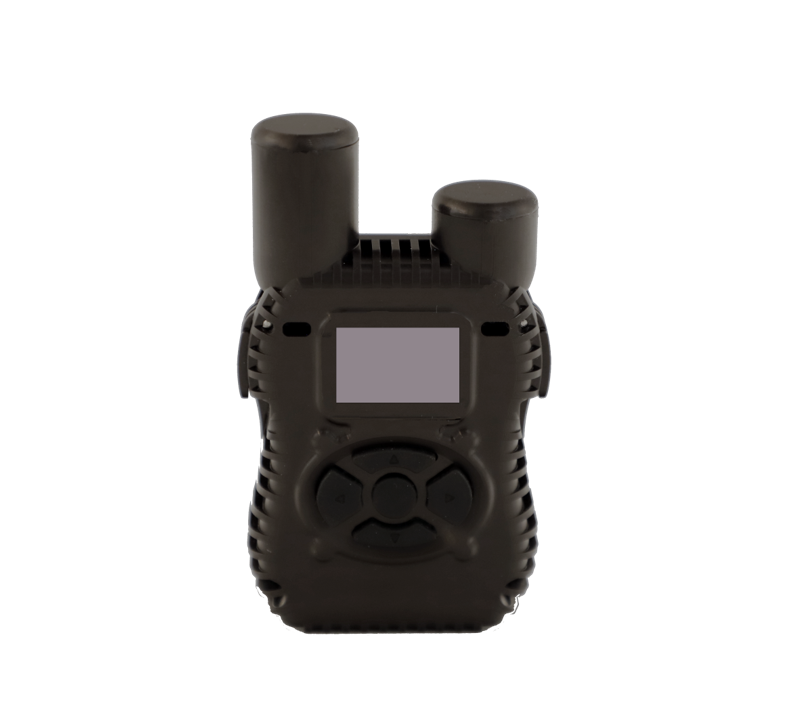

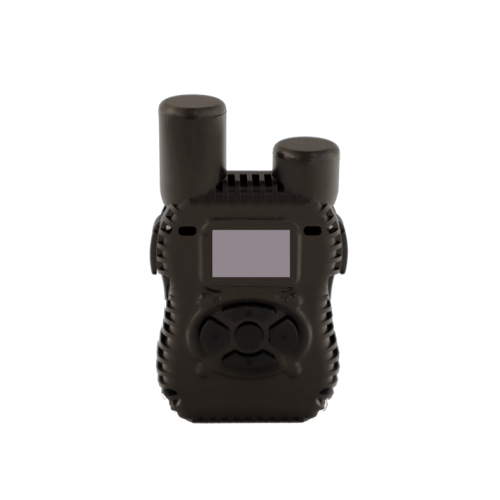

NAL Shout Nano 100

Low-Cost, Handheld/Body-Worn Tracking and Messaging Device
Supply your assets with the new, upgraded gear to make your next mission a success. Utilize the Iridium® low-Earth orbit (LEO) satellite mesh network with the SHOUT nano-100, allowing you to connect, communicate, and track your assets anytime and anywhere in the world.
Low-cost, Handheld, Body-Worn Tracking & Messaging Device
The SHOUT nano 100 is a handheld or body-worn narrowband SATCOM device with embedded Iridium® and GPS antennas. The SHOUT nano 100 can be connected to a smartphone via Bluetooth for two-way messaging, including free text, canned messages, and a combination. It can send a position report every hour for up to 2,000+ reports. The device can periodically wake from sleep to send its position report to a command center. A dual-button 911 feature is used to send immediate emergency/alert notifications to that command center or directly to a designated point of contact. Data packaged in either standard or 256-bit AES encrypted format, or upon request, data can also be sent in encrypted PECOS formats to include Brevity codes.
The SHOUT nano 100’s operating parameters are set via Bluetooth using the SHOUT app for smartphones, or by connecting the device via USB-C and downloading SatTerm on your computer.
Hardware
- Integrated Motion Sensor
- AC Adapter and USB-C Port
- 72-Channel GPS Receiver with -160 dBm sensitivity
Network
- 911 Alert Capabilities
- Programmed for either DoD or commercial Iridium® Gateways
Capabilities
- Automatic Location Reports (+2000 Reports)
- Data Logging
- 911 Alert Capabilities
User Experience
- Bluetooth
- USB Interface
Physical
- Small size, low-profile
- Handheld or Body-Worn
- Ruggedized, IP67-Rated
Security
- Optional AES-256 encryption
Battery Life
- Ultra-low power consumption
Messaging
- Free-text, canned messages or combined free-text and canned messages via smartphone
Global Coverage
- Real-time, pole-to-pole coverage

Mechanical
Dimensions (L x W x H)
76 mm x 46 mm x 18 mm
(3.3" x 1.8" x 0.7")
Weight
85 g
Environmental
Operating Temperature Range
-20℃ to +60 ℃
Operating Humidity Range
< 75% RH
Durability Standard
MIL-STD 810G
MIL-STD-461G
Rapid Decompression
Explosive Atmosphere
Ingress Protection
IP67
Battery
Battery Type
Internal 3.7 V Li-ion 2000 mAh
Network
Supported Networks
Iridium Gateway (commercial)
DoD Gateway
Operating Frequency
1616.0 to 1626.5 MHz
GPS Frequency
1575.42 MHz (L1 Carrier)
User Experience
Software Interface
AT Commands through USB
USB Input
USB-C, USB 2.0
5 VDC, up to 1 A
