NAL QUICKSILVER®
Get Global Access and Range

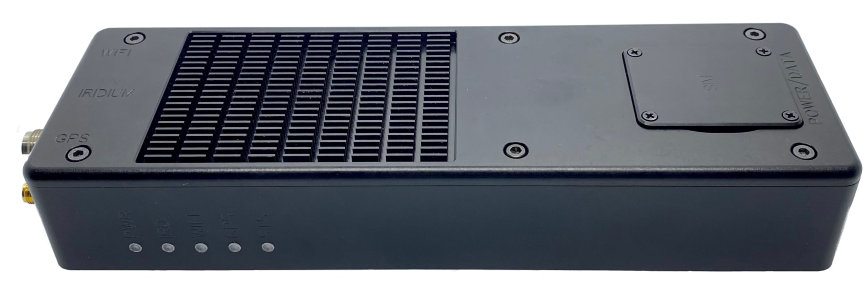

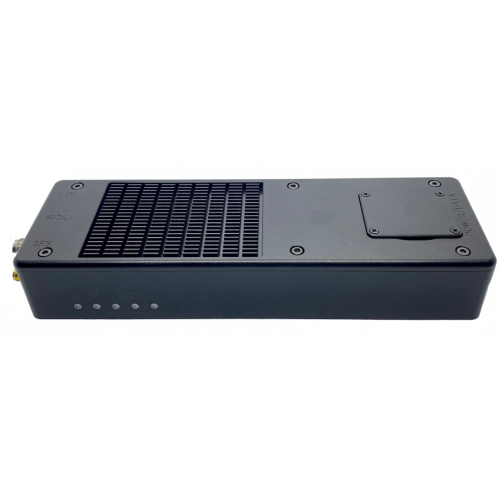

NAL Research Corporation’s Quicksilver QS-100 terminal delivers the latest Iridium Certus® 100 Midband service in a compact, rugged package for globally available on-the-move (OTM), over-the-horizon (OTH), and beyond-line-of-sight (BLOS) connectivity. Suitable for both standalone usage and embedded platform integration, it employs a small detachable passive, low-gain, omni-directional antenna, simplifying low-profile and low-visibility installations. The Quicksilver QS-100’s flexible integration architecture makes it the ideal upgrade from narrowband solutions to provide midband throughput performance for file transfer, command and control (C2), telemetry, diagnostic monitoring, and other data transport applications from anywhere in the world.
Features
With up to 22 kbps Uplink and 88 kbps Downlink speeds, the NAL Quicksilver provides a reliable, secure connection. Designed for teams, this general-purpose device supports user-specified requirements utilizing multiple Application and Transport Layer protocols (FTP and SFTP, HTTP and HTTPS, TCP).
Easy Install
- 5 minutes from out-of-the-box to on-air. A Data Adapter is included in the Install Kit to breakout the DB-25 Connector (into RJ45 Ethernet, DB-9 Serial, and power) for easy setup and maintenance
Industry Standard COTS Connectors
- IP67-rated enclosure and connectors – no military-style, specialized, expensive connectors and cables required
Small Form-Factor
- General purpose, small form-factor terminal, and antenna enable flexible integration for on-the-move (OTM) and stationary data communications in demanding environments
Serial Interface
- RS-232 serial interface enabling “drop-in” replacement for narrowband serial-based equipment utilizing AT commands (coming soon)
Supports Popular Applications
- Provides access to popular end-to-end encrypted messaging and voice apps (e.g., Signal and WhatsApp) for protected and secure communications and Command and Control (C2)
Web-Based Management
- Intuitive web browser-based management GUI is compatible with Chrome, Firefox, Edge, Internet Explorer, and Safari on multiple operating systems (Windows, Linux, iOS, and Android)
Rugged Hardware
- Anodized aluminum chassis for performance in demanding physical and EMI environments
Thoughtful Design

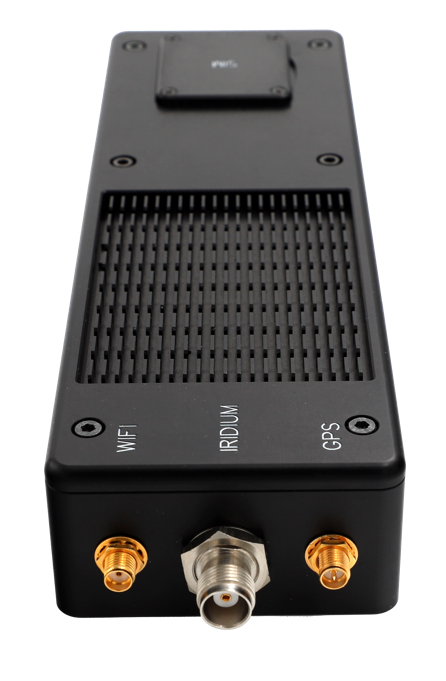

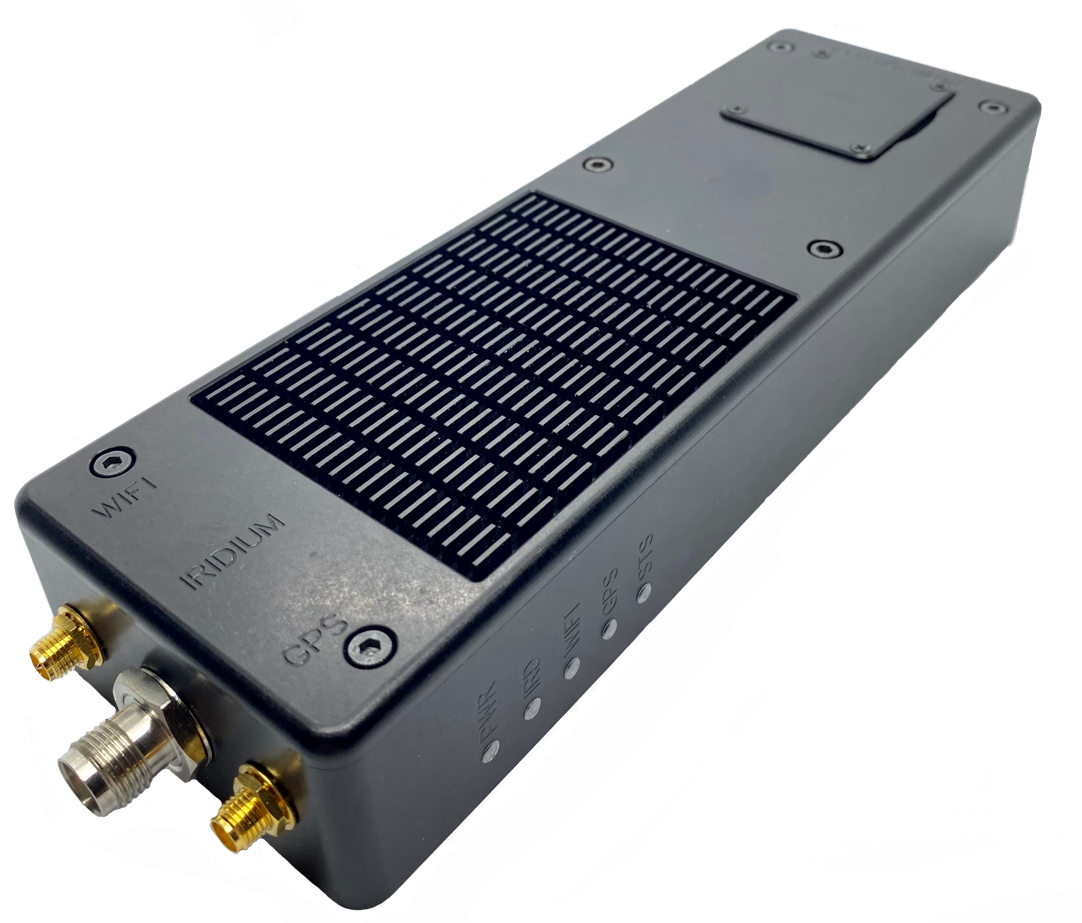

- Features DB-25, TNC, and SMA connectors, multiple GPIO pins, an external ON/OFF, IP67-rated enclosure and connectors, and wide voltage input (10 – 32 VDC) supporting diverse platform installations
Individual User Profiles
- Separate Admin and User profiles with unique usernames/passwords to support security requirements
Interface Modes
- Software API for customized integration and control available and alternate AT-Command style interface mode enables fast integration into systems with legacy serial-based equipment (coming soon)
Mechanical
Dimensions (L x W x H)
213mm x 68mm x 36mm
Weight
743 g
Environmental
Operating Temperature Range
-20 to +50 ℃
Operating Voltage
10-32 VDC
Durability Standard
IP67
Antenna
Type
All Options: Passive, Omni-Directional, Helical
Data Speeds
Data Speed Uplink (UL)
22 Kbps
Data Speed Downlink (DL)
88 Kbps
Wi-Fi
Wi-Fi Enabled
Yes
Interface
Ethernet (100 Base - T), RS-232 Serial
- AOLA Letter Granted by Iridium
- Iridium Certified
- IP67 Compliant
- FCC Certification (Pending)
- ISED Certification (Pending)
- CE Certification (Pending)
