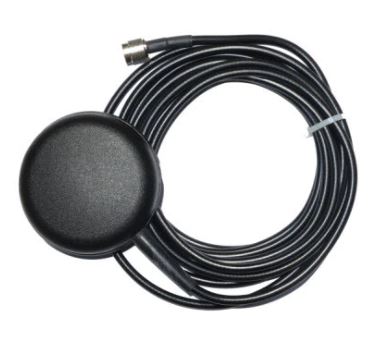

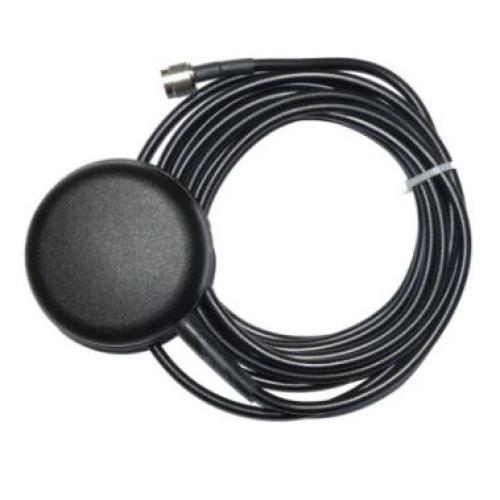

Iridium Mobile Magnetic Antenna
; "Iridium Mobile Magnetic Antenna")
Price: $187.50
Purchase
Description
Fully compatible with all Motorola and Iridium satellite phones. The Iridium Mobile Magnetic Antenna is a versatile, larger antenna that delivers improved reception over the Motorola Portable Auxiliary Antenna for Iridium satellite phones. The Magnetic Mount uses magnetic mounts to secure antenna to large metallic surface such as a vehicle rooftop (also requires 40 inches square metallic surface).
Specifications
Specifications
- Diameter: 8.9 cm (3.5 inches)
- Height: 2.2 cm (.85 inches)
- Weight: 405 grms (14.3 ounces)
- Operating Temperature: -40°C to +70°C (-40°F to 158°F)
- Connector: TNC Male
- Impedance: 50 OHMS
- VSWR: less than 2:1
- Frequency: 1616 - 1625.5 MHz
- Polarization: Right hand circular
- Axial Ratio: 15 dB Max
- 1.0 dB: Zenith to 40°
- 0.5 dB: 40° to 70°
- -0.5 dB: 70° to 80°
