Iridium Edge®
The Iridium Edge®
Now Available!

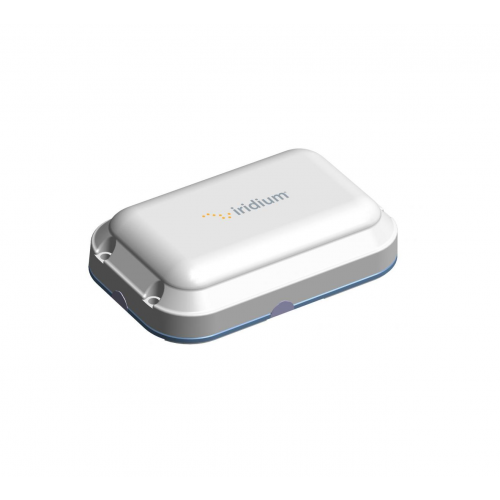

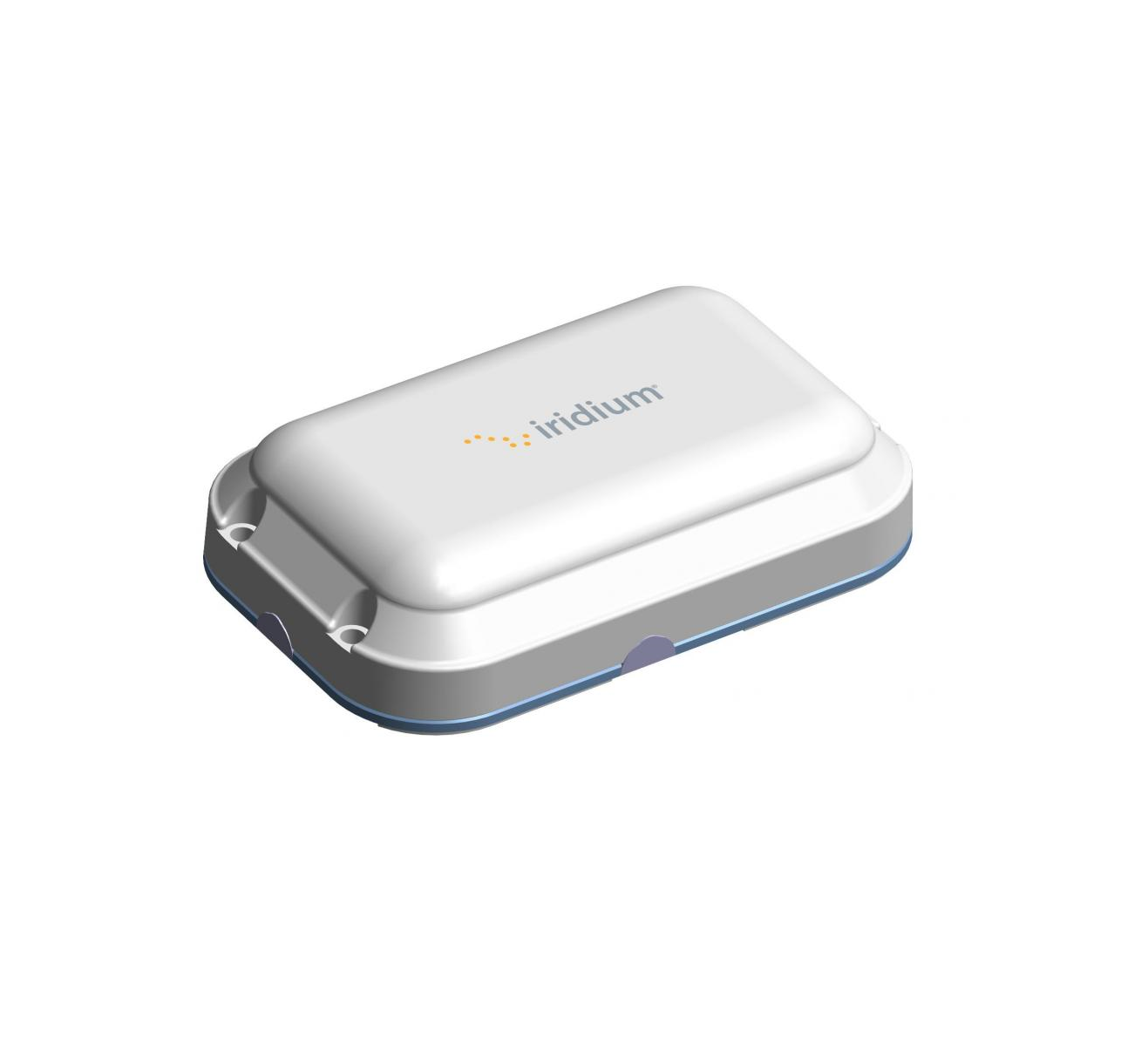

Enable you to leverage the existing terrestrial-based solutions for fleet management, telematics, safety and other remote monitoring applications through Iridium Edge®, an off-the-shelf, reliable satellite communications device that complements existing cellular solutions to create dual-mode connectivity for the most remote and inaccessible areas of the world.
Fast time-to-market is a critical component in today’s highly competitive communications environment. Iridium Edge® is a turnkey, environmentally sealed, rugged hardware device that reduces the cost and complications associated with hardware development, manufacture and certification of satellite-specific terminal.
Key Features of Iridium Edge®:
- Hardware-ready device for simple, low risk integration
- Low-cost device for affordable customer adoption
- Satellite add-on for truly global coverage
- Off-the-shelf availability for quick time-to-market
- Robust power supply for industrial installations
- Environmentally sealed for harsh conditions
- 180° line of sight for compromised, partially blocked locations
- Iridium Short Burst Data℠ (SBD℠) modem for Iridium's superior network advantages
Key Markets:
- Fleet Management
- Remote Monitoring
- SCADA
- Asset Tracking
- Maritime
TECHNICAL SPECIFICATIONS
Network:
- Message Size: 240 bytes (Receive), 370 bytes (Transmit)
- Frequency: 1616 – 1626.5 MHz
Mechanical:
- Dimensions: 130 mm (L) x 80 mm (W) x 30 mm (H)
- Ingress Protection: IP 67
- Side and bottom cable exits
Environmental:
- Operating temperature range: -40C to 85C
- Storage temperature range: -40C to 85C
Interfaces:
- RS232 AT command interface
- On/Off control lines
Power:
- Power Supply ( 9-32V), SAE J1455 Load dump protected
- Reverse Polarity Protection
- Maximum Power: 1.6W (peak for short transmit burst)
- Low Power Modes: < 100uA
Certifications:
- Iridium® satellite network certification
- FCC, IC, CE, Australia approvals
- RoHS compliant
